China Specialized Manufacturer Rotary Shear Cut to Length Line Machine Ercl-2X1600
Basic InfoModel NO.: ERCL-2X1600 Uncoiling Weight: 20t Certificate: CE, ISO9001 Production Period: 5 Months Control: PLC Trademark: Eagle Specification: CE, ISO9001 Origin: Jinan, Shandong HS Code: 8462312000

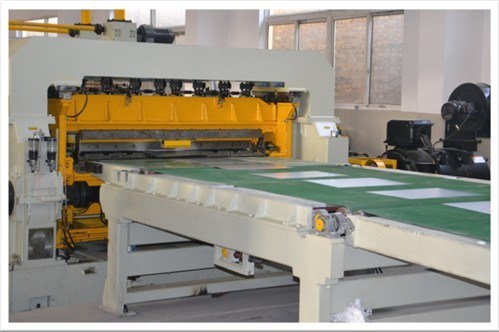

Product DescriptionRotary shear line ERCL series

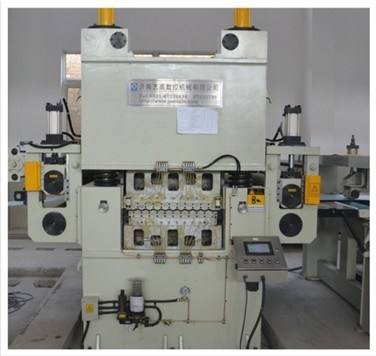

This rotary shear is suitable for hot rolling carbon steel, tinplates, stainless steel, and other metal with coated surfaces. It is widely used in home appliances, automobiles, hardware, steel products and other industries. This rotary shear adopts 6H leveler to carry out continuous leveling of the panels. With two stacking devices, this rotary shear has a high working efficiency. It is capable of shearing 150 plates per minute, with a maximum running speed of 80 meters per minute. With 6H leveler, the processed plates are smooth and free of scrapes.

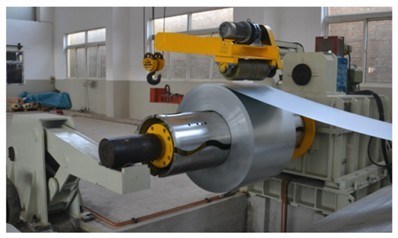

This ERCL rotary shear usually consists of a uncoiler, a leveler, meter encoder, feed roll, rotary shear, conveyor belt and stacker. Application in cold rolled carbon steel, silicon Steel, tinplate, Stainless steel and pre-painted material etc.
Structure of Rotary Shear: Dual Rotary Type
1. The cutting part of our rotary shear is comprised of an upper blade holder and a lower blade holder. The two slide holders carry out synchronous rotation and are connected to a linear guide rail. When the crankshaft rotates, the cutting station cuts and conveys the material.
2. The upper blade is of rectangular shape and the lower>Model/ Items
Shearing Accuracy (mm)
Max. Line Speed m/min
Max. Cutting Speed (spm)
Coil Weight (ton)
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Jinan Eagle CNC Machine Co., Ltd (briefly JEM), located in Jinan city, Shandong Province, China, was founded in 2003. It is mainly engaged in developing and manufacturing of Cut to Length Line, Slitting Line, Rotary Shear, Slitting and Cut to Length Combined Line, Leveling Machine, Tension Leveler and so>Welcome you to our factory!
