China 0.3-3.0X1500 Cut to Length Line China Manufacturer

China 0.3-3.0X1500 Cut to Length Line

Basic Info

Model NO.: 0.3-3.0X1500

Color: Blue and Yellow

Trademark: SAIBO

Transport Package: Sea Packing

Specification: CE SGS

Origin: China

HS Code: 84552210

Product Description

  1. Other parameters:
  • power: 380V/50Hz/3Ph (Customized)
  • line speed: 0-20m/min
  • the direction of production line: from right to left (operation panel face the machines)
  • area of the whole production line(about) 15m(L)X6m(W)
  • people of operation: 1 technician and 1 general workers
  • color of the machines: grass green (Customized)

NoSpecification of the material1
Suitable MaterialGalvanized steel up to 235Mpa2
Width of the raw materialAccording the profile3Thickness0.3-3.0mm
Details:
1: Material of coil: Carbon steel
2: Thickness of the steel: 0.3-3.0mm
3: Coil width: 600mm-2500mm
4: ID of the coil: Φ 508mmΦ 610mmΦ 760mm
5: The max OD: Φ 2000mm
6: Max weight of the coil: 20000Kgs
7. δ 6?2000 mechanism shearing machine, motor power: 7.5KW
8. The maximal coil width: 2500mm
9. The maximal thickness: 10mm
10. Number of stroke: 22times/minute

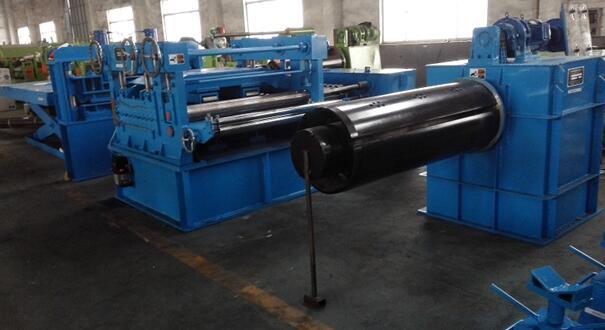

Cut To Length Line
