China 0.5-3mm Slitting Line for Steel Coil Sheet

Basic Info

• Model NO.: BE
• Automatic Production Line: Cutting Operation
• Automation: Automation
• Rhythm: Flow Production Line
• Model Number: Be
• Warranty: All Life,1>
• Transmission Type: Rigid
• Certification: ISO, CE
• Flexible Production: Intelligent Manufacturing
• Production Scope: Product Line
• Brand Name: Besco
• After-Sales Service Provided: Engineers Available to Service Machinery Overseas
• Max. Cutting Thickness: 6mm
• Power: Hydraulic
• Trademark: Besco
• Specification: CE, ISQ
• HS Code: 84623990

Product Description

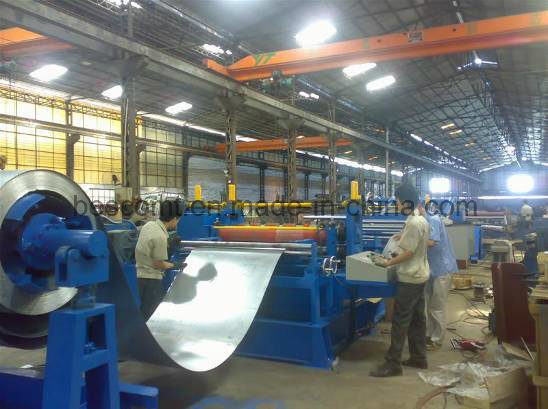

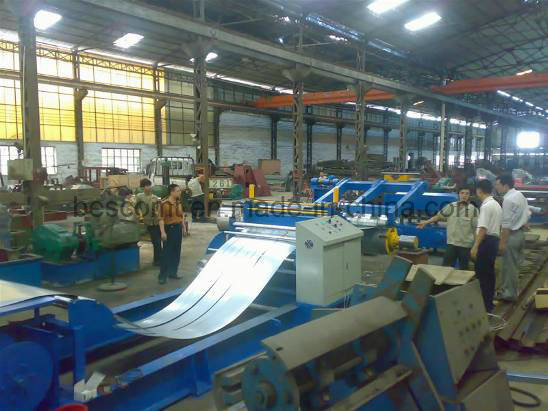

0.5-3mm Slitting Line for Steel Coil Sheet
A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.
Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

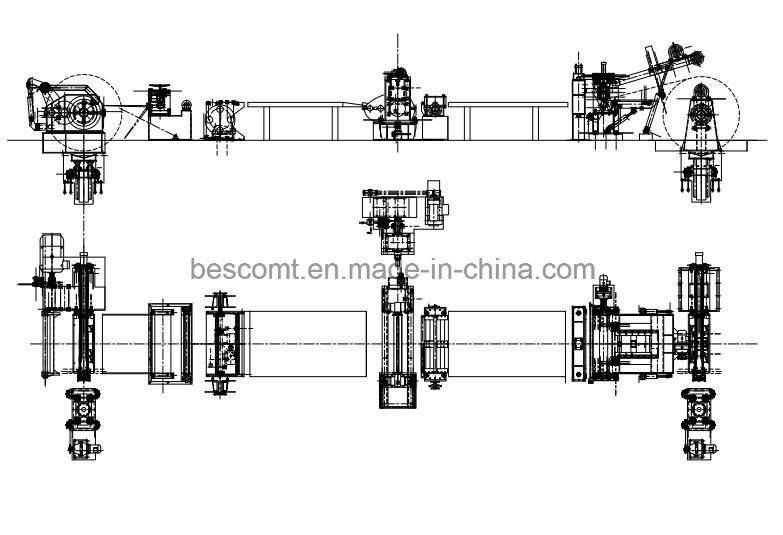

A slitting line is composed of:

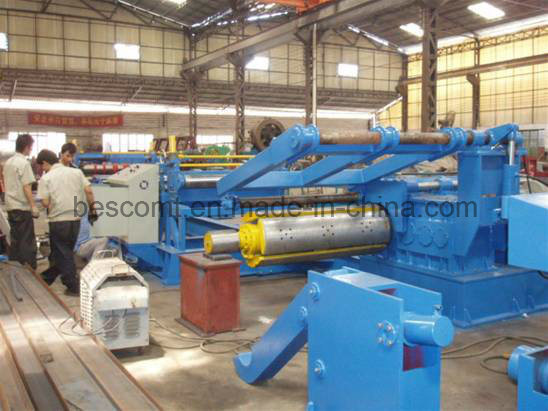

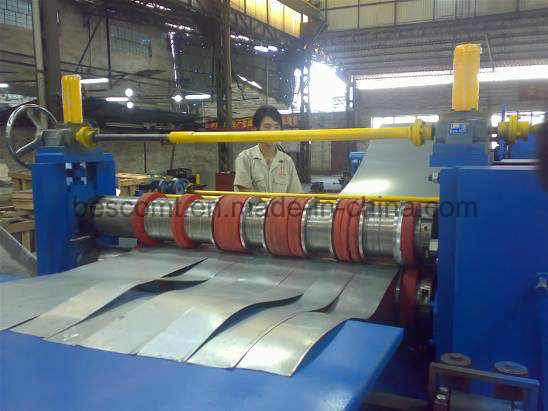

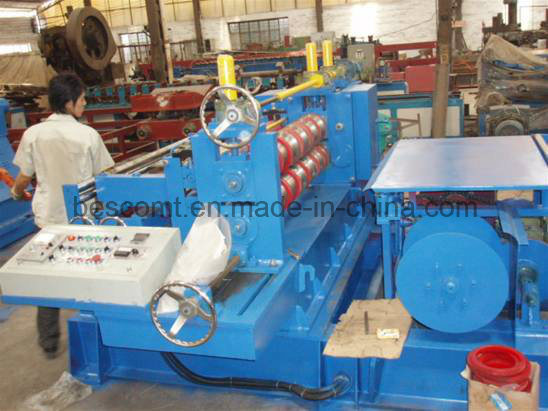

1.Loading coil car 2.Uncoiler 3.Straightener device 4.Pinch roll&leveler & hydraulic shearer 5.Loop pit 6.Side guide 7.Slitter 8.Transition platform & scrap winder 9.Loop pit 10.Tension station 11.Recoiler 12.Unloading coil car
Hereby take as an example a thin strip slitting line used for the uncoiling, slitting and recoiling of cold-rolled carbon steel, hot galvanized steel strip with thickness range of 0.3-3.0mm and width range of 800-1950mm.
Main technical parameter
Material: Cold-rolled, hot-rolled carbon steel, galvanized steel.
Material thickness:0.3-3.0mm
Material width:800-1950mm
Coil I.D.: Φ508mm/Φ610mm
Coil O.D.: ≤Φ2000mm
Coil weight:20 tons max
Narrowest strip width slit into: 25mm (strip thickness≤1mm)
Width cutting precision: ?.05mm(strip thickness≤1), ?.1mm(strip thickness>1.5mm)
Slitting Bur: 0.03minimum, 5% of the trip thickness
No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)
Line working speed: 150m/min max
Total power: Approx.210kw
The parameters mentioned above will vary even for the same model as the specific requirements differ.
Please contact us for more information to suit your specific need.
Below is part of the models designed by FOT slitting.
Model
Strip Thickness
Strip Width
Coil Weight
Speed
Total power
Area Occupied
(mm)
(mm)
(ton)
(m/min)
(kw)
(m)
450
0.15-3.0
200-420
4 MAX
0-120
55
13X4
650
0.2-3.0
300-620
7 MAX
0-120
96
15X4
850
0.3-3.0
300-800
8 MAX
0-120
100
15X5
1350
0.3-6.0
300-1300
15MAX
0-180
230
20X8
1650
2.0-8.0
600-1600
20 MAX
0-120
380
33X12
2000
2.0-8.0
800-1950
35 MAX
0-120
550
37X17




