China 12mm Cr Hr Coil Cut to Length Line China Manufacturer
China 12mm Cr Hr Coil Cut to Length Line
Basic Info
Model NO.: CTL3, CTL6, CTL8, CTL12, CTL16, CTL25, etc
Warranty: 12 Months
Customized: Customized
Condition: New
Steel Material: Hr, Cr, Gi, Ss, etc
Steel Thickness: 0.8-3mm, 1-4mm, 1.5-6mm, 2-8mm, 3-12mm, etc
Steell Width: Max 2000mm/2500mm
PLC: Mitsubishi, or Siemens
Inverter: Mitsubishi, or Siemens
Touch Screen: Veinview, Taiwan
Encoder: Omron, for Length Control
Speed: 0-20-60m/Min
Trademark: Haoshuo
Transport Package: Main Machine Nude Packing, Electric Parts Wood Box
Specification: CE, ISO
Origin: Wuxi, China
HS Code: 84623920
Product Description

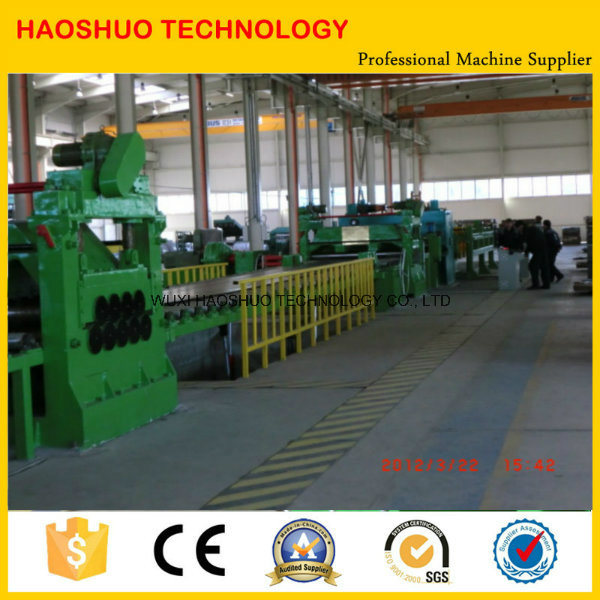

12mm CR HR Coil Cut to Length Line
Applied Material Parameter
1)Coil Thickness: 3-12mm
2)Coil Width: 2500mm (max. )
3)Inner Diameter: 600mm--800mm
4)Outer Diameter: 1500--2000mm
5)Capacity: 40000kg (max. )
Work Flow

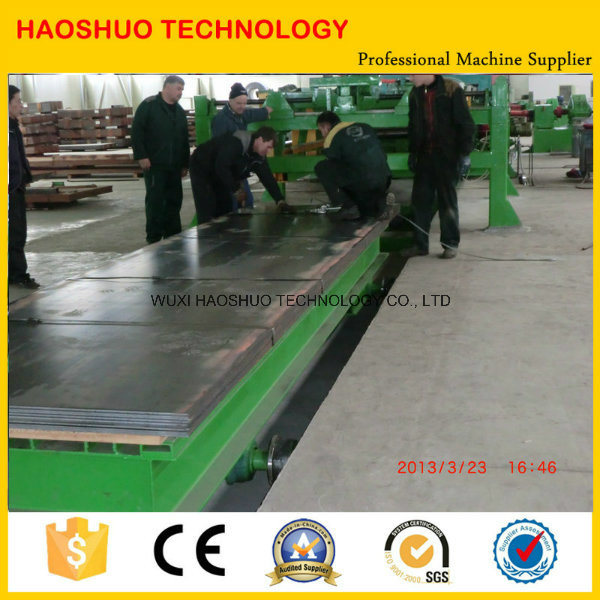

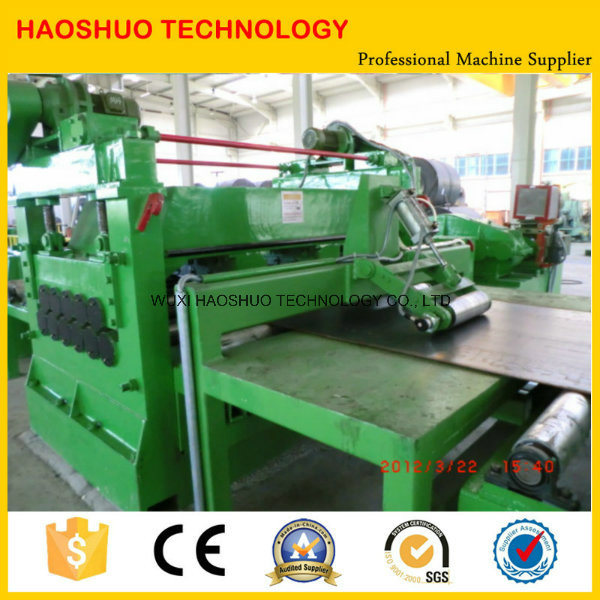

Feeding trolley---- Decoiling---- 4-roll feeding---- calibrating---- roll flattening--- tailing collecting--- high-precision cutting--- product auto-stacking
Production Line Main Technical DataMain SpecificationParameterWork Speed20M/minCutting Length2000~12600mmMax. Stacking capacity20 tonsMax. Stacking height350mmLineal Precision2mm(L=1000mm)Diagonal Precision3mm(L=1000mm)Leveling Precision1mm/square meterPowerAbout 250KWDimensionAbout 40M*10M*5M(L*W*H)Total weightAbout 80 tons
