China Aluminium Foil Roll Cutting Machine Line

Basic Info

Model NO.: GS

Applicable Process: Finished Pass

Suitable Substrates: Film Cutting

Packaging Material: Aluminum Foil

Speed: 2.5m/S

Size: 3600X1400X1910mm

Weight: 1800kgs

Certifcate: Ce

Length Range: 3m-300m

OEM: Yes

ODM: Yes

Trademark: Goldshine

Transport Package: Wooden Case

Specification: 3600x1400x1910mm

Origin: Zhangjiagang, China

Product Description

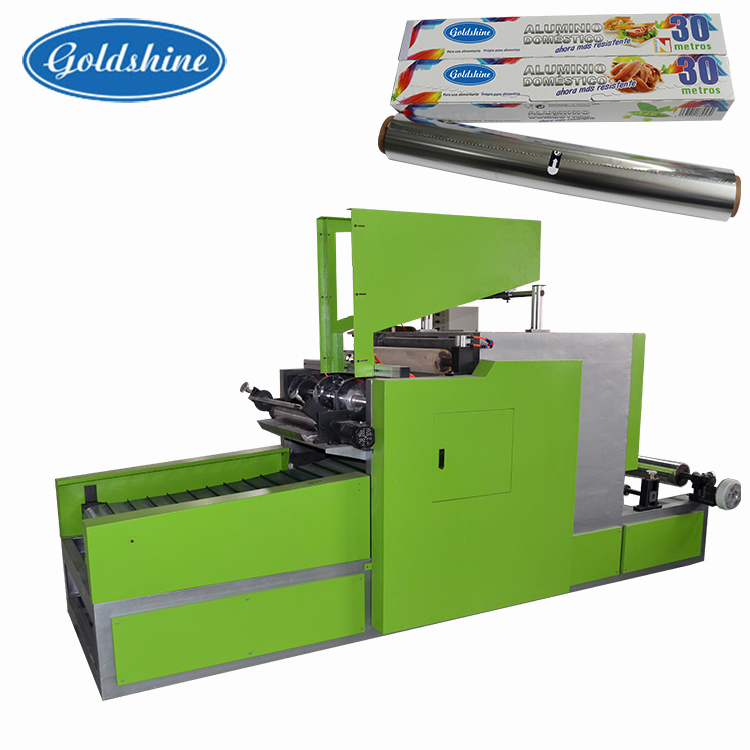

Aluminium Foil Roll Cutting Machine line
We are Manufacturer of aluminum foil machine in China. We can supply good price and best service of our machines

Main Technical Parameter:
Max. Width of Material: 500mm ( 19.69 ' )Max. Width of Roll500 mm(19.69'')Max. Unwind Roll DiameterΦ600 mm(Φ23.62'')Wall thickness of Material0.01-0.02 mm(0.0004''-0.0008'')Max.Unwind core Diameter of MaterialΦ75/Φ150 mm( Φ 2.95''/ Φ 5.90'')The Core Diameter of finished ProductΦ 25/30/35( Φ 0.98''/ Φ 1.18/1.37'')The Length of Finished Product3-300m(9.84'-984')Producing Speed2.5m/sMagnetic Powder Braker25NmMagnetic Powder Clutch12NmTotal Power4KwTotal Weight1800KgDimension(L * W * H)3600*1400*1910mm (141.73 ' X 55.12 ' X 75.20 ' )
High Speed
Operating Easily
CE certifcate
Warranty time: 1 year

Main Features:

(1)This full making machine work automatically. Worker control and regulate this plant through electric control panel, including the air-pressure and electricty.

(2)The Max. Width of decoiler is about 650mm. The Max. Diameter of foil roll is 600mm.

(3)There is an auto-lubricator>(4)The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by computer, which assure a high-precision step.

(5)The press can be equipped with single cavity or multi-cavity moulds for producing wrinkle-wall or smooth-wall container. It is equipped with a mould lifter which can lift and low the mould automatically when change a mould.

(6)We can design and manufacture different machines>
