China Aluminum Foil Cutting Machine Line China Manufacturer
China Aluminum Foil Cutting Machine Line
Basic Info
Model NO.: GS
Applicable Process: Finished Pass
Suitable Substrates: Film Cutting
Packaging Material: Wood
Speed: 2.5m/S
Size: 3600X1400X1910mm
Weight: 1800kg
Certifcate: Ce
Length Range: 3m-300mm
OEM: Yes
ODM: Yes
Trademark: goldshine
Transport Package: Wooden Box
Specification: 3600X1400X1910mm
Origin: China
HS Code: 8441801000
Product Description

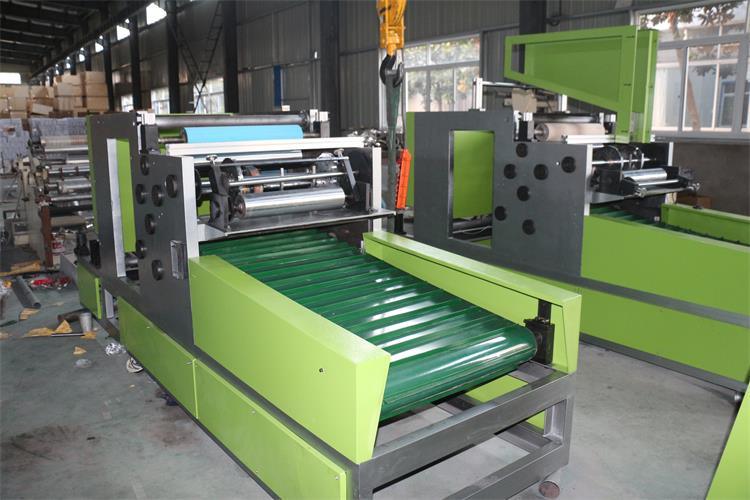

Aluminum Foil Cutting Machine line
If you are interested in it, please don't hesitate to contact us.
We are Manufacturer of aluminum foil machine in China. We can supply good price and best service of our machines Product Description
Main Technical Parameter:
Max. Width of Material: 500mm ( 19.69 ' )
Max. Unwind roll Diameter of Material: 600mm (23.62 ' )
Wall thickness of Material: 0.01-0.02mm ( 0.0004 ' -0.0008 ' )
Max. Unwind core Diameter of Material: 75/150mm ( 2.95 ' /5.90 ' )
The Core Diameter of finished Product: 25/30/35( 0.98 ' /1.18/1.37 ' )
The Length of Finished Product: 3-300m ( 9.84'- 984')
Producing Speed: 2.5m/S
Total Power: 4Kw
Total Weight: 1800 Kg
Dimension (L*W*H): 3600*1400*1910mm(141.73 ' X 55.12 ' X 75.20 ' )
High Speed Operating Easily CE certifcate warranty time: 1 year
