China Auto Steel Welded Pipe Production Line China Manufacturer

China Auto Steel Welded Pipe Production Line

Basic Info

• Model NO.: 18-76
• Customized: Customized
• Application: Industry
• Suitable Material to Produce: Steel Strip
• Material of Rollers: Cr12
• Materia of Cutter: Cr12
• Round Pipe Diameter: 76-125mm
• Color of Machine: as Your Request
• Trademark: OEm
• Specification: ISO9001
• HS Code: 84552210

• Condition: Used
• Theory: Servo Motor
• Type: High Frequency Weld Pipe Mill Line
• Thickness of Raw Material: 1.5-5mm
• Driving of Machine: by Reduction Box
• Face Finish of Roller: Chrome Coating
• Square Pipe: 30*30-100*100mm
• Type of Cutting: Non Stop Cutting
• Transport Package: The Main Machine Is Covered with Plastic Films
• Origin: Botou, Hebei

Product Description

carbon steel high frequency welded pipe production line

Product Description

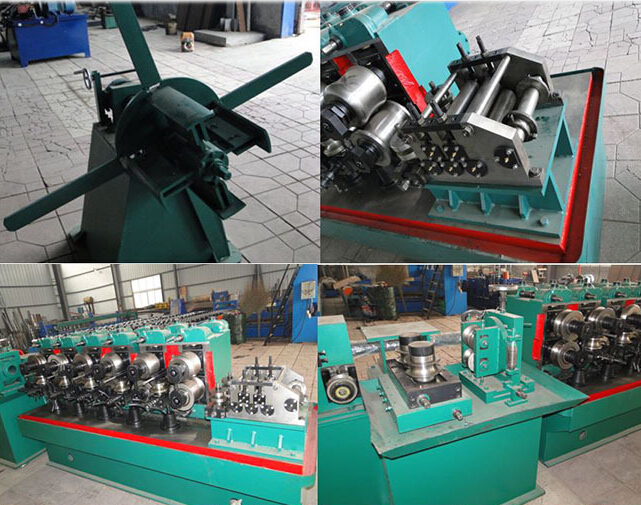

1.The picture machine:

Product Description

2.Product information

Main specification:
1. Round Pipe diameter: Φ76 -Φ127mm
Pipe Thickness: 1.5 - 5.0mm
2. Square Pipe: 30X30mm -100X100mm
Rectangle Pipe: 20X40mm -120X80mm
Pipe Thickness: 1.5 - 5.0mm
3. Pipe Length: 6.0m - 12.0m
4. Length Tolerance: 0-6mm
Material: Low Carbon steel (δb≤500Mpa, δs≤235Mpa)
Electricity
1. Dynamic power: AC380V?0%, 3phases, 50Hz?.0%
2. Control Power: AC220V?0%,>Electric installed capacity: appro. 900KW
Cooling water
1. Reservoir for High Frequency equipment: 30 m?> 2. Reservoir for circulating cooling water: 25 m?>Compressed air
1. Pressure: 0.4Mpa
2. Flow: 3.0m3/h
Production capacity
Annual output: 70000 ton, according to the yearly working days, daily working hours and the products.
Line speed: 30-90m/min

Main elements of HG127 high frequency welded pipe mill

Double mandrel uncoiler
Shearing and HF welder
Horizontal strip accumulator
Forming welding, cooling and sizing section
Computer flying saw cut-off.
Solid state H.F. induction wselder: 300 kw, solid state (400kw, vaccum tube type) type
Rolls: rolls are manufactured out of AISI D3 D2 E52100

3.Production Flow

5.Production Machinery




