China Carbon Steel Pipe Welding Machine, Welded Steel Pipe Machine

Basic Info

Model NO.: Customized

Material: Metal Coil

Power: 22kw

Trademark: HAOSHUO

Transport Package: Sea Shipping by Container

Specification: customized

Origin: Wuxi, China

HS Code: 84552290

Product Description

carbon steel pipe welding machine,welded steel pipe machine

Product description

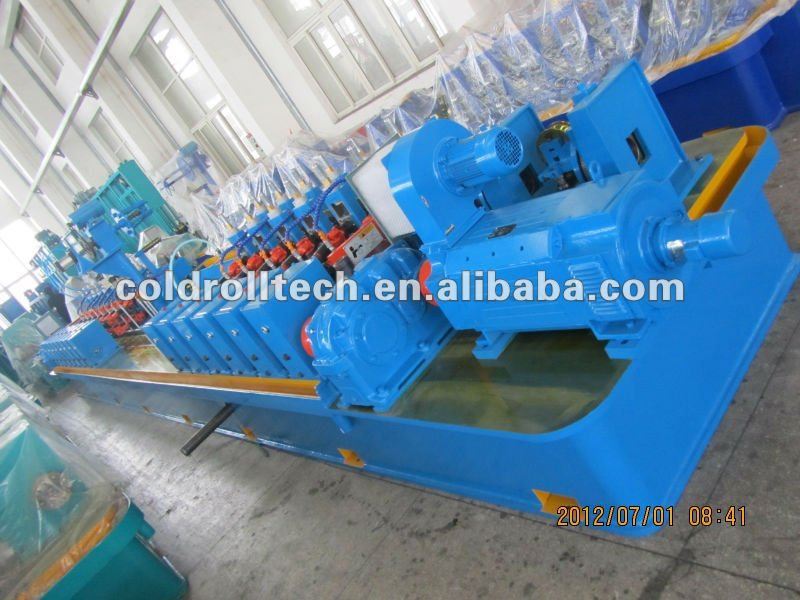

This weilded pipe making machine is the main equipment for producing straight seam welding tubes in many departments, such as metallurgy, machinery, light industry, and building materials, etc. This welding tube mill can roll certain specification long steel belt into tube barrels, and then weld those tube barrels into tubes. And this machine can be used to manufacture profiled pipes as well as round pipes.

Description

ZG12
tube mill line

ZG16
tube mill line

ZG25
tube mill line

ZG28
tube mill line

Diameter of welded tubes

Φ7-16mm

Φ8-25mm

Φ8-30mm

Φ10-38mm

Wall thickness of welded tubes

0.2-0.5mm

0.3-1.0mm

0.4-1.2mm

0.6-1.5mm

Speed of tube welding

30-100M/min

30-90M/min

30-80M/min

Power of major motor

15KW

22KW

30KW

45KW

Power of high frequency welder

60KW

100KW

Description

ZG115 tube mill line

ZG165 tube mill line

ZG219 tube mill line

Diameter of welded tubes

Φ40-115mm

Φ76-165mm

Φ114-219mm

Wall thickness of welded tubes

1.5-5.0mm

2.0-6.0mm

3.0-8.0mm

Speed of tube welding

15-60M/min

15-50M/min

15-40M/min

Power of major motor

132KW?

185KW?

250KW?

Power of high frequency welder

400KW

600KW

800KW

Main components
Decoiler -------------------------------------------------- 1 Set
Buffer pit---------------------------------------------------1 Set
Hydraulic shear----------------------------------------- 1 Set
Roll former-------------------------------------------------1 Set
Flying saw cutter-----------------------------------------1 Set
Drop down-------------------------------------------------1 Set
Solid-state high frequency welding-----------------1 Set

Work flow
Uncoiler→Shearing and butt-welder→Vertical-type accumulator→Forming,welding,sizing machine→Computer cutting saw→Run-out table

Our service
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support
