China Combined Production Line with Slitting Machine and Cut to Length Machine China Manufacturer

China Combined Production Line with Slitting Machine and Cut to Length Machine

Basic Info

Model NO.: JPZ series

Line Speed: 0~40 M/Min

Controller: CNC

Applicable Material: Steel, Aluminum, Copper, etc

DC Controller: Eurotherm 590c

Trademark: Oriental machinery

Transport Package: W/O Packing, Fastened and Fixed in Container

Origin: China

HS Code: 846239200

Product Description

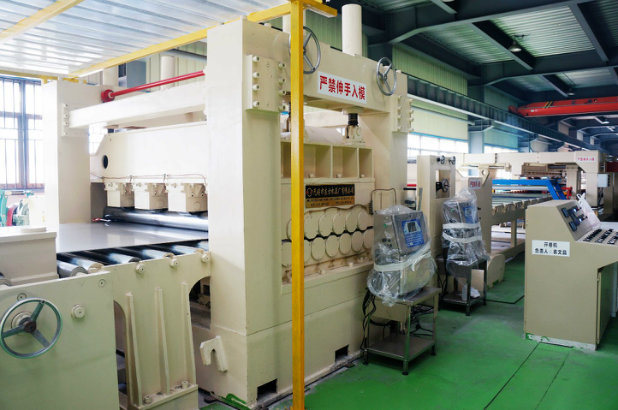

Slitting and cutting to length integrated production line

This productiong line is to uncoil,leveling,slitting,recoil,cutting to length,palletzing make srcid= ' 238815695 ' src= ' /upLoad/et29851302134592.jpg ' width= ' 618px ' height= ' 462px ' />

Standard allocation consists of charging wagon, uncoiler, material feeding machine, feeding per-leveling machine, transition platform, limiter I,slitting shearing machine, strip edge recoiler, damping device,material separation device, recoiler, discharging cart, transition platform, limiter 1, leveling machine, storage bin, limiter 2 , servo-sizing machine, shearing machine, transmission platform, pneumatic discharging frame, hydraulic lift platform, discharging platform, hydraulic system, and electro-pneumatic system.

The main component of hydraulic system of this production line applies high precision component parts from Taiwan. The electric control is controlled full line by imported PLC program controller and touch screen. The leveling main motor applies DC motor. The DC controller applies the product from British Eurotherm company. Its characteristics are high automaticity, good leveling quality, high shearing precision, high production efficiency, steady and reliable performance and easy operation and maintenance.

Popular items:ItemThicknessWidth(mm)Loading
CapacityLeveling accuracySlitting lining accuracySpeedLine PowerUnitmmmmTmm/m²mm/mm/minKWRange1~6, 3~121500, 200030≤2.5≤?.2~60, ~40~350, ~450

Company introduction:
Wuxi Oriental Machinery is srcid= ' 240028265 ' src= ' /upLoad/et29851302134597.jpg ' width= ' 692px ' height= ' 309px ' />
