China Compact Step Lap Silicon Steel Core Cut to Length Machine Line for Mitred Transformer Lamination Cutting China Manufacturer
China Compact Step Lap Silicon Steel Core Cut to Length Machine Line for Mitred Transformer Lamination Cutting
Basic Info
- Model NO.: JN-5003C
- Application: Machinery & Hardware
- Automation: Automatic
- Max. Silicon Steel Width: 500mm
- Cutting Speed: 30~50 Times Per Minute
- Cutting Angle Tolerance: /-0.03 Degree
- PLC: Delta
- Servo Motors: Delta
- Trademark: ZHENHUAN
- Type: Silicon Steel Cutting
- Type for Cutting Machine: CNC Cutting Machine
- Condition: New
- Rated Power: 20kw
- Cut-to-Length Precision: /-0.1mm
- Cutting Burr Height: Less Than 0.02mm
- HMI: Delta
- Machine Dimension: About 4000 X 1600 X 1400mm (Main Machine)
- Origin: China
Product Description
Compact Step Lap Silicon Steel Core Cut to Length Machine Line
I Description of compact step lap silicon steel cut to length machine line:
This machine is specially designed for cutting silicon steel coils into lamination strips for transformer cores, welding machine cores, and reactor cores.
This machine is specially designed with a swing shear for different angle. The angles and cutting length can be pre-set in the PLC, full automatic.

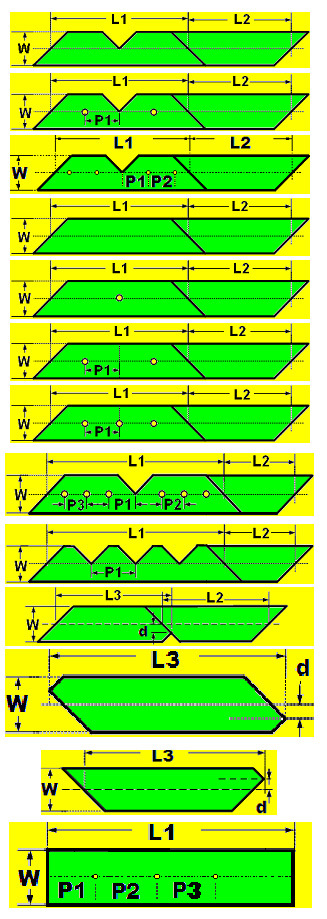

This machine is equipped with>Lamination strips can be cut by this machine:
II Main features of compact step lap silicon steel cut to length machine line:
- Delta AC servo system plus Delta PLC professional module achieve high precision feeding, quick response, high precision positioning, low noise; Max. feeding speed 100m/min, starting & braking time is less than 10ms.
- Full automatic finishing cutting, swinging angle, counting, cutting right angle, trapezoid, parallelogram, fish-head, etc.
- Equipped with>- Cutting, punching and notching motors are inverter control, quick and low noise
- Screw rod center positioning, driven by step motor, automatic positioning
- Cutting blade, notching tool and punching tool are made by special ceramic alloy from Germany, long life, less burr
- Step-lap function, max. 8 steps
III Buildup of compact step lap silicon steel core cut to length machine line:
3.1 Inverter-controlled decoiler:
-Motor power: 3kW
- Max. coil weight: 1000kg
-Max. coil width: 500mm
-Coil inner diameter: 480-520mm
-Coil outer diameter: 1200mm
3.2 High speed feeding machine
- Servo motor driving: Delta servo motor, 2kW
- Feeding precision: /-0.02mm
- Feeding speed: max. 100m/min
- Feeding roller material: special mould steel in high hardness
3.3 Servo swinging device
- High speed servo drive swinging, 3-5s per rotate
- Rotating angle precision: /-0.1 degree
-Rotating servo motor power: 4.5kW
3.4>- High speed notching device, 40 times per minute (average speed in line)
- Notching position tolerance: /-0.05mm
- Notching motor power: 2kW
- Notching tool: high hardness ceramal steel imported from Germany, life more than 2000,000 times before grinding
- Notching position can be pre-set>3.5 Cutting device
- High speed cutting, 30 times per minute (average speed in line)
- Cut-to-length tolerance: /-0.05mm
- Cutting motor power: 2kW
- Cutting blade: high hardness ceramal steel imported from Germany, life more than 2000,000 times before grinding
- Quantity and length are pre-set>3.6 Belt transmitting table: length 1500mm, driving motor power 1.5kW
3.7 Control system
- Delta PLC
- Delta touch screen 7 '
- Quantity, length, speed, angle combination can be pre-set>IV Main technical data of compact step lap silicon steel core cut to length machine line:

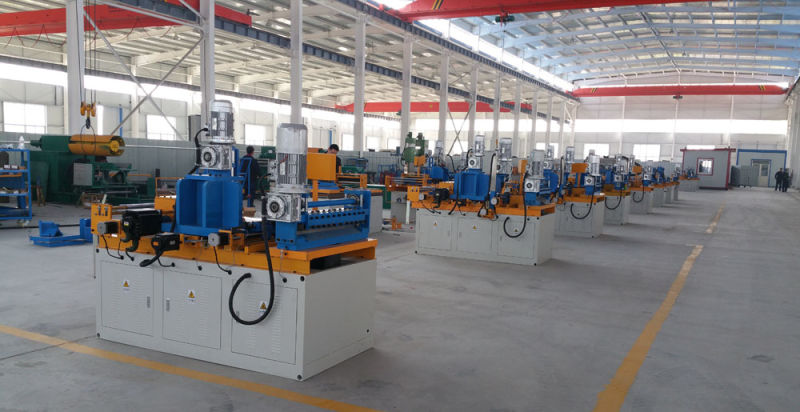

No.ItemData1Type CodeJN-50032CRGO thickness0.23-0.6mm3CRGO coil width30-500mm4Cutting length1-999999mm5Cut-to-length tolerance /-0.1mm6Cutting angle tolerance /-0.03?/span>7Hole position tolerance /-0.1mm8Notch position tolerance /-0.1mm9Burr heightLess than 0.02mm10Feeding speedMax. 100m/min11Production speed30~50 pieces per minute12Punching/notching dieCarbide alloy13Cutting bladeCarbide alloy14Die & blade lifeMore than 1.2 million times before grinding15Max. step-lap stroke40mm16Step-lap quantities1, 2, 3, 4, 5, 6, 7,817Servo motorsDelta from TaiwanCompact step lap silicon steel core cut to length machine lines in our workshop:
We have sold this kind of compact step lap silicon steel core cut to length machine lines to Greece, Argentina, Korea, Singapore, Pakistan, UAE, India. Welcome to visit us at any time and we can show you working machine of compact step lap silicon steel core cut to length machine lines.
