Basic Info

• Model NO.: BE
• Brand Name: Besco
• After-Sales Service Provided: Engineers Available to Service Machinery Overseas
• Max. Cutting Thickness: 6mm
• Power: Hydraulic
• Trademark: Besco
• Specification: CE, ISQ
• HS Code: 84623990

• Model Number: Be
• Warranty: All Life,1 srcid= ' 49382252 ' src= ' /upLoad/et30664302245532.jpg ' width= ' 548px ' height= ' 411px ' />

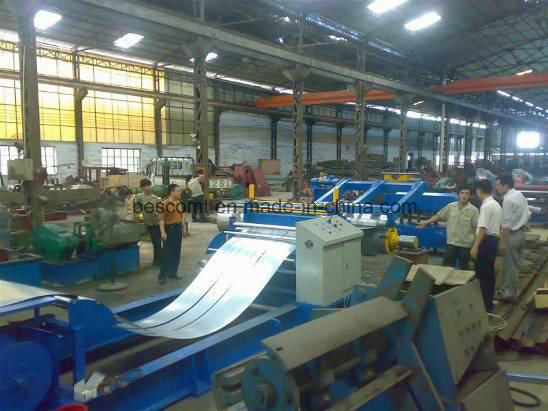

  CR slitting machine, metal sheet slitting line

  A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.

  Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

  A slitting line is composed of:
  1.Loading coil car 2.Uncoiler 3.Straightener device 4.Pinch roll&leveler & hydraulic shearer 5.Loop pit 6.Side guide 7.Slitter 8.Transition platform & scrap winder 9.Loop pit 10.Tension station 11.Recoiler 12.Unloading coil car

  Hereby take as an example a thin strip slitting line used for the uncoiling, slitting and recoiling of cold-rolled carbon steel, hot galvanized steel strip with thickness range of 0.3-3.0mm and width range of 800-1950mm.

  Main technical parameter
  Material: Cold-rolled, hot-rolled carbon steel, galvanized steel.
  Material thickness:0.3-3.0mm
  Material width:800-1950mm
  Coil I.D.: Φ508mm/Φ610mm
  Coil O.D.: ≤Φ2000mm
  Coil weight:20 tons max
  Narrowest strip width slit into: 25mm (strip thickness≤1mm)
  Width cutting precision: ?.05mm(strip thickness≤1), ?.1mm(strip thickness>1.5mm)
  Slitting Bur: 0.03minimum, 5% of the trip thickness
  No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)
  Line working speed: 150m/min max
  Total power: Approx.210kw

  The parameters mentioned above will vary even for the same model as the specific requirements differ.
  Please contact us for more information to suit your specific need.

  Below is part of the models designed by FOT slitting.
  Model
  Strip Thickness
  Strip Width
  Coil Weight
  Speed
  Total power
  Area Occupied
  (mm)
  (mm)
  (ton)
  (m/min)
  (kw)
  (m)
  450
  0.15-3.0
  200-420
  4 MAX
  0-120
  55
  13X4
  650
  0.2-3.0
  300-620
  7 MAX
  0-120
  96
  15X4
  850
  0.3-3.0
  300-800
  8 MAX
  0-120
  100
  15X5
  1350
  0.3-6.0
  300-1300
  15MAX
  0-180
  230
  20X8
  1650
  2.0-8.0
  600-1600
  20 MAX
  0-120
  380
  33X12
  2000
  2.0-8.0
  800-1950
  35 MAX
  0-120
  550
  37X17


  


  
