China CRGO Step Lap Cut to Length Line for Transformer Lamination China Manufacturer

China CRGO Step Lap Cut to Length Line for Transformer Lamination

Basic Info

Model NO.: HJX350, 400, 600

Operation Screen: B&R Austria

Bearings: NSK Japan

Shipment: in FCL Containers

Warranty: One Year

Trademark: HAOSHUO

Transport Package: Seaworthy Packing

Specification: CE

Origin: Jiangsu, China

HS Code: 84623920

Product Description

CRGO Step Lap Cut to Length Line for Transformer Lamination

This production line is automatic cut to length line for silicon steel coil, is necessary production equipment for transformer lamination manufacturing. It can cut 45 degree and 135 degree shear, transverse and longitudinal progressive shear, hole punching and v notching. The line can be suitable for cutting series shapes of work pieces used in the manufacturing of transformer industry.

Our production line has high quality with high speed. All electric elements use International famous brand products. The line has high stable performance with high precision.

Work Process:
Coil decoiling -- buffer plate for coil storage -- servo feeding for length measuring -- electric hole punching -- servo positioning -- servo V notching -- cutting coil sheet into required shapes by 2 shearers -- work pieces feeding & collecting -- automatic product stacking

Main Technical DataCutting width40-440mm, 60-660mmCutting thickness0.23-0.35mmMax coil weight1000kg, 2000kgCutting piece length320-2500mm, 400-3500mmMax feeding speed240m/minLength accuracy?.2mmCutting burr≤0.02mmCutting angle precision?.025 degree

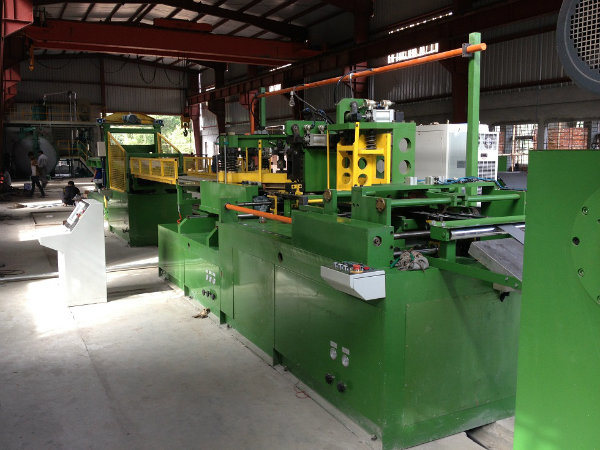

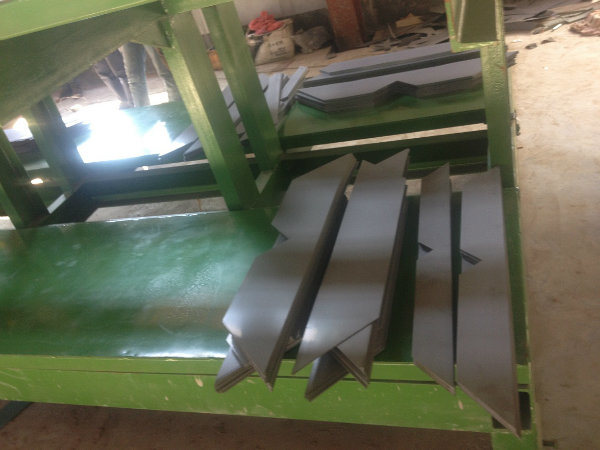

Reference drawing and photos

Cutting piece length: 320-2500mm, 400-3500mm
