China Cross Shearing Production Line for Steel Hot Roll Coil

Basic Info

Model NO.: CL

Production Scope: Product Line

Voltage: 380V

Control Method: PLC

Color: Customize

Width: Customize

Material: Hot Roll Cold Roll etc

Speed: 400-14000mm/Min

Trademark: Huafei

Transport Package: Wooden Case and Plastic Film in Container

Specification: customized

Origin: Jinan, Shandong, China

Product Description

Jinan Huafei Cut to Length LineModel/
ParameterThickness
(mm)Width
(mm)No. of
slittingMax.cutting
speed(m/min)coil
weight(ton)Remark HFSL-0.5*13000.15-0.5500-13001-2450-1507Technical data,
optional devices
according to the
customers
requirements HFSL-2*13000.3-2500-130012-3050-1807/15 HFSL-2*16000.3-2500-160012-3050-1807/15 HFSL-3*16000.3-3500-16008-3050-18015 HFSL-3*18000.3-3900-18008-3050-18020HFSL-4*16001-4900-16006-3050-12020HFSL-6*16001-6900-16006-3030-8030
Uncoiler: Uncoiling coil plate for further processing
Material-guiding DeviceGuiding material head into leveler machine.1). Hydraulic swing structure

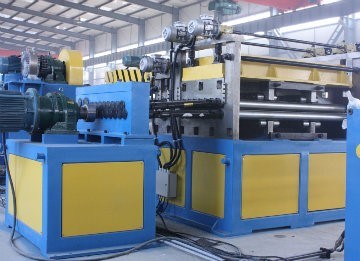

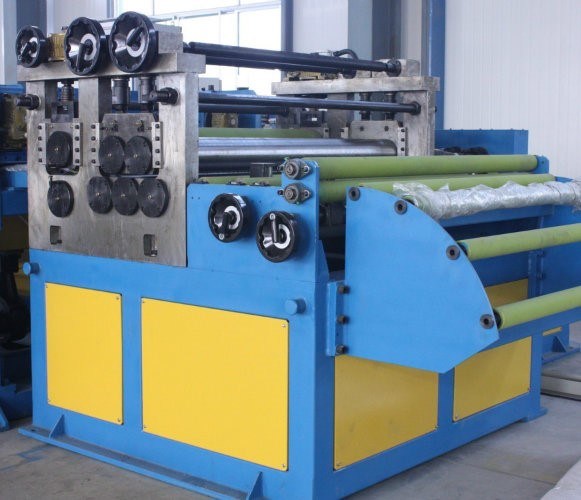

2).Double oil cylinder swingLevelling MachineLoop Table Functiontransiting material head or end,FeaturesRaised and lowered by oil cylinder
Two pairs of Photo sensors installed to control storage volume.Side GuideCorrecting strip moving direction and preventing it from deflecting. vertical roll guiding 1).2 groups guiding rolls in total.
2).The width adjusted by hand wheel.
3).The material of guiding rolls is of GCr15. Feeding Machine
Preparing material plate into shearing machine.

Shearing Machine
Shearing coil plate into required length.

Conveying machine
Conveying plate into stacking device.

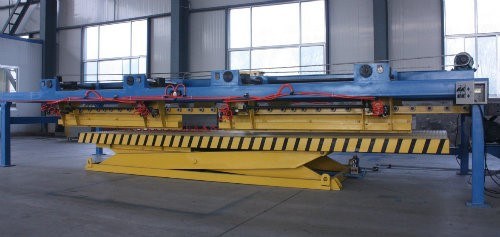

Stacking Device:
stacking the sheared plate.

Stacking Device:
stacking the sheared plate.

Company information
Jinan Huafei CNC Machine Co., Ltd is a professional CNC machine manufacturer, it has trading department Jinan GT Machinery Co.,Ltd ,the company specializes in designing, producing and trading together. The company mainly produce and sell
automatic welding equipment, cnc cutting machine, and uncoiling production line.
Since establishment, the company has built long-term good cooperation with plenty of
customers home and abroad, the products have been exported to many countries including
United States, Canada,Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain,
Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan,Chile,etc.
FAQ
(1) Are you a factory or a trading company?
We are manufacturer in Jinan City, Shandong, China.
(2) Do you have any certifications?
Yes, we have. All of our robotic arm manipulators are CE, SGS, ISO certificated.
(3) What's your product lead time?
Within 15 days after received payments.
(4) What's the warranty time?
One year.
