China Cut to Length Line and Slitting Line China Manufacturer

China Cut to Length Line and Slitting Line

Basic Info

• Model NO.: BESCO
• Application: Machinery & Hardware
• Type for Fold-bending Machine: CNC Fold-bend Machine
• Automation: Automatic
• Condition: New
• Brand Name: Besco
• After-Sales Service Provided: Engineers Available to Service Machinery Overseas
• Max. Cutting Thickness: 6mm
• Power: Hydraulic
• Trademark: Besco
• Origin: China

• Type: Cutting Machine
• Type for Cutting Machine: Hydraulic Cutting Machine
• Certification: CE, ISO 9001:2000
• Type for Pipe and Tube Bending Machine: Digital Pipe Bender
• Model Number: Be
• Warranty: All Life,1>cut to length line and slitting line

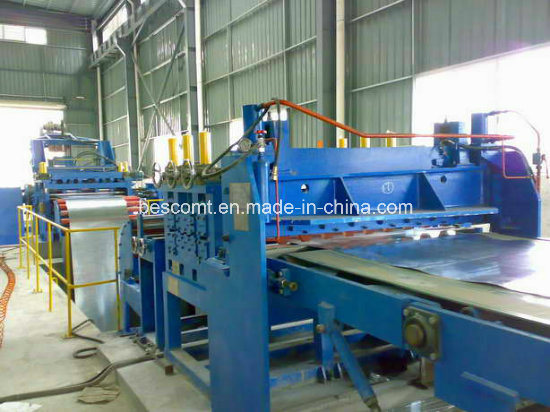

  Cut To Length Line
  We offer various standard models of cut-to-length lines. These lines can be cut from ranges of 0.5mm up to 3mm in length with different coil widths weights. Each of these lines can be custom tailored to meet specific production needs.

  Ferrous and non-ferrous metals such as hot and cold rolled carbon steel, stainless steel, aluminum, brass, copper, galvanized metals, and different kinds of alloys can all be cut by these lines.

  Sunfone will tirelessly assist its customers to make sure that they are receiving the highest quality products at the most economically available pricing.

  Thanks to the most advanced CNC (Computerized Numerical Control) and AC Servo Drive Technology, combined with the fully automatic hydraulic controlled un-coiler; we ensure that our CNC Cut-to-Length machine is able to handle all tough cutting jobs for sheet metals with high speed, greater accuracy, improved efficiency, simple operation, and less manpower.

  • Greater cutting accuracy
  • Improved Reliability
  • Planned production
  • Flexible processing alternative
  1. High speed CNC (Computer Numerical Control) and AC Servo Drive System for better positioning, cutting accuracy, and reliability.
  2. High-resolution graphic monitor for the plant floor man-machine (MM) message handling and display.
  3. Programmable function keys for specific tasks.
  4. Cutting functions can be selected in either auto or manual mode. In auto mode, the system is able to make single step and/or continual operations.
  5. You are able to set; cutting length, quantity, job number, and parameter adjustmentvia the front panel screen.
  6. A dedicated screen / menu that can be used by the operator for: job numbers, cutting length, quantity, and for setting operational parameters.

  7. Parameters:

     Applicable leveling thickness0.5-3mmApplicable leveling width800-2000mmInside diameter of coil500-700mmOutside diameter of coil1000-2200mmFeeding rate:90m-120m/minMax. weight of coil15Ton Cutting accuracy:?.5mm Diagonal accuracy?1mm

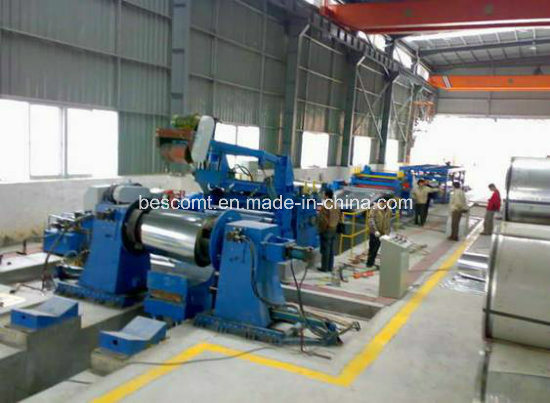

  Slitting Line

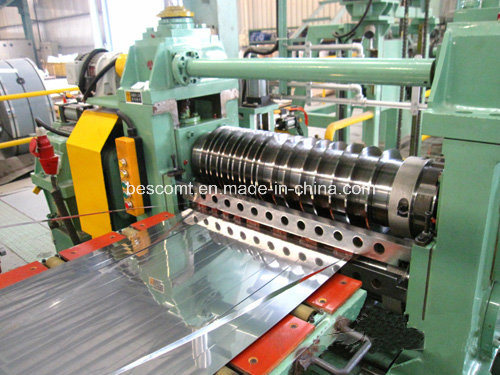

  A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.

  Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

  A slitting line is composed of:

  1.Loading coil car 2.Uncoiler 3.Straightener device 4.Pinch roll&leveler & hydraulic shearer 5.Loop pit 6.Side guide 7.Slitter 8.Transition platform & scrap winder 9.Loop pit 10.Tension station 11.Recoiler 12.Unloading coil car

  Hereby take as an example a thin strip slitting line used for the uncoiling, slitting and recoiling of cold-rolled carbon steel, hot galvanized steel strip with thickness range of 0.3-3.0mm and width range of 800-1950mm.

  Main technical parameter

  Material: Cold-rolled, hot-rolled carbon steel, galvanized steel.

  Material thickness:0.3-3.0mm

  Material width:800-1950mm

  Coil I.D.: Φ508mm/Φ610mm

  Coil O.D.: ≤Φ2000mm

  Coil weight:20 tons max

  Narrowest strip width slit into: 25mm (strip thickness≤1mm)

  Width cutting precision: ?.05mm(strip thickness≤1), ?.1mm(strip thickness>1.5mm)

  Slitting Bur: 0.03minimum, 5% of the trip thickness

  No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)

  Line working speed: 150m/min max

  Total power: Approx.210kw

  The parameters mentioned above will vary even for the same model as the specific requirements differ.

  Please contact us for more information to suit your specific need.

  Below is part of the models designed by FOT slitting.

  Model

  Strip Thickness

  Strip Width

  Coil Weight

  Speed

  Total power

  Area Occupied

  (mm)

  (mm)

  (ton)

  (m/min)

  (kw)

  (m)

  450

  0.15-3.0

  200-420

  4 MAX

  0-120

  55

  13X4

  650

  0.2-3.0

  300-620

  7 MAX

  0-120

  96

  15X4

  850

  0.3-3.0

  300-800

  8 MAX

  0-120

  100

  15X5

  1350

  0.3-6.0

  300-1300

  15MAX

  0-180

  230

  20X8

  1650

  2.0-8.0

  600-1600

  20 MAX

  0-120

  380

  33X12

  2000

  2.0-8.0

  800-1950

  35 MAX

  0-120

  550

  37X17


  


  
