China Cut to Length Line and Slitting Used to Straighten The Steel Coil and Leveler Machinery China Manufacturer

China Cut to Length Line and Slitting Used to Straighten The Steel Coil and Leveler Machinery

Basic Info

Model NO.: Customized

Name: Cut to Length Line and Slitting Used to Straighten

Application: Steel Cutting

Type: Fully Automatic

Color: Green

Certification: Ce ISO SGS

Width: 3600mm

Thickness: 0.2-80mm

Voltage: Three-Phrase 380V/220V

Power: Depend>Product Description

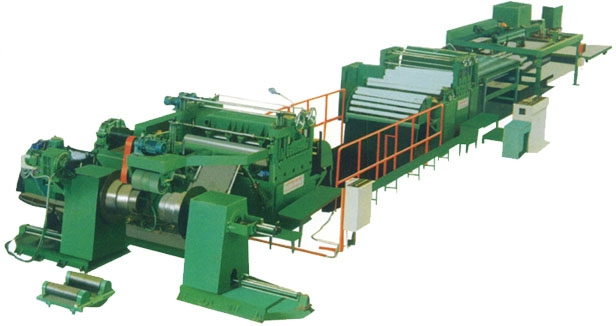

Cut To Length Line And Slitting Used To Straighten The Steel Coil And Leveler Machinery

Product description

Working flow
Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking table

Main components

Loading trolleyDecoilerGuiding devicePinch roll for feedingCentering and calibrating deviceLeveller /StraightenerShear/Cut to lengthStackerUnloading trolley

Use and Attention
Coil should be put right to keep the weight balanced. The coil car can reset>First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
Operators shall not stand>Do not move coil directly by hand.
Stop and check the machine units immediately when find fault.>Do not remove or change circuit. In case has problem, please consult professional technicians.

Our service
Experienced in professional mechanical sales
Strictly product manufacturing and quality control to satisfy our customer
Engineers available to service machine overseas
Lifelong service for spares, ware parts, technical supporting, etc
