China Cut to Length Line for Thin Plate and Thick Plate
Basic Info
Model NO.: HFCL
Trademark: HUAFEI
Transport Package: Wooden Case
Specification: depend>Product Description
Thin plate cut to length line is used for metal plate coil uncoiling, leveling, set length, cutting the set size and stacking. This line used for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and other different kinds of surface plating metal.

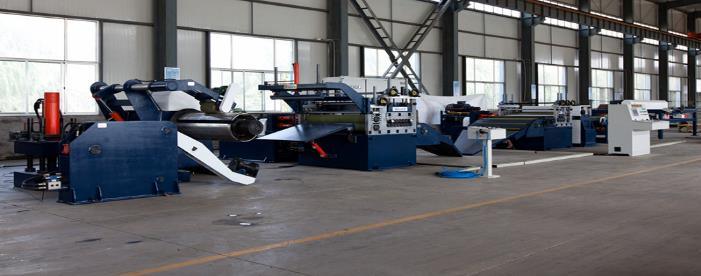

Production line is mainly composed of entry coil car, uncoiler, leveler, looping bridge, side guide, servo feeding device, shearing machine, transfer table, stacking device, etc. This line can configure trimming device.
This production line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller and Taiwan WEINVIEW touch screen to control all functions, main motor of leveler adopts AC Broadband motor, Inverter adopts Omron, which has high degree of automation, high shearing precision,stable and reliable performance, Easy operation and maintenance, etc.
MAIN TECHNICAL DATA:
Model No.
ParameterCutting thickness
mmcoil width
mmCutting precision/set length/mmCutting speed pcs/min/set lengthT
weightMm
Stacking lengthremarkHFCL-2?3000.2-2200-1300?.5/200022pcs/min/200010T500-2000Technical data, configuration can according to customer requirement.HFCL-2?6000.3-2200-1300?.5/200022pcs/min/200015T500-3000HFCL-3?6000.5-3200-1300?.5/200020pcs/min/200015T500-3000HFCL-3?0000.5-3200-1300?.5/200020pcs/min/200015T500-3000HFCL-4?6001-4300-1600?.5/200015pcs/min/200020T500-4000HFCL-4?0001-4300-1600?.5/200015pcs/min/200020T500-5000
