China Cut to Length Machine Line China Manufacturer
China Cut to Length Machine Line
Basic Info
Advantage: Easy to Maintenance
Condition: New
Product Name: Cut to Length Machine
Steel Thickness: 1.5mm
Power: 7.5kw 5.5kw
Trademark: SAIBO
Transport Package: Sea Packing
Specification: CE SGS
Origin: Jiangsu, China
HS Code: 84552210
Product Description
Cut To Length Machine
Raw Material:
All of our machine profile is customized, above raw material is>1. Coil width: 1500mm
2. Thickness: 1.5mm

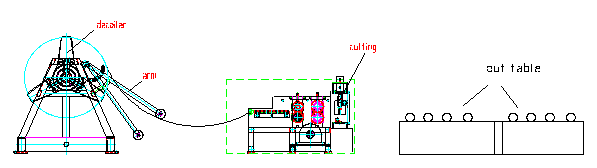

Layout:
Manual de-coiler-Feeding-Cutting-Out table
Specifications:
Item NO
Description
Offered specification
1Roll Forming Machine
Cut to Length Machine
2Coil width1500mm3Rolling Speed12-15m/min(not include cutting time)4Rolling Thickness1.5mm GI, color steel5Control SystemPLC (Panasonic) as list in the note6Un Coiler5T manual de-coiler7Roller Stations2 stations for feeding8Roller MaterialRubber roller9Shaft Material and DIA?5mm, material is 45# forge steel10Post cuttingHydraulic cutting slitting11Maim Motor Power7.5kw12Hydraulic Station Power5.5kw13Hydraulic Pressure12-16Mpa adjustable14Material Of CuttingCr12Mov quenching 58-62篊15Structure Of The StationsWall panel16Tolerance3m -1.5mm17Electric Source
380V, 60HZ,3 phase
According to customer's require
18Way Of DriveBy chain19Color Of The MachineYellow and blue20Size of the machineL*W*H about 2.0m*1.7m*1.2m21Container Need1x20 feet
