China Cut to Length Machine Line for Middle Gauge China Manufacturer

China Cut to Length Machine Line for Middle Gauge

Basic Info

• Model NO.: bu
• Forging Forming Method: Free Forging
• Feature: Automation
• Warranty: 12 Months
• Advantage: Easy to Maintenance
• Trademark: BU
• Specification: CE, ISO9001: 2000
• HS Code: 8455221000

• Type: Forging Operation
• Power Source: Electric
• Certification: CCC, ISO9001, CE
• Customized: Customized
• Condition: New
• Transport Package: Complete Shipping Package
• Origin: Shandong Jinan

Product Description

Parameters
1, Material parameters
1.1 Material CR/Galvanized steel
1.2 Thickness 0.5-3mm
1.3 Width 1600mm
1.4 Coil OD Ф1500 mm
1.5 Coil ID Ф610mm/Ф508mm
1.6 Max weight 30t
2, Production line patameters
2.1 Cutting length 1000-4000 mm (we can not stack for the sheet length less than 1000mm)
2.2 Length tolerence ?.5mm (in the length of 2000mm)
2.3 Diagonal tolerence ?.8mm (in the length of 2000mm)
2.4 Line speed about 15m/min
2.5 Stack weight 5t
2.6 Total power ≈55KW
2.7 Gas consumption 800l/min(gas source will be buyer's side)

Equipment information

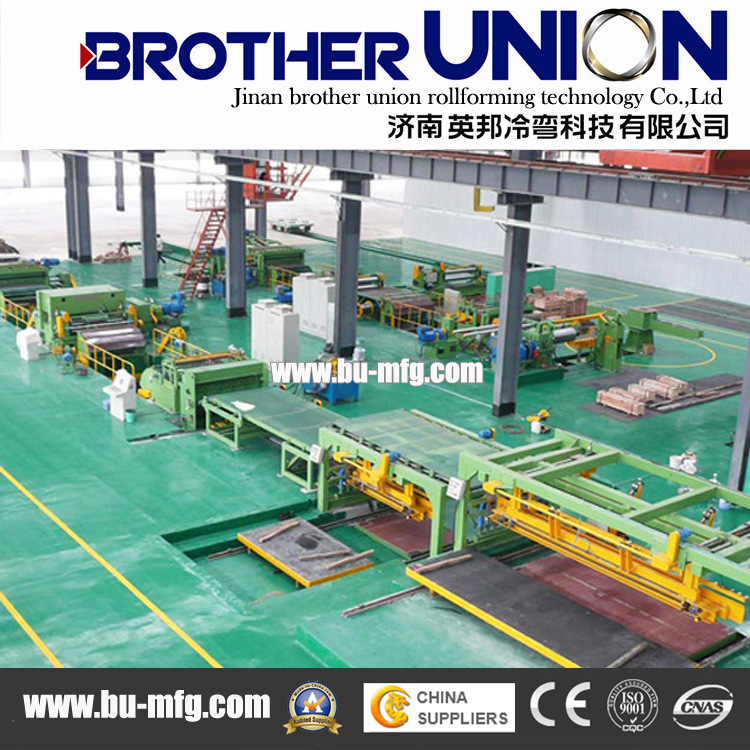

Whole line has the following parts:

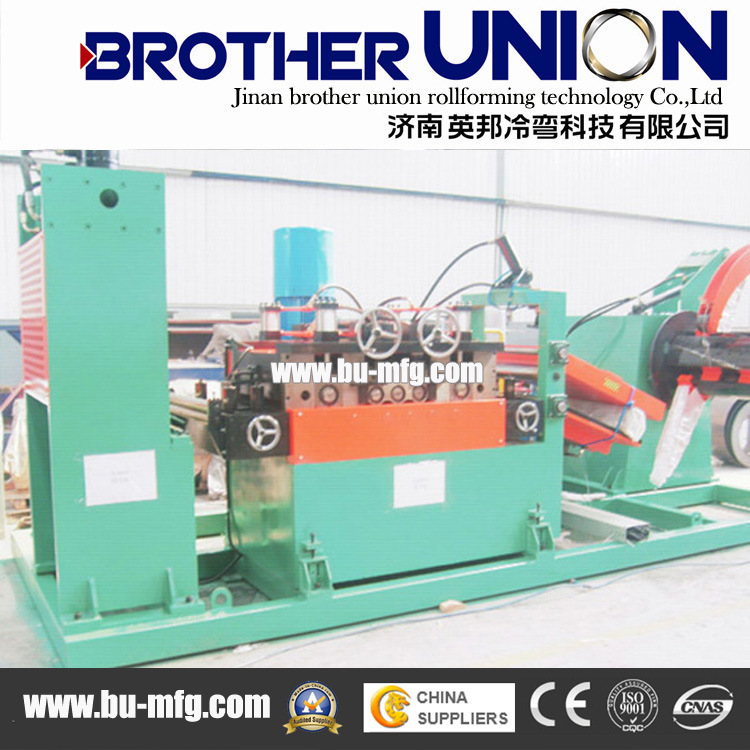

Feeding car, decoiler, leveling machine, correcting device, cutting machine, conveyor, stacker, discharging device, hydraulic system and electrical syestem.
Working process:Loading material→Decoiling→Feeding→Levering→Correcting→Cutting→Dischanrging1Feeding car2Decoiler3Leveler4Cutter5Conveyor6Out-put table7Discharging roller way8Hydraulic System9Electric Control Section10Pneumatic and lubrication system
INBON MACHINERY Was Founded By Metalforming experts In All Aspects of Tooling Design, Hyrdaulic & Electrical Design, software programming in 2008. We now consider ourselves as the leading pioneer of roll forming industry in China because of years of experience srcid= ' 23360052 ' src= ' /upLoad/et30022302152094.jpg ' width= ' 720px ' />




