Tube mill machine,pipe mill machine,stainless seel welded pipe
China Cut to Length Machine Manufacturer China Manufacturer
China Cut to Length Machine Manufacturer
Basic Info
Model NO.: WBCTL
Customized: Customized
Advantage: Use Widely
Condition: New
Power: 20kw
Voltage: 380V 50Hz 3phase
After-Sales Service Provided: Engineers Available
Export Markets: Global
Trademark: WB
Transport Package: Export Standard Packing
Specification: EXPORT QUALITY WITH CE SGS CERTIFICATE
Origin: China
Product Description
Cut to Length Machine Manufacturer
Application
Cut to length line apply to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials. The thin sheet cut to length line is also divided into two kinds, due to different material of coils strip thickness, strip width, cutting speed and material of disc cutter.
Technical Data
MaterialStrip thicknessStrip widthMax. Coil weightShearing speed
CR galvanized steel plate, carbon steel and etc.0.2-1.5mm900-2000mm10T0-100m/min0.5-3.0mm900-2000mm10T0-100m/min0.2-2.0mm400-1000mm10TMax 100m/min0.3-3.0mm500-1250mm30TMax 100m/min0.6-4mm500-1500mm30TMax 80m/min1-4mm900-1500mm30T0-60m/min2-8mm900-2000mm30T0-60m/min3-10mm900-2000mm30T0-60m/min6-20mm600-2000mm35T0-30m/min8-25mm600-2000mm45T0-20m/min
Machine components
No.NameQty1Coil car12Decoiler13peeler table14precision leveler15Loop Bridge16Side Guide Roller17Servo feeder18Shearing Machine19Conveyor table110stacking table111lifting table112Hydraulic Systems113Pneumatic System1

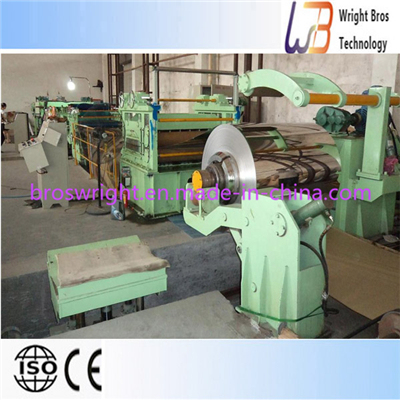

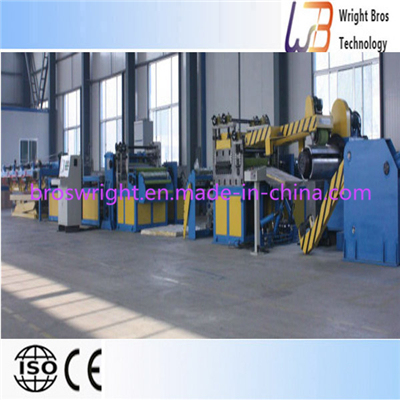

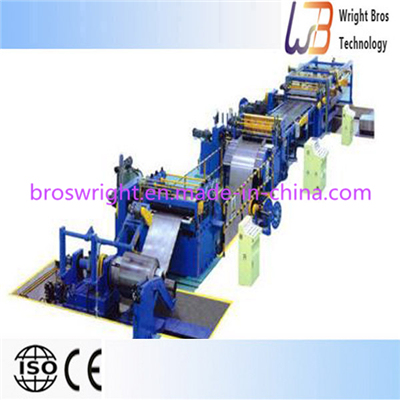

Pictures for reference
After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
Spare Parts
Promptly providing spare parts and wearing parts.
Upgrade
Improve technology and upgrade of equipments.
Other service
Raw Materials
Supply of raw materials made in China with good quality, quick delivery and reasonable price
Finished products purchase
FAQ
1)Q: What is the Warranty Machine ?
A: For our roll forming machine , we have 1 year warranty. If any quality problems in this period ,we will take>2)Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
3) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
4)Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
5) Q: Do you sell>A: No, most of our machines are built according to customers specifications, using top brand name components.
6) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. We are MADE IN CHINA's gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
