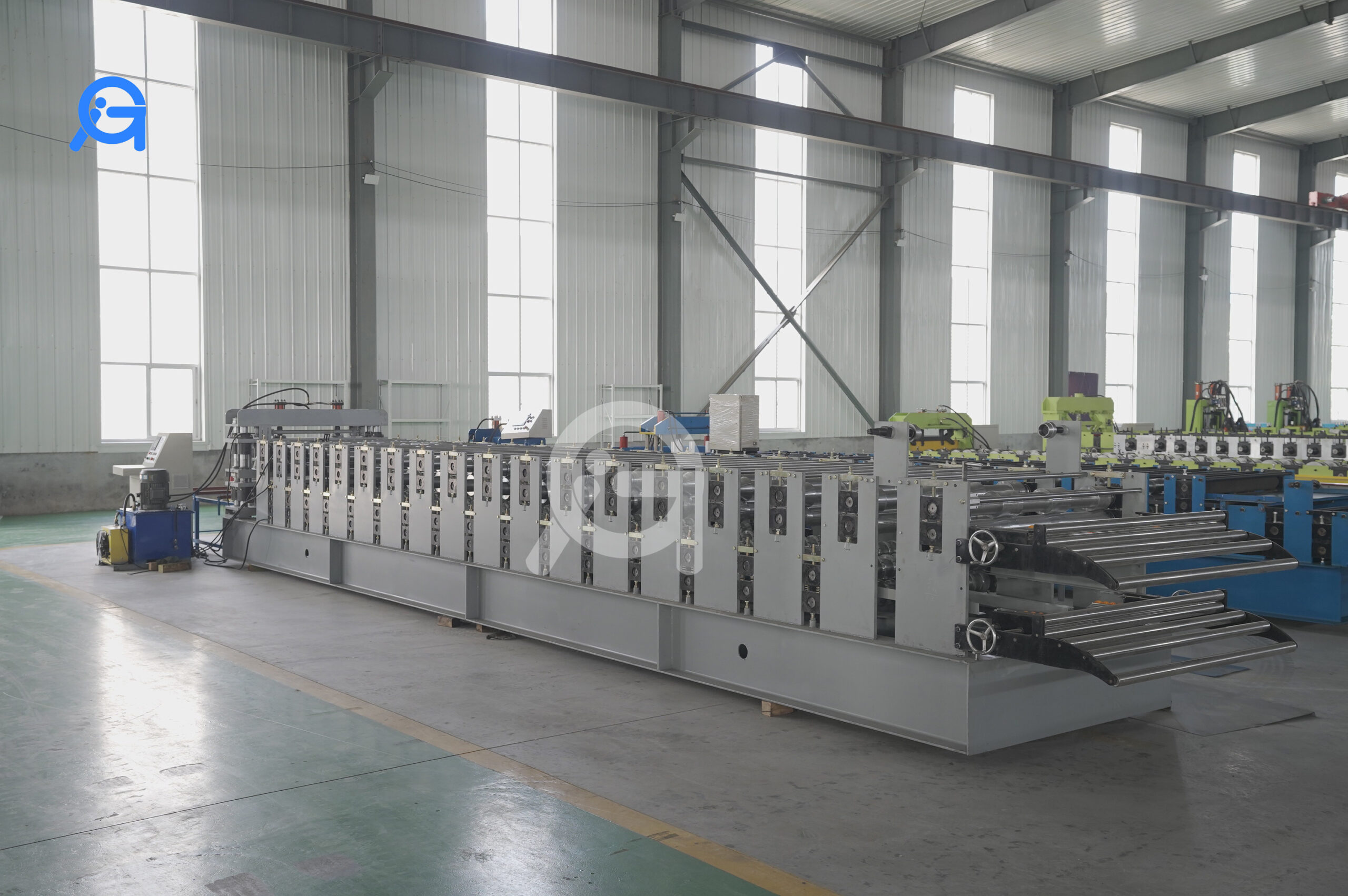

China Double layer roll forming machine

Detailed parameters of double layer roll forming machine
1.Material of the profile: GI or color steel
2.Thickness range: 0.3-0.8mm
3.Main motor power:7.5kw, AC motor, motor inside of main machine (Brand:Guomao of China) (according the final design)
4.Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase or customized
5. Roller material:ASTM1045 chrome plated surface with chrome,CNC,
6.Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
7.Machine roll forming speed: not less than 15m/min
8.Transmission: by chain, one inch, single line
9.Roll former has leveling bolts in the base for adjust the leveling
10.Machine base frame adopt H beam welding steel
11.In the main Roll Forming Machine have 2 buttons for urgency stop if happen any malfunction.
12.Machine adopts new station to make machine more strong
13.To avoid accidents, all of drive part adopt protect cover

14.Color of machine: Blue and yellow (or base on customer request)
