ERW High Frequency Welding Pipe Making Machine, Welded Pipe Mill

Work Flow:

uncoiling -- shearing and butt welding -- material accumulating -- flattening forming system -- high frequency induction welding machine -- inside and outside burr removing frame -- water cooling system -- sizing system -- leveling system -- speed testing -- Turkish frame -- saw cutting -- running out table

Main components:

1 Uncoiler2 Accumulator3 Shearing and butt welding machine4 Forming machine5 Roller System of Forming6 Seam Guide7 High Frequency Induction Welding Machine8 Roller System for Moving9 Burr Removing Frame(Inside and outside)10 Water cooling system11 Sizing machine12 Roller System of Leveling13 Speed Testing Wheel14 Turkish Frame15 Auto flying saw controlled by Computer16 Run-out table17 Electric control Equipment18High frequency welding machine

Machine
Model Pipe Diameter Pipe Size Thickness Speed Main
Power Welding
PowerWG-16Φ0.3~ Φ1.0inch
(Φ8mm~Φ25mm)7?mm
20?0mm0.3 ~ 1.2mm100m/Min22Kw60KwWG-25Φ0.3~ Φ1.2inch
(Φ8mm~Φ32mm)7?mm
25?5mm0.3 ~ 1.5mm90m/Min37Kw100KwWG-28Φ0.5~ Φ2.0inch
(Φ13mm~Φ50mm)10?0mm 40?0mm0.5 ~ 1.8mm90m/Min75Kw100KwWG-32Φ0.5~ Φ2.5inch
(Φ13mm~Φ63.5mm)10?0mm 50?0mm0.5 ~ 1.8mm90m/Min110Kw150KwWG-50Φ0.8~ Φ3.0inch
(Φ20mm~Φ76mm)16?6mm 60?0mm0.7 ~ 3.0mm80m/Min132Kw200KwWG-60Φ1.2~ Φ4.0inch
(Φ32mm~Φ102mm)25?5mm
80?0mm1.0~ 3.5mm70m/Min160Kw200KwWG-76Φ1.0~ Φ5.0inch
(Φ25mm~Φ127mm)20?0mm
100?00mm1.0~ 3.5mm70m/Min185Kw200KwWG114Φ1.6~ Φ5.0inch
(Φ40mm~Φ130mm)35?5mm
100?00mm1.5~ 5.0mm60m/Min160Kwx2400KwWG155Φ2.0~ Φ6.0inch
(Φ50mm~Φ155mm)40?0mm
120?20mm1.5~ 5.0mm60m/Min160Kwx2400KwWG165Φ2.0~ Φ7.6inch
(Φ50mm~Φ195mm)40?0mm
150?50mm2.0~ 6.0mm45m/Min200Kwx2500KwWG219Φ3.5~ Φ8.60nch
(Φ89mm~Φ219mm)70?0mm
170?70mm4.0~ 8.0mm40m/Min200Kwx2600KwWG273Φ4.0~ Φ10.7nch
(Φ100mm~Φ273mm)80?0mm
215?15mm4.0~ 12mm25m/Min320Kwx2800Kw

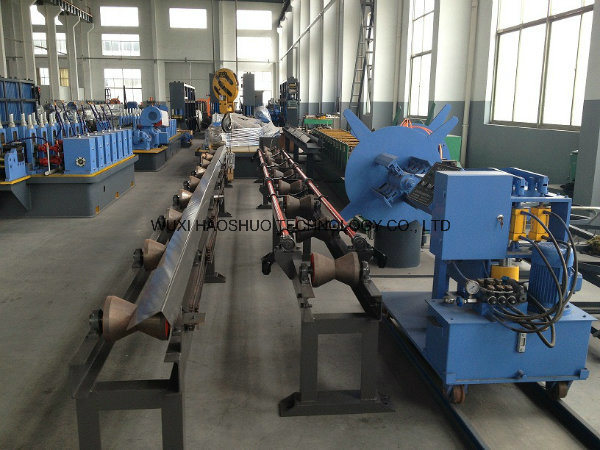

UNCOILER
