China ERW Stainless Steel Pipe Welding Machine

Basic Info

• Product Name: Steel Pipe Welding Machine
• Outer Diameter: 10mm-219mm
• Thickness: 0.35mm-7.0mm
• Big Diameter Pipe Thickness: 3mm-16mm
• Seam or Seamless: Seam Pipe
• Trademark: Lixing
• Specification: as per actual design
• HS Code: 8515219100

• Material: Carbon Steel, Alloy Steel,Ss
• Forming Speed: 20-120m/Min
• Big Diameter Pipe Od: 114mm-508mm
• Big Diameter Pipe Material: Q235, Q325 20 16mn
• Customized: Non-Customized
• Transport Package: by Sea
• Origin: Jiangsu, China

Product Description

ERW Stainless Steel Pipe Welding Machine

Product Description
High-frequency pipe welded machinery is the special equipment to product welded pipe of low carbon steel or low alloy steel material, that is feeding the steel belt into the machinery, turning into the tube by forming roller, then using high-frequency proximity effect and skin effect to make the tube reach the welding temperature, and completing the welding under the squeezing roller extrusion, then through cooling, sizing and straightening to get the required steel pipe.

Technical process

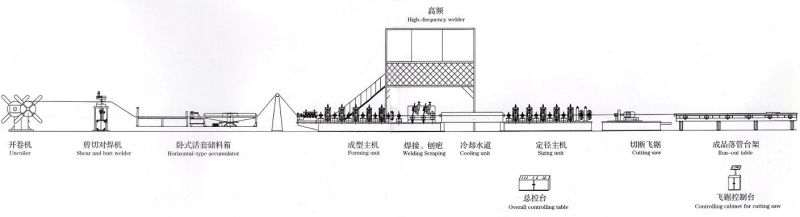

Uncoiler--> Straightening end--> Pipe straightener--> Shear&Welder--> Storage--> Forming, H.F. welding--> sizing mill--> Flying saw--> Pipe straightener used for original pipe--> Flattenner--> Hydraulic or scatheless test equipment--> Roller conveyor and conveyor table-->Packing device--> Electric control system

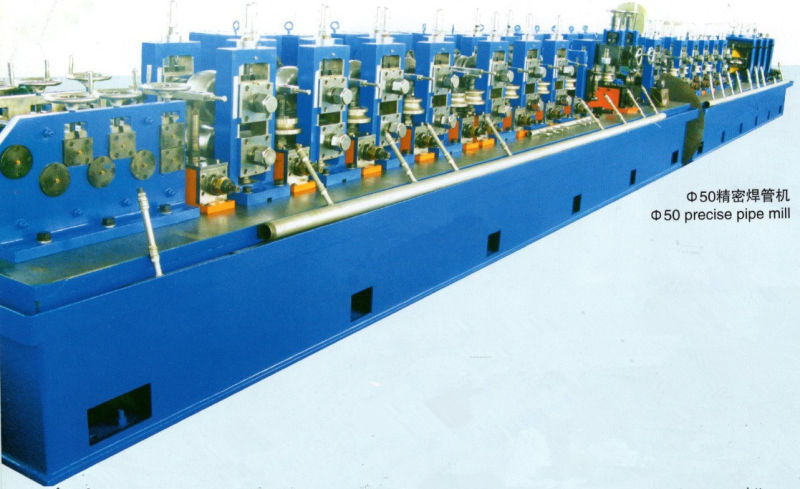

Characteristic of High precision pipe welded mill
> High speed: Machine speed can be up to 10-120m/min
> Ultrathin-wall thickness: thickness of φ25 tube mill can weld the tube with minimum thickness of 0.35mm
> High precision: with fine-adjusting device, accuracy of outer diameter is ?.05mm

Technical parameters
of High precision pipe welded millOutput OD(mm)Φ10-φ32Φ12-φ50Φ16-φ63Φ32-φ89Φ60-φ140Φ76-φ165Φ114-φ219Speed(m/min)20-10020-10020-12020-10020-7020-50 Thickness(mm)0.35-1.50.4-2.250.5-3.00.8-3.51.0-4.751.5-5.752.0-7.0Motor power(LW)30(45)110132200132*2160*2220*2HF welder KW100150200300400500600MaterialLow-carbon steel and low alloy steel
of Medium and big diameter straight-seam Pipe forming machineOutput OD(mm)Φ114-φ165Φ114-φ219Φ165-φ273Φ219-φ325Φ219-φ377Φ219-φ426Φ325-φ508Forming Speed(m/min)15-4515-3515-3015-3015-2515-2015-20Thickness(mm)3-83-103-134-144-146-166-16MaterialQ235 Q325 20 16Mn X<=70
Related products

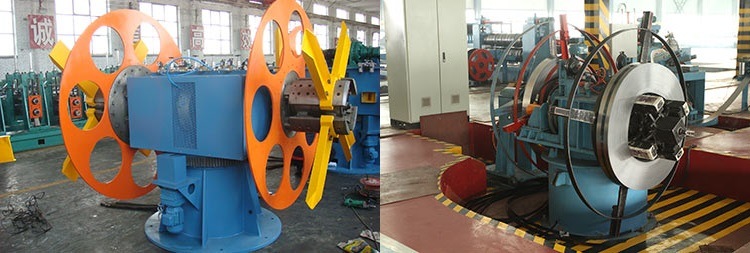

A. Uncoiler/Uncoiling machine

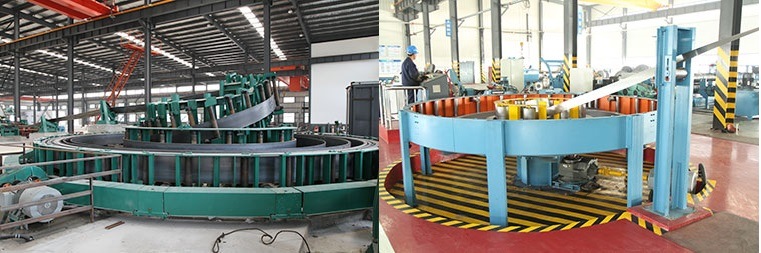

B. Loop/ Accumulator

C. Flying saw/Cutting saw

Any inquiry, please do not hesitate to contact us!!




