China Full-Auto Grinding Mill/Saw Blade Sharpener GM-450 China Manufacturer
China Full-Auto Grinding Mill/Saw Blade Sharpener GM-450
Basic Info
Model NO.: GM-450
Type: Pipe and Tube Bending Machine
Trademark: GMACC
Transport Package: Iron Frame
Specification: Gm-450
Origin: China
Product Description

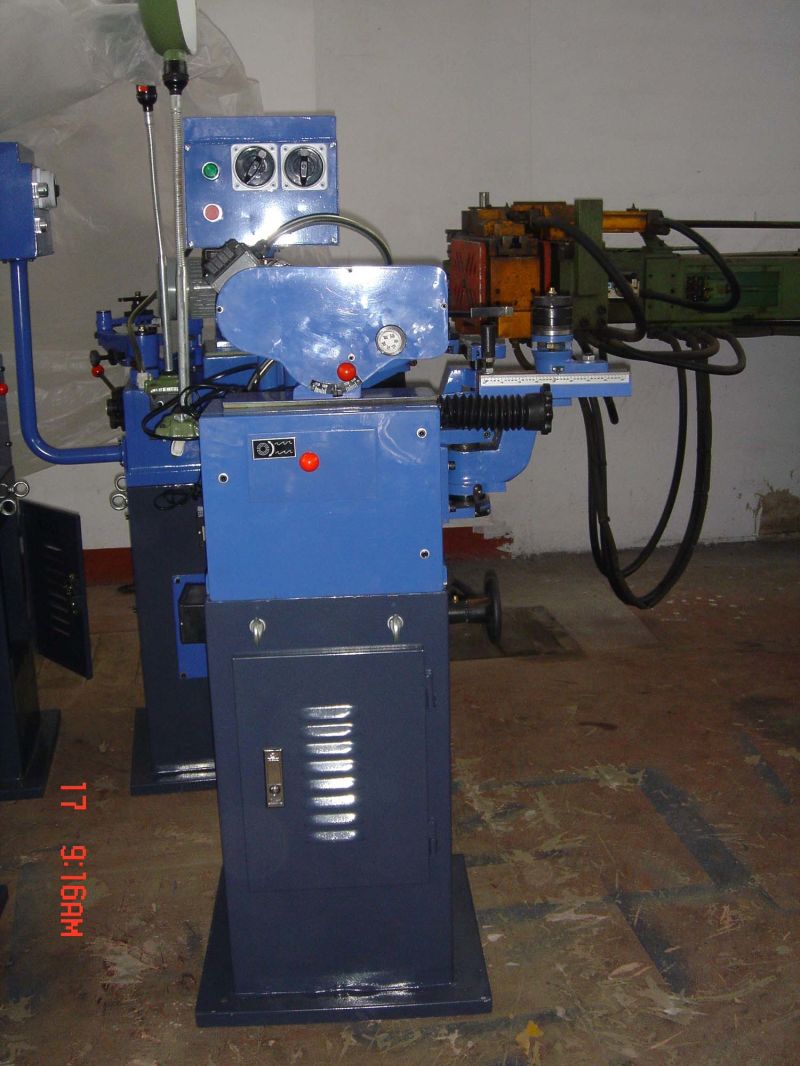

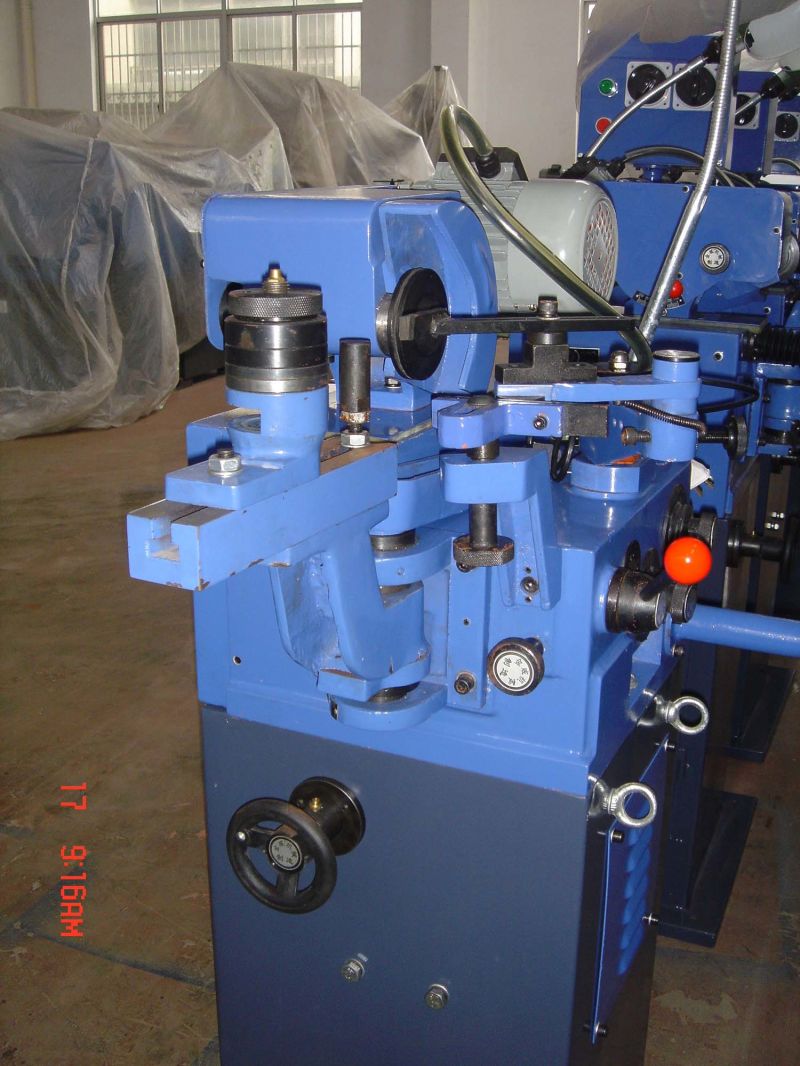

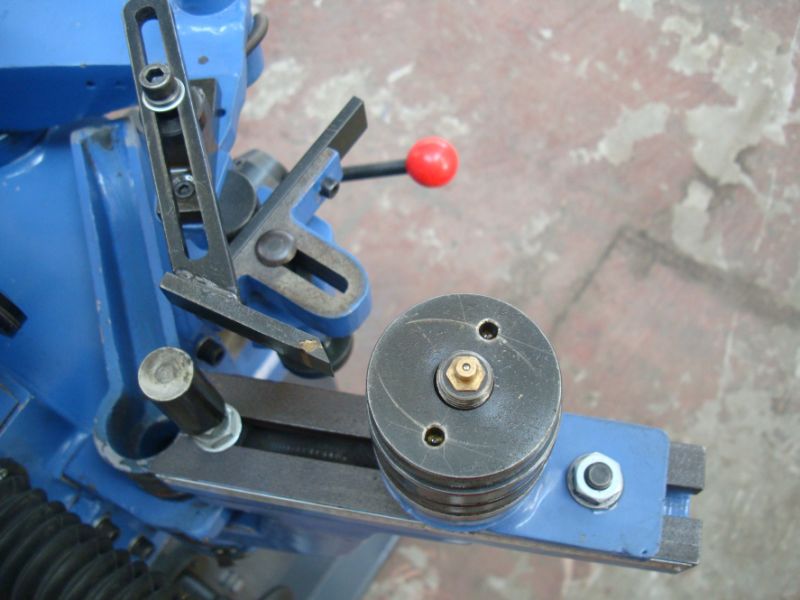

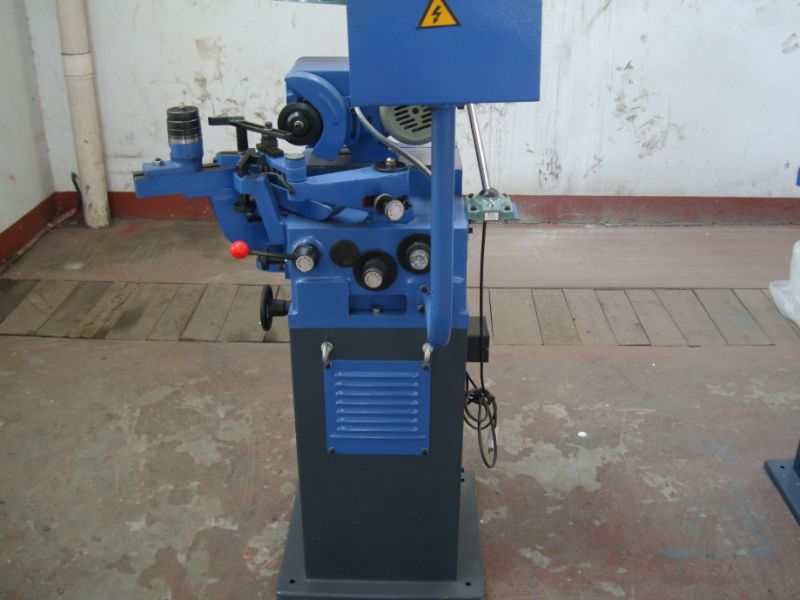

GM-450 grinding mill machine is used for grinding the saw blade. It can be used for opening the teeth and grinding as the customers' choice.
1. The construction of the machine
The body of the machine is welded by the steel plate. The upper box and the gear-box are the aluminum casting. They are processed with our Italian machine. The spare parts are very accurate.
2. The principle of design
The motor drives the grinding wheel. The head of machine can be adjust up and down. It can grind and chamfer without changing the grinding wheel.
3. The main performance
The performance is stable. It is easy to operate and adjust the cutting angle, teeth distance and teeth depth of the saw teeth. The precision is high. It adjust quickly according the different thickness of the saw blade.
4. The main technical parameters
The outer diameter of the saw blade 50-450mm
The teeth distance Max. 25mm
The teeth depth Max. 8mm
The thickness of saw blade Max. 8mm
The rotating speed of grinding wheel 4200prm
5. The configuration
A). Motor Made in Taiwan
B). Other electric parts Made in Taiwan.
