China Fully Automatic Silicon Steel Coil Cut to Length Line
Basic Info
Model NO.: JTXE-LL-400Z
PLC: Mitsubishi, or Siemens
Certificate: ISO
Warranty: 1 Year
After-Sell Service: Yes
Trademark: XIEER
Transport Package: Seaworthy Packing
Specification: 15*2.5m
Origin: Jiangyin
HS Code: 84623920
Product Description
JTXE-LL-400Z Cut to Length Line
Cut to Length Line Process Introduction
Two cutting two punching silicon steel cutting line(advanced type) with step-lap is a fully automatic production line for the silicon steel sheet shearing, consists of the following parts:Uncoiler, Feed buffer, Feeder, Punch parts, Shear parts, Conveyor, Material machine, Pneumatic system, Electronic control system.
Cut to Length Line Equipment Composition
1) single-head hydraulic material rack
2) non pit slope guide device
3) sending material equipment
4) punching machine
5) cutting machine
6) conveyor
7) simple seperating device
8) pneumatic system
9) electric cabinet and operation platform
Parameters
1,Precision high speed cut-to-length linenonstop cutting
Two cutting two punching(ordinary type)Model NameJTXE-LL-300JTXE-LL-400Cutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)1516.5
Two cutting two punching(advanced type)Model NameJTXE-LL-300ZJTXE-LL-400ZCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)2021.5
2,Precision high speed cut-to-length line nonstop cutting
Two cutting>Model NameJTXE-X-300JTXE-X-400JTXE-X-600Cutting Thickness(mm)0.23-0.350.23-0.350.23-0.35Cutting Width(mm)40-30040-40060-600Cutting Length(mm)350-9999350-9999350-9999Feeding Speed(m/min)180180180Cutting Burr(mm)≤0.02≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025?.025Cutting Length Accuracy(mm)?.1?.1?.1Total Motor Power(KW)1213.513.5

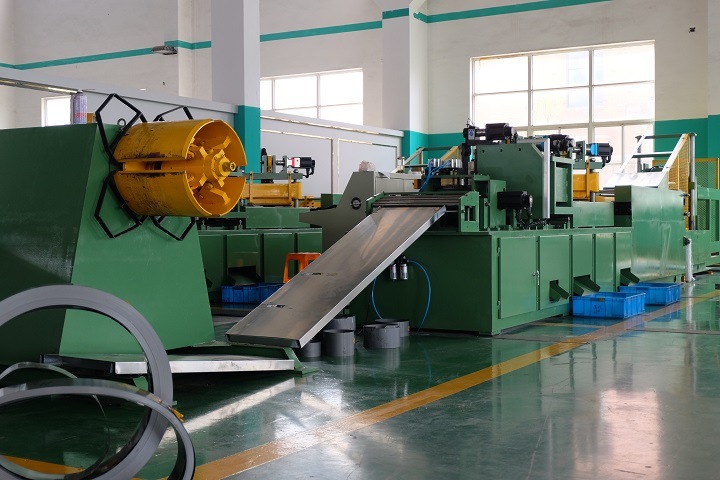

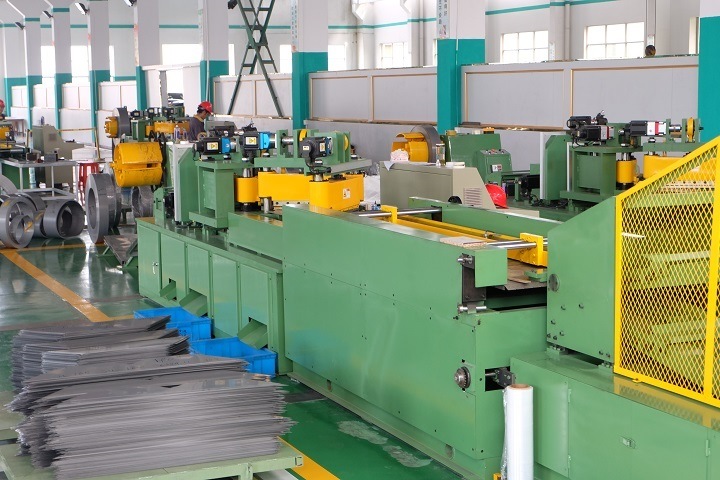

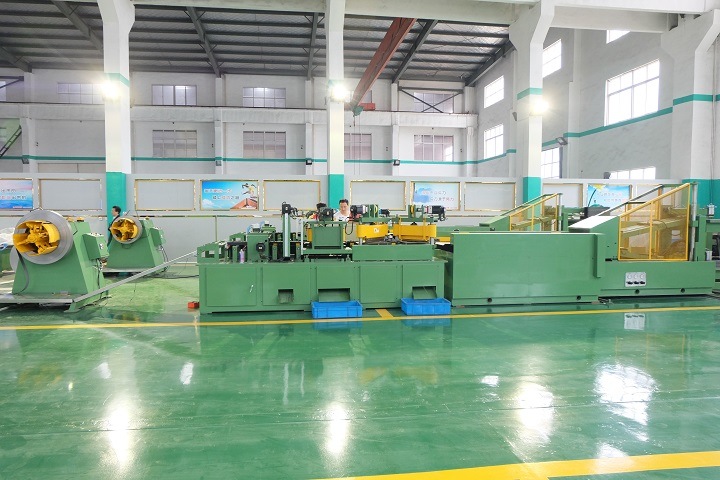

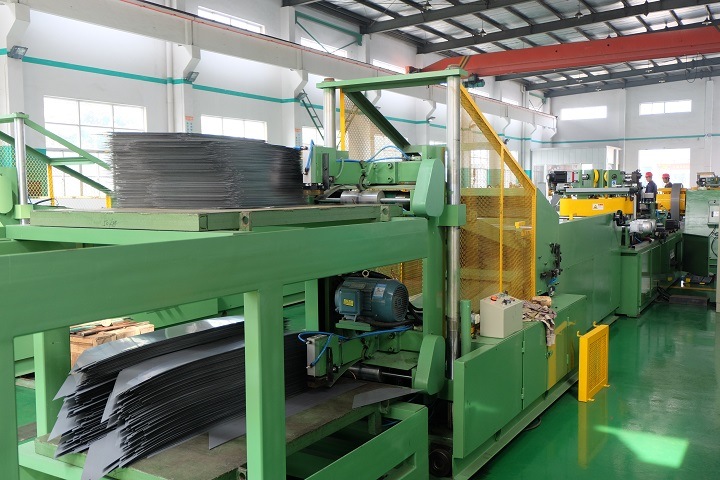

Cut to Length Line Machine Pictures
Two cutting two punching
Cut to Length Line Certificate
Cut to Length Line Packaging
