China Galvanized Steel Coil Cut to Length Line Machine

Basic Info

Model NO.: EN 0.3-1.2 mm

Shearing Accuracy: 0.5 mm/2000mm

Pile Length: 1000-5000mm

Power Supply: 380V/50Hz/3pH

Max Feeding Speed: 60 M/Min

Trademark: Ensource

Transport Package: Steel Wire Fixed

Specification: 500 ~ 1500mm

Origin: China

HS Code: 84623990

Product Description

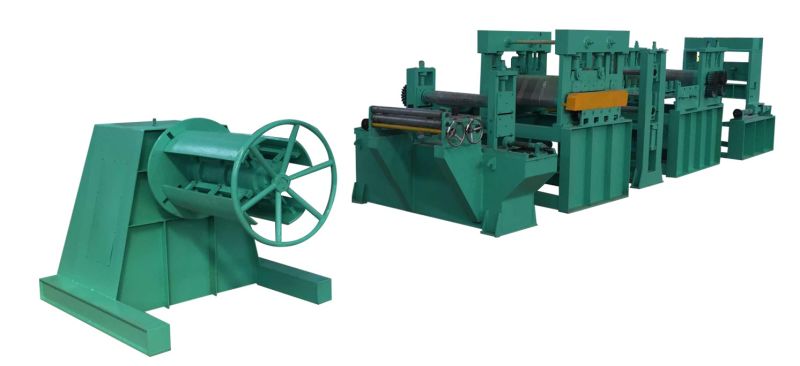

Galvanized Steel Coil Cut to Length Line Machine
I.Technical parameters and configuration instructions
1. Technical parametersApplicable material: cold rolled strip, galvanized sheet, stainless steelMaterial quality: standard steel coilThe strength of the material бb≤345 N/mm2,бs≤490 N/mm2Material thickness: 0.3 ~ 1.2 mmMaterial width: 500 ~ 1500mmCoil diameter: diameter 480--610mmCoil diameter: ≤ф1500mmCoil weight: ≤10T
2. Product parametersShearing accuracy: ≤?.5 mm/2000mmLeveling accuracy ≤?.5mm/m2Pile length: 1000-5000mmDiagonal : ≤?.5 mm/2000mmShear length: 1000-5000mm
3. other parameterspower supply: 380V/50Hz/3Phmaximum feeding speed: 60 m/mincutting frequency: 20-30 Zhang /min (with 2000mm long sheet count)production line covers an area of about 23m * width 4.5m

II. Unit composition
The unit configuration is mainly composedhydraulic feeding trolleyCantilever uncoiling machine13 roll leveling machineStorage buffer pit (user's own)Rectifying deviceThe roller servo feeding machineThe new electric shearsConveyer beltPneumatic feeding stacking deviceServo electric control system Hydraulic systempneumatic system (gas source user owned)
III. Machine composition details:
1. Hydraulic feeding trolley
Used to place material roll. The roll wear sleeve positioning in stand.

1.1 technical parameters:Bearing capacity: 10 tonsMovement speed: 7 m/minMobile motor power: 1.5 KWWorking pressure: lifting cylinder is 12Mpa
1.2 Components: the feeding trolley is composed of the walking chassis and the V type lifting frame.Hydraulic lifting mechanismMotor drive system with a speed reducerGuide railV type support platform
1.3 properties: the material trolley for feeding. It sat>2. The cantilever expansion uncoiler: coiling tension in uncoiler reel.
2.1 Technical parameter:Bearing capacity: 10 tons 10 tonsThe core shaft up shrinking: 50 mm (Φ480~Φ610mm)Main motor power: 2.2 kwCylinder working pressure: about 12MPa.
2.2 Material stand machine consists of a core shaft, a base and a transmission systemframethe core shaft and its structuremotor drive systemclutch deviceauxiliary support
2.3 Performance: the core shaft is composed of a supporting shaft, a wedge sliding seat and four arched plates which are connected with the rotating cylinder. The drive shaft rotates in reverse direction, which is composed of a motor, a speed reducer, a sleeve and a rigid clutch.
In order to enhance the rigidity of the core shaft, the uncoiler is equipped with auxiliary support; the auxiliary support is driven by hydraulic cylinder.
The core shaft plate can be installed to satisfy different requirements of coil diameter size

3 Roller leveling machine:
3.1 technical parameters:The number of flat rollers: 13 (including a pair of rollers)Leveling roller diameter: 85 mmLeveling roll width: 1500 mmLeveling roller material: 45#Leveling roller hardness: more than HRC50 - 55 (grinding chrome plated) Main motor power: 7.5kw
3.2 Component:AC motor,reducerframe
3.3 Performance: This machine is composed of 1 sets of roller and 11 roller, motor speed reducer and bracket base. Roller top roller 6, lower roller 7. Leveling machine and fixed in a rigid slider, slider, respectively, by two pairs of screw pair drive the lifting and tilting, to change the leveling gap and leveling angle, namely: work roll forming harmonic attenuation of straightening and improve the leveling quality sheet. Leveling machine work roll for initiative, the transmission order: motor driven gear reducer, will be transferring power to a leveling roller.
Leveling roller is the key part of the machine, which is controlled by strict process.

4. Storage buffer pit (user's own)

5. Correction device: fixed sheet, prevent deviation.
Middle range: 500 ~ 1500mm
Performance: used for feeding>6. The roller servo feeding machine:
the structure of the roller, the roller diameter 115mm, manual screw adjustment.>components: frame, work roll, servo motor.function: for boards into the flat shears, and precise control of cutting length. Work roll manual screw adjustment control, roller surface hanging rubber processing, enhanced friction.motor: servo 5.5KW
7. Shears: Q11-3*1600 electric shears. Used for precise cutting of plate after leveling.

8. Conveyor belt:
8.1.Technical parameter:Motor power 2.2kwThe conveying speed is less than 60 m/minConveyor belt length 3000 mm
8.2 Component:flat belt, rackmotor drive system
8.3 properties: shear plate shearing machine under the first fall in the independent transmission belt, flat belt and the plate conveyor to stamp material.

9. Pneumatic material stacking device:

Consists of cylinder, rack, blanking regulating mechanism, a longitudinal and transverse double positioning mechanism, composition, palletizing length 1000-3000mm. its role is cutting the sheet stacking, by a cycloid pin wheel reducer drive, can move forward and backward, and can according to user requirements, the sheet stacking automatic together.
Blanking platform with lifting device, convenient stacking. Hydraulic action, length 3000mm.
