China Galvanized Steel Coils Thickenss 0.2-2X1250mm Simple Slitting Line

Basic Info

Model NO.: RF-ST

Applicable Process: Final Inspection

Suitable Substrates: Metal Coil Sheet

Packaging Material: Film and Steel

Brade: Suhang

Trademark: Suhang

Transport Package: Film and Steel

Specification: CE, SGS, ISO9001: 2008

Origin: Wuxi, Jiangsu

HS Code: 8455229090

Product Description

Galvanized Steel Coils Thickenss 0.2-2x1250mm Simple Slitting Line

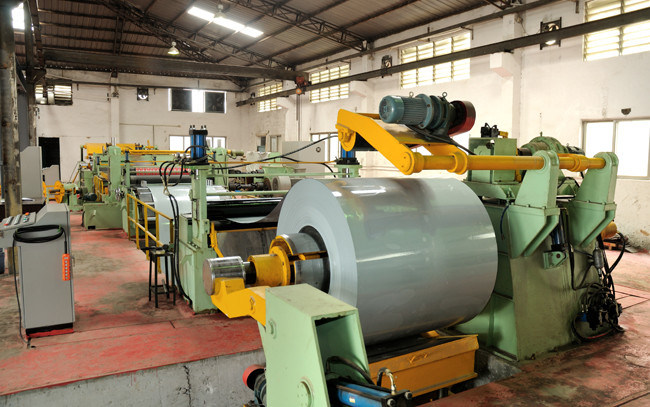

1.Metal Slitting Machine Introduction

Slitting line for cutting narrow coils from main coils. For widths of up to 3000 mm, thicknesses of up to 25 mm and speeds of up to 200 m/min.
The lines are composed of high-precision slitters with quick tooling change for slitter, tensioning device and recoiler. High-capacity recoilers . Extraction from coils without banding. Scrap ballers or scrap choppers. Moving tensioning devices with incorporated levelling.
Totally computer-controlled with diagnosis, automatic coil feed and quality control.
For carbon steel, exposed and non exposed materials , stainless steel, pre-painted steel, aluminium and other metals.

2.Technical Parameter:

NO.
Name
unit
parameters
1
Control model

Frequency conversion control
2
Materials

Galvanized steel/HR/CR
3
Thickness
mm
0.3-3
4
Width
mm
1300
5
Coil I.D.
mm
460-520(custom)
6
Coil O.D.
mm
≤1600
7
Weight
T
8
8
Slitting blade shaft
mm
Φ200
9
Blade specification
mm
Φ220爪?20?0
10
Material of blade

6CrW2Si
11
Line speed
m/min
≤40
12
Power of slitter
KW
22
13
Power of recoiler
KW
45
14
Quantity of strips (Max)

0.3-2mm, 15-5
15
Width tolerance

≤?.05 mm
16
The direction of whole line

from right to left, the operate table faces the machines
17
Power

380V/3Ph/50Hz Customized
18
Operation people

1 technician and 2 general worker
19
Color

green ( Customized)
3.Package Details

ThisMachine is fixed in the container with steel ropes so that the machine is kept from being collided, and treatment for rust-proof, covered by plastic film for the whole machine, spare parts and some small parts packed in wooden box.
