China Hf Staight Seam Pipe Mill, Pipe Making Machine, Tube Mill

Basic Info

Model NO.: 28, 32, 50, 60, 76, 90, etc

Trademark: HAOSHUO

Origin: Jiangsu, China

HS Code: 85152110

Product Description

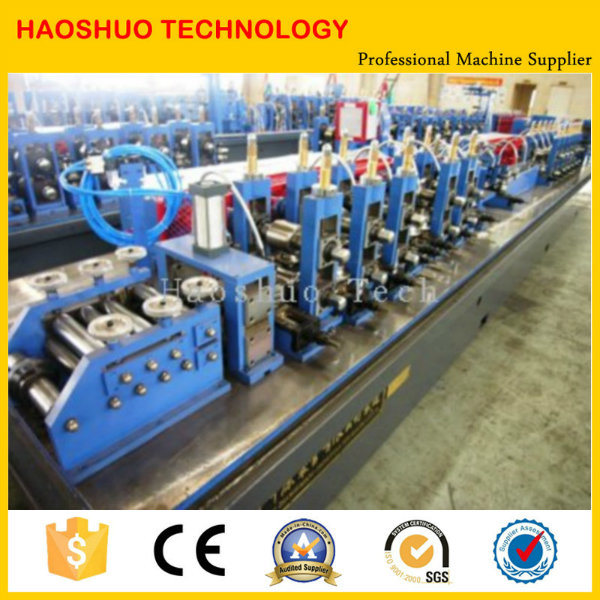

HF Staight Seam Pipe Mill, Pipe Making Machine, Tube Mill

Work Flow:
Uncoiling -- shearing and butt welding -- material accumulating -- flattening forming system -- high frequency induction welding machine -- inside and outside burr removing frame -- water cooling system -- sizing system -- leveling system -- speed testing -- Turkish frame -- saw cutting -- running out table

Main components:
1 Uncoiler
2 Accumulator
3 Shearing and butt welding machine
4 Forming machine
5 Roller System of Forming
6 Seam Guide
7 High Frequency Induction Welding Machine
8 Roller System for Moving
9 Burr Removing Frame(Inside and outside)
10 Water cooling system
11 Sizing machine
12 Roller System of Leveling
13 Speed Testing Wheel
14 Turkish Frame
15 Auto flying saw controlled by Computer
16 Run-out table
17 Electric control Equipment
18High frequency welding machine

Machine seriesMachine
Model Pipe Diameter Pipe Size Thickness Speed Main
Power Welding
PowerWG-16Φ0.3~ Φ1.0inch
(Φ8mm~Φ25mm)7?mm
20?0mm0.3 ~ 1.2mm100m/Min22Kw60KwWG-25Φ0.3~ Φ1.2inch
(Φ8mm~Φ32mm)7?mm
25?5mm0.3 ~ 1.5mm90m/Min37Kw100KwWG-28Φ0.5~ Φ2.0inch
(Φ13mm~Φ50mm)10?0mm 40?0mm0.5 ~ 1.8mm90m/Min75Kw100KwWG-32Φ0.5~ Φ2.5inch
(Φ13mm~Φ63.5mm)10?0mm 50?0mm0.5 ~ 1.8mm90m/Min110Kw150KwWG-50Φ0.8~ Φ3.0inch
(Φ20mm~Φ76mm)16?6mm 60?0mm0.7 ~ 3.0mm80m/Min132Kw200KwWG-60Φ1.2~ Φ4.0inch
(Φ32mm~Φ102mm)25?5mm
80?0mm1.0~ 3.5mm70m/Min160Kw200KwWG-76Φ1.0~ Φ5.0inch
(Φ25mm~Φ127mm)20?0mm
100?00mm1.0~ 3.5mm70m/Min185Kw200KwWG114Φ1.6~ Φ5.0inch
(Φ40mm~Φ130mm)35?5mm
100?00mm1.5~ 5.0mm60m/Min160Kwx2400KwWG155Φ2.0~ Φ6.0inch
(Φ50mm~Φ155mm)40?0mm
120?20mm1.5~ 5.0mm60m/Min160Kwx2400KwWG165Φ2.0~ Φ7.6inch
(Φ50mm~Φ195mm)40?0mm
150?50mm2.0~ 6.0mm45m/Min200Kwx2500KwWG219Φ3.5~ Φ8.60nch
(Φ89mm~Φ219mm)70?0mm
170?70mm4.0~ 8.0mm40m/Min200Kwx2600KwWG273Φ4.0~ Φ10.7nch
(Φ100mm~Φ273mm)80?0mm
215?15mm4.0~ 12mm25m/Min320Kwx2800Kw
