China High Frequency Tube Straight Seam Welding Pipe Mill, Pipe Making Machine China Manufacturer

China High Frequency Tube Straight Seam Welding Pipe Mill, Pipe Making Machine

Basic Info

Model NO.: welding pipe mill

Precision: High Efficiency

Warranty: 12 Months

Material: Carbon Steel, Stainless Steel

Pipe Wall Thickness: 0.5-2.0mm

Useful Life: 25 Years

Trademark: Haoshuo

Transport Package: Nude Packing

Specification: 29*1.5m

Origin: China

HS Code: 8515219100

Product Description

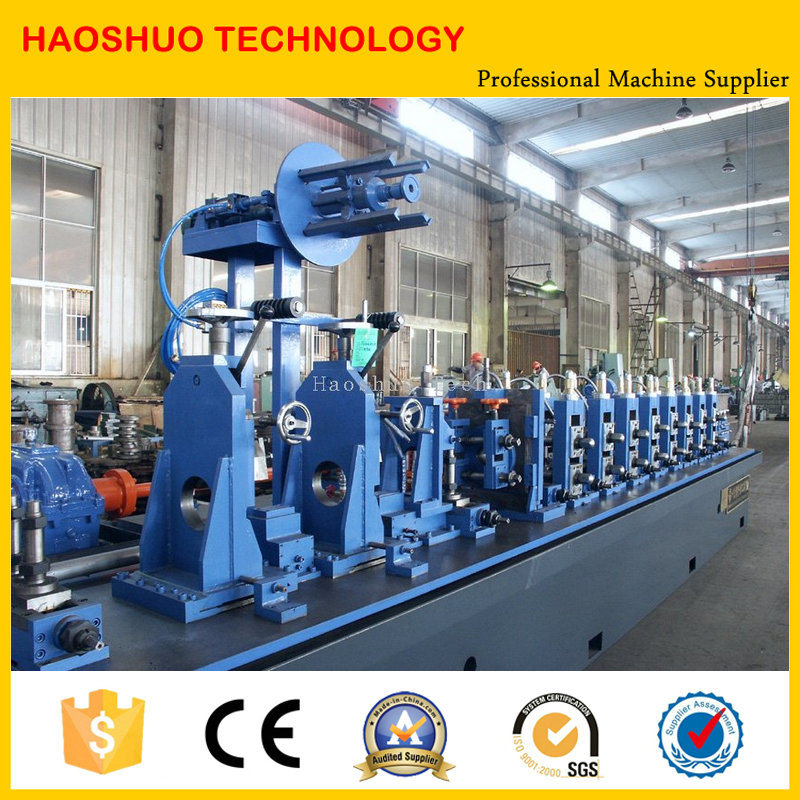

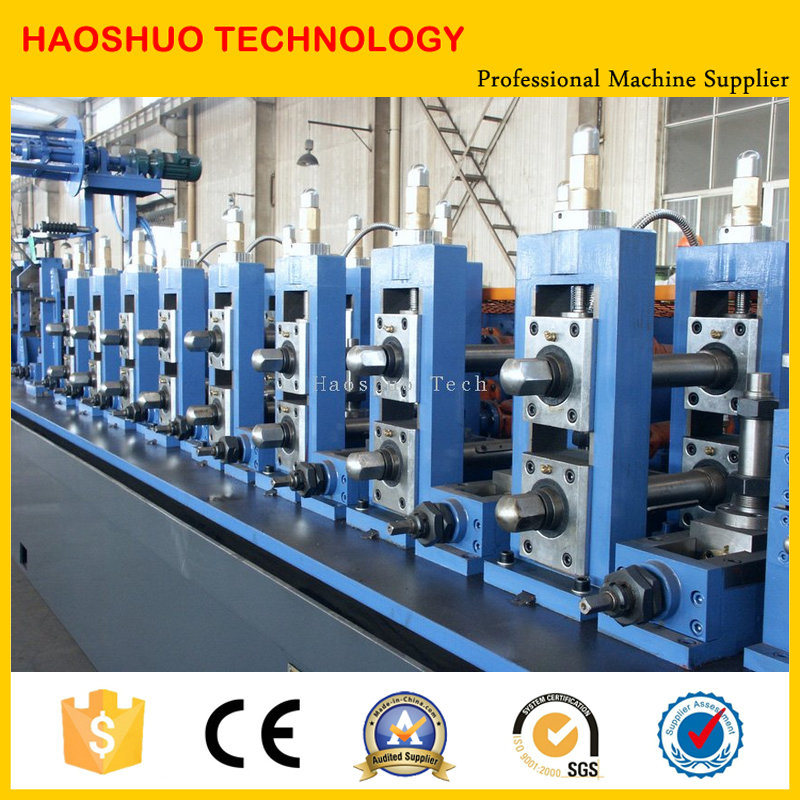

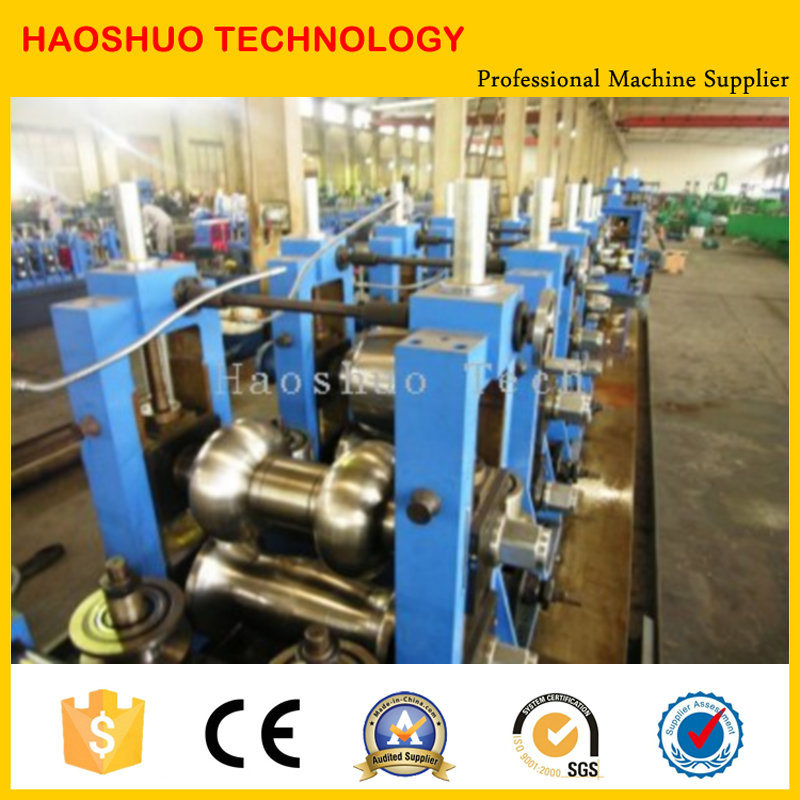

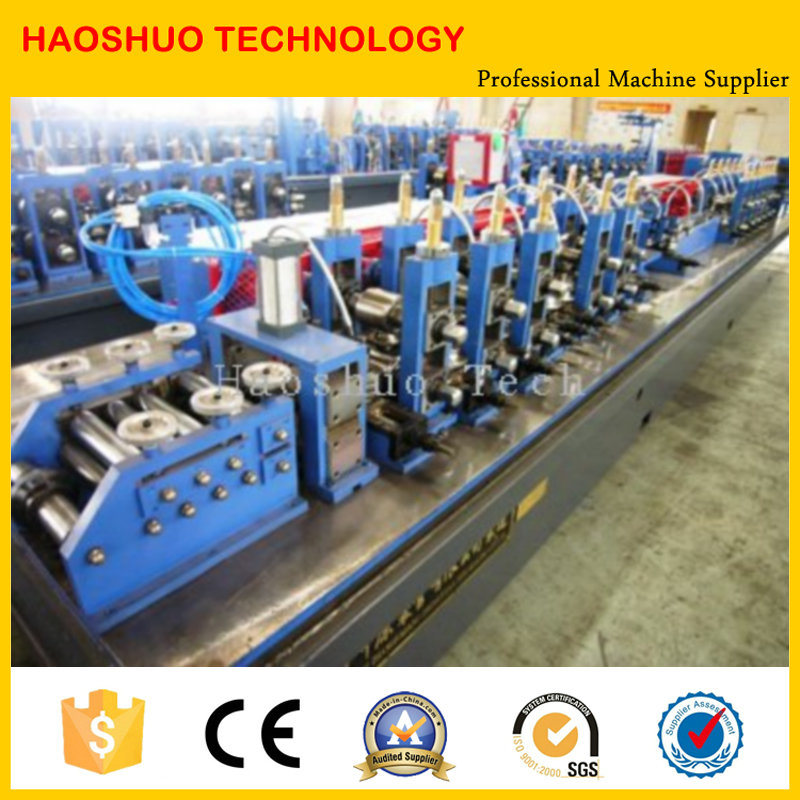

High frequency tube Straight Seam Welding Pipe Mill, Pipe making machine
Craft Flow:
uncoiling→shearing and butt welding→material accumulating→flattening→forming system→high frequency induction welding machine→inside and outside burr removing frame→water cooling system→sizing system→leveling system→speed testing→Turkish frame→saw cutting→running out table

Main components:1Uncoiler2Accumulator3Shearing and butt welding machine4Forming machine5Roller System of Forming6Seam Guide7High Frequency Induction Welding Machine8Roller System for Moving9Burr Removing Frame(Inside and outside)10Water cooling system11Sizing machine12Roller System of Leveling13Speed Testing Wheel14Turkish Frame15Auto flying saw controlled by Computer16Run-out table17Electric control Equipment1818High frequency welding machine
The technical parameters of Precision High Frequency Longitudinal Welded Pipe Mil:Equipment TypeOutside Diameter(mm)Thickness (mm)Production Rate (m/min)ZY167.6-160.3-1.00-100ZY2010-250.3-1.50-100ZY3213-380.6-1.80-100ZY4516-500.7-2.00-90ZY5020-63.50.8-3.00-80ZY6025-761.0-3.20-80ZY7632-891.2-3.750-80ZY8935-1001.2-4.50-70ZY12550-1302.0-5.00-60ZY16576-1652.0-6.00-50ZY21989-2193.0-8.00-50ZY273100-2734.0-12.00-45ZY32589-3253.0-12.70-40ZY406114-4064.0-16.00-40ZY508219-5084.0-19.10-40ZY610219-6104.0-19.10-40ZY660219-6604.0-22.00-40

FAQ:1) Q: Are you manufacturer or trading company?A: We are manufacturer and trading company . 2) Q: Do you provide installing and training overseas?A: Overseas machine install and worker training services are optional. 3) Q: How is your after sales support?
A: We provide technical support>Contact us:
