China High Precision Automatic Cutting Slitting Line Machine
Basic Info
- Model NO.: ZJ3-20
- Raw Material: Steel, Aluminum, Copper, etc
- Width of Plate: 800-2000mm
- Finished Width: >20mm-120mm
- Floor Space(W*L): 25*138*11
- Warranty:>
- Product Name: Slitting Line Machine
- Thickness of Plate: 0.15-20mm
- Roll Weight: 30-40t
- Shearing Velocity: 30-200m/Min
- Power: Hydraulic
- Trademark: Lixing
- Specification: CE, SGS
- HS Code: 84623990
Product Description
High Precision Automatic Cutting Slitting Line Machine

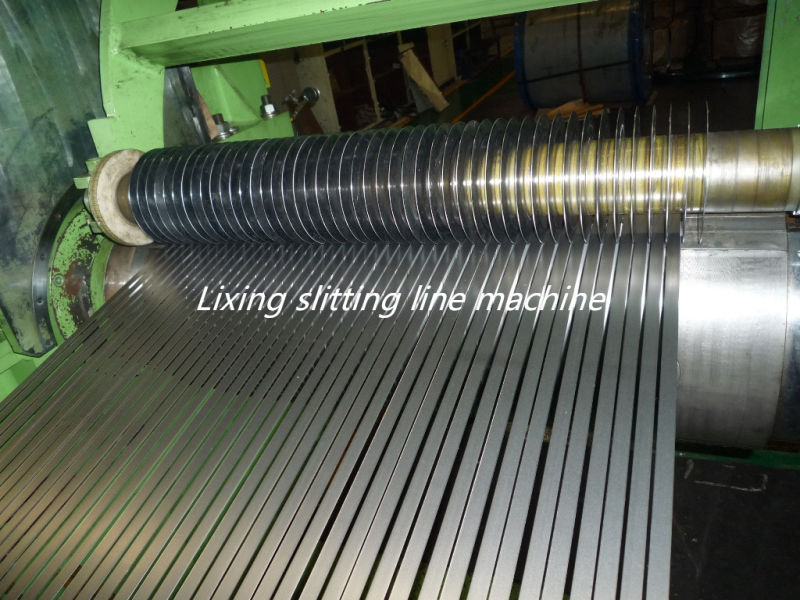

Slitting effect of slitting line machine

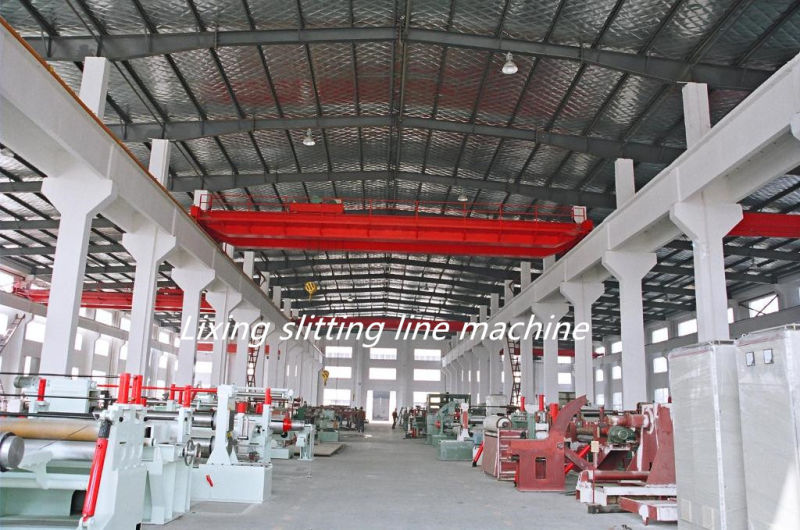

Manufacturer site of slitting line machine

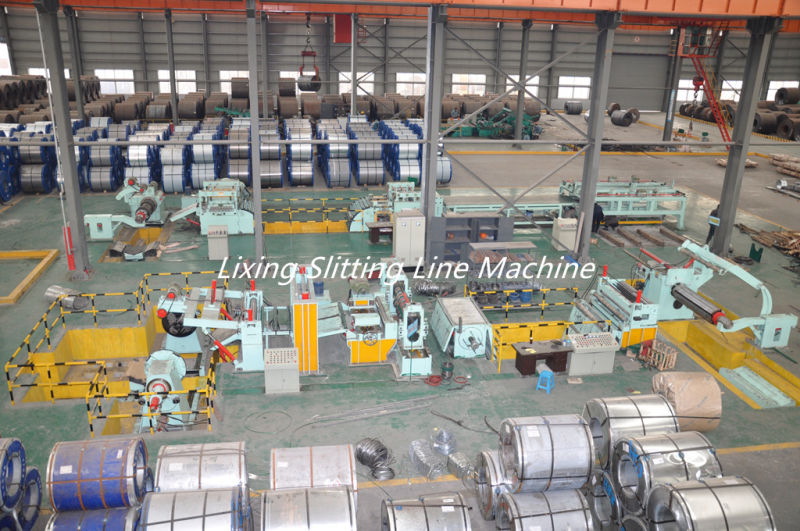

Whole Production Line of Slitting Line Machine
Application
The slitting line machine is suitable for the longitudinal shearing work of the metal belt material, and rewinding the narrow strip into the new roll.
The slitting machine is applied to the thickness of material from 0.2mm to 30mm, width from 300mm to 2100mm. The popular slitter rewinder machine is also applicable for cold rolled steel, tinplate, hot rolled carbon steel coil, silicon steel coil, stainless steel coil and all kinds of surface coated metal plate.
Technological Process
-->Material uploading Car
-->One-armed Feeding Machine
-->Leading end, Pressing end, shovel end, two rollers feeding
-->End cutting
-->Deviation Correcting
-->Slitting machine
-->Wasted strip recoiling
-->Loop
-->Strip Pre-distributing, pressing board damping, straightening tension machine
-->Recoiling, pushing arm
-->Material discharging car
-->Hydraulic control
-->Electric control
Specification sheetThicknesswidthRoll weightFinished widthShearing velocity (MAX)Floor space; L*W0.15-2800-160030T≥20mm200m/min25*100.5-4800-160030T≥40mm120m/min25*101-6800-160030T≥60mm80m/min25*102-8800-200030T≥70mm60m/min30*113-10800-200030T≥80mm50m/min35*113-12800-200030T≥100mm40m/min35*113-14800-200035T≥100mm40m/min36*113-16800-200035T≥120mm35m/min36*115-20800-200040T≥120mm30m/min38*11
Related Products
A. Cut to Length Machine

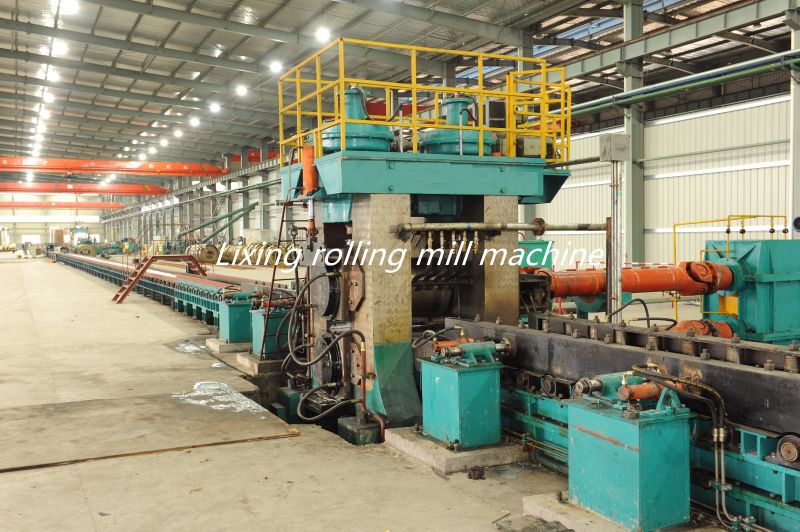

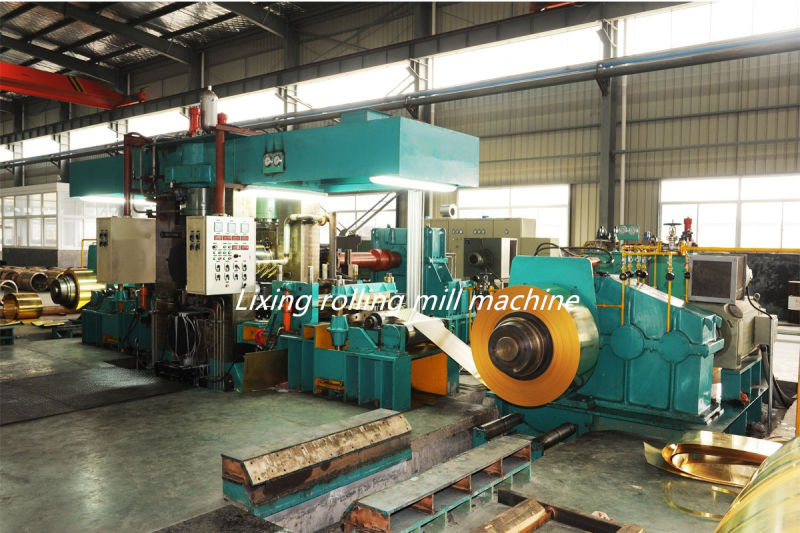

B. Rolling Mill Machine
