China High Precision Slitting Line for Thick Plate China Manufacturer

China High Precision Slitting Line for Thick Plate

Basic Info

Model NO.: EN 0.3-3.0×1500mm

Trademark: Ensource

Transport Package: Steel Wire Fixed

Specification: 0.3-3mm * 1500mm

Origin: China

HS Code: 84623990

Product Description

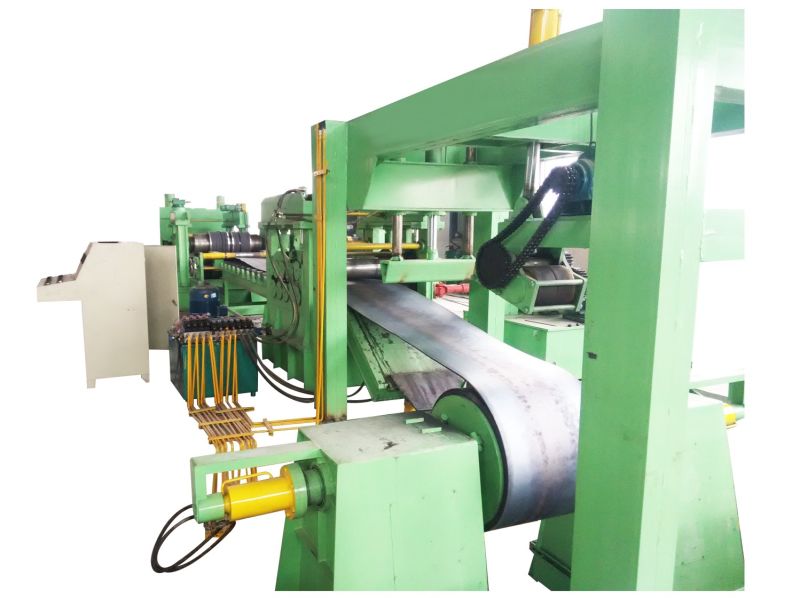

High Precision Slitting Line for Thick Plate

Coil main specification
1Coil material:Stainless steel.2Coil thickness:0.3~3.0mm.3Coil width:300~1500mm.4Coil I.D.:Φ508mm ; Φ610mm(With Cover)5Coil O.D. (max) :≤Φ1800mm6Coil weight (max):≤20T7Line total area (about):28M*9M 8Feed-in direction:from right to left

Equipment composition

Paper machine-Hydraulic Uncoiler Car-Hydraulic Uncoiler-Hydraulic bracket-Feeding guide plate-Pinch roller with Coil head cutting machine-Front looping table-Side guiding (laminating device)-Disc shear-Curling machine-Back looping table-Tension table-Coil divided shearing machine-Recoiler-Hydraulic bracket-Hydraulic recoiler Car-Hydraulic Station System-Electrical Control System,Pneumatic System

Slitter main specification

1. Paper collect machine:1) Operation function: use for collecting packing paper in coil.When need collection paper, put paper tube and turn over several circle.2)Structure : double saddle steel welded .Controlled by torque motor.
2. Hydraulic Uncoiler Car
1) Structure:Steel welded.
2) Structure:Steel welded.
3) Type:Driven by 4 wheels.
4) Transmission power:Gear reduced motor.
5) Lifting power:Hydraulic oil cylinder.
6) Max loading weight:20T
3. Hydraulic decoiler
1) Form by bracket,guide seat,hydraulic expanding axis , hydraulic oil cylinder ,37KW D.C. motor and so>2) Axis structure: form by 4 pieces of wedge slider. Reel is hydraulic powered and expands coil.
3) Decoiler has DC motor so that it could decoil withpinching machine, and avoid spreading because of rotated inertia. Decoiler uses pneumatic disc type brake to work with follow-up machine line speed and have fast brake when outage.
4) Decoiler has fixed pressing fitting, pressing wheel has PU notch so that convenient to pull out packing band and decoil.Pressing wheel is controlled by oil cylinder to lift.
5) Expanding range:Φ470mm~Φ530mm.
4. Hydraulic bracket:
1) Structure:steel welded.
2) Bracket power:Hydraulic cylinder.
5. Feeding guide plate:
1) Form by flexible feeding guide plate with driving cylinder.
2) Assist decoiling and sending material so the head of coil could enter into pinching machine. Guiding plate extends and lifts to a suitable place, guiding head of coil. Plate lifting, stretching is driven by oil cylinder.
6. Pinch roller with Coil head cutting machine
1) Structure and type:Pair roller pinching, steel welded.
2) pair rollers size:?50mm?600mm,2pcs. Roller surface with PU.
3) pressing type:driven by hydraulic oil cylinder
4) Driving power:37KW D.C. motor,and gear box.
5) Structure: form by wallboard,upper and down tool apron and blade,gap adjusting mechanism,synchronous shaft,synchronous gear,hydraulic oil cylinder and so>7. Front looping table1) Type:steel plate welded with channel.Oil cylinder
2) controls platform upper and down.
8. Side Guide(laminating device)
1) Structure:form by vertical guiding roller,slider, width adjusting mechanism,pinch roller and transmission mechanism.
2) Vertical roller size:Φ70?70mm,6 pieces,surface quenching,chrome-plate.
3) Pinch roller size:Φ180?600mm
