China High Pressure Steel Pipe Welding Machine 0-100m/Min

Basic Info

Model NO.: YX20

Size of Pipe: 10-25mm

Thickness: 0.3-1.5mm

Line Speed: 0-100m/Min

Trademark: SAIBO

Transport Package: Sea Packing

Origin: Jiangsu, China

HS Code: 84552210

Product Description

High frequency weld pipe machine line

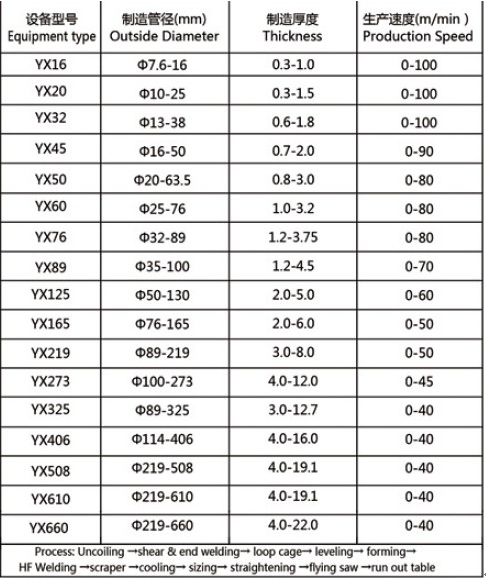

Specifications

1-Tube machine
2-Easy to operation
3- PLC control system
4-High speed
5-High Frequency Welded pipe making machine

Description Capacity:
1-Pipe ID: 10mm-25mm
2-Thickness:0.3mm-1.5mm
3-Speed:0-100m/min

Double-head uncoiler

Briefing: Rotary type to change coils easily with a pneumatic brake
Parameters:
(1)The max. weight of coil:2000kg
(2)The inside diameter of coil:450-520mm
(3)The max. outside diameter of coil :1600mm
(4)The max .width of coil: 80mm

Mechanical segments

1. Steel strip revolving bracket
2.Double-roller feeder
3.Horizontal accumulator of helix metal strip

Power configuration
1. Motor of horizontal accumulator of helix steel strip 5.5kw(AC motor)
2.motor of double-roller feeder 5.5kw(AC motor)

3.main motor power: 45kw
4. high frequency power: 80kw

Computer-controlled flying saw
A. Power of automatic controller: 7.5kw
B. Automatic tracking machine
1.The max .diameter to be cut :Φ25mm
2.The range of cutting length :4m-7m
3.The max. wall thickness to be cut :1.5mm
D. Power of the saw: 5.5kw
E. Accuracy of the cutting length :within?.3mm

Discharging table
