China High-Quality Cut to Length Line China Manufacturer
China High-Quality Cut to Length Line
Basic Info
Model NO.: customized
Production Scope: Parts Production Line
Colour: Customized
Trademark: huafei
Transport Package: Wooden Case
Specification: customized
Origin: Jinan, China
Product Description

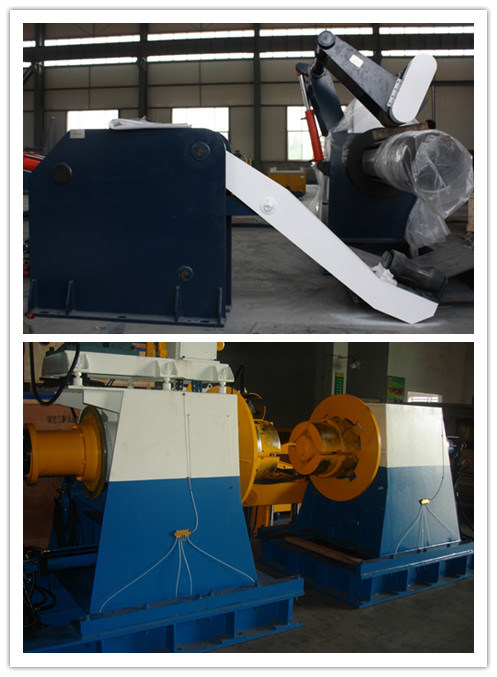

uncoiler: Uncoiling coil plate for further processing.
Material-guiding DeviceGuiding material head into leveler machine.1). Hydraulic swing structure

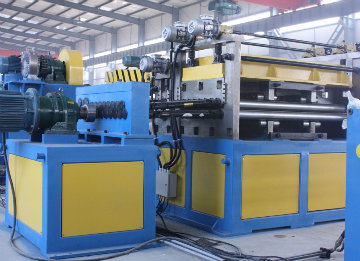

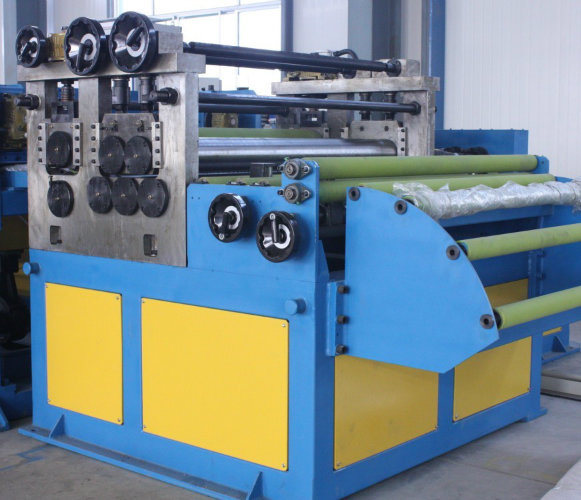

2).Double oil cylinder swingLevelling Machine
5. Loop Table Functiontransiting material head or end, FeaturesRaised and lowered by oil cylinder
Two pairs of Photo sensors installed to control storage volume. 6. Side Guide Correcting strip moving direction and preventing it from deflecting. vertical roll guiding 1).2 groups guiding rolls in total.
2).The width adjusted by hand wheel.
3).The material of guiding rolls is of GCr15. Feeding Machine
Preparing material plate into shearing machine.

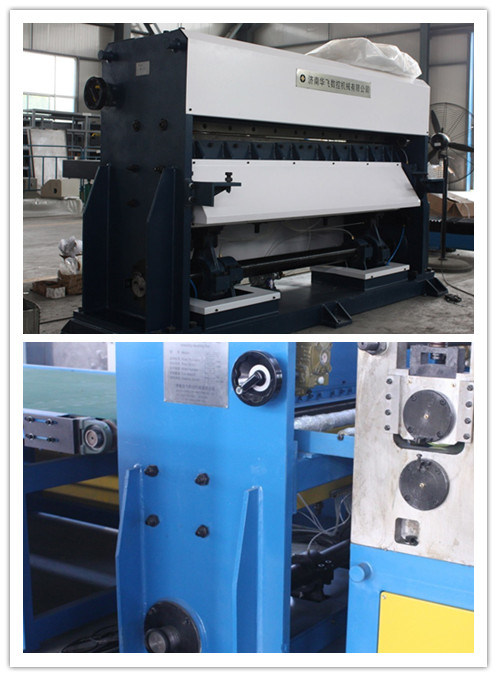

Shearing Machine
Shearing coil plate into required length.

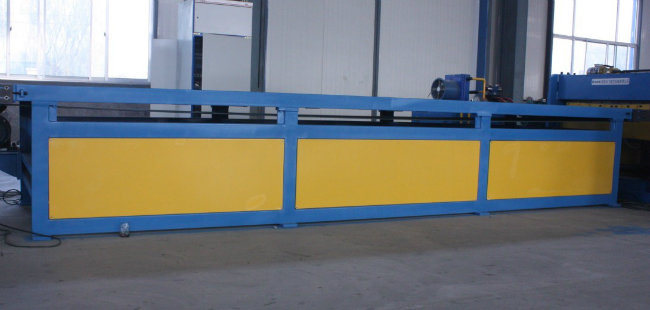

Conveying machine
Conveying plate into stacking device.

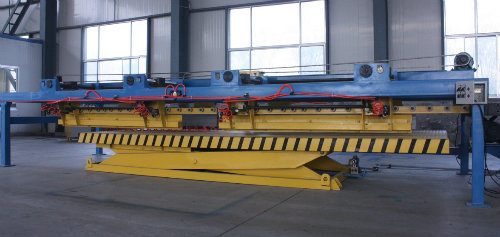

Stacking Device:
stacking the sheared plate.
