China High Speed Cut to Length Line for Thin Plate China Manufacturer

China High Speed Cut to Length Line for Thin Plate

Basic Info

Model NO.: HFCL

Trademark: HUAFEI

Transport Package: Wooden Case

Specification: depend>Product Description

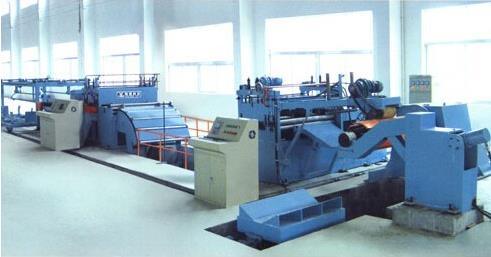

High speed thin plate cut to length line is used for narrow metal plate coil uncoiling, leveling, set length, cutting the set size and stacking. This line used for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and other different kinds of surface plated metal.

Production line is mainly composed of entry coil car, uncoiler, leveler, looping bridge, side guide, servo feeding device, shearing machine, transfer table, stacking device, etc.

The characteristics of this production line is using high power continuous shearing machine, shearing machine running all the time when cut, so cutting fast, response quick; this line also have high degree of automation, high shearing precision, stable and reliable performance, easy operation and maintenance, etc.

MAIN TECHNICAL DATA:

Model No.
ParameterCutting thickness mmcoil width
mmCutting precision/set lengthCutting speed pcs/min/set length
Weight T
Stacking length mm

remarkHFCL-1.2?500.2-1.2100-650?.5/200028pcs/min/20006T250-2000Technical data, configuration can according to customer requirement.HFCL-1.5?000.2-1.5100-800?.5/200028pcs/min/20008T250-3000HFCL-2?500.2-2100-650?.5/200028pcs/min/20006T250-3000HFCL-2?000.2-2100-800?.5/200027pcs/min/20008T250-3000HFCL-2?3000.3-2100-1300?.5/200026pcs/min/200010T250-3000HFCL-3?3000.5-3200-1300?.5/200026pcs/min/200010T250-4000
