China High Speed Narrow Metal Strip Slitting Line for Min. 1mm Strip Width China Manufacturer

China High Speed Narrow Metal Strip Slitting Line for Min. 1mm Strip Width

Basic Info

• Model NO.: JMJZ-360
• Max. Slitting Strip Numbers: 18
• Material Thickness: 0.1-1.5mm
• Slitting Width Tolerance: Less Than /-0.05mm
• Strip Coil Width: as Per Requirement
• Metal Slitting Line Occupation: About 10m X 4.5m
• Specification: good

• Max. Slitting Speed of Slitting Line: 0-150m/Min
• Suitable Material: Ss, Copper, Aluminum, Nickle, Steel
• Min. Slitting Strip Width: 5mm
• Strip Linear Straightness Tolerance: Less Than 1mm/M
• Slitting Burr Height: Less Than 0.03mm
• Trademark: Zhenhuan
• Origin: China

Product Description

Narrow Metal Strip Slitting LineI Description of narrow metal strip slitting line:
This is a slitting line for slitting metal coils into narrow strips and recoiling them into coils again.
It is a complete line for slitting very narrow strips min. width 5mm.
The line speed can reach 150m/min.

II Buildup of narrow metal strip slitting line:
2.1 Hydraulic loading car
2.2 Hydraulic expansion decoiler
2.3 Slitting machine (with scrape winding)
2.4 Tensioning device
2.5 Hydraulic expansion recoiler
2.6 Hydraulic unloading car
2.7 Control system
2.8 Hydraulic system

III Main technical data of narrow metal strip slitting line:

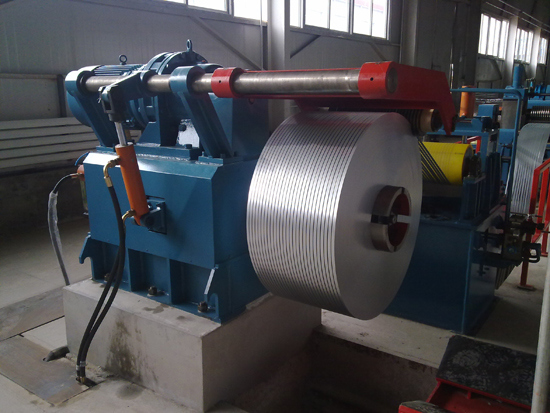

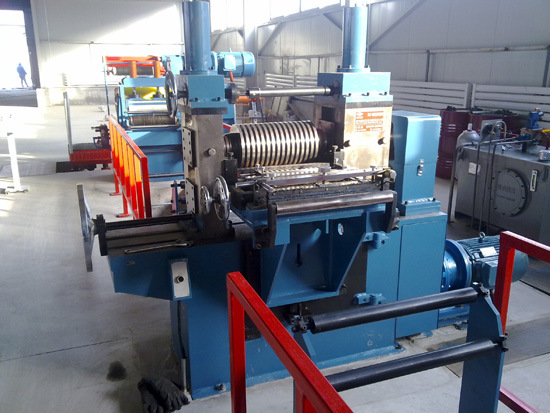

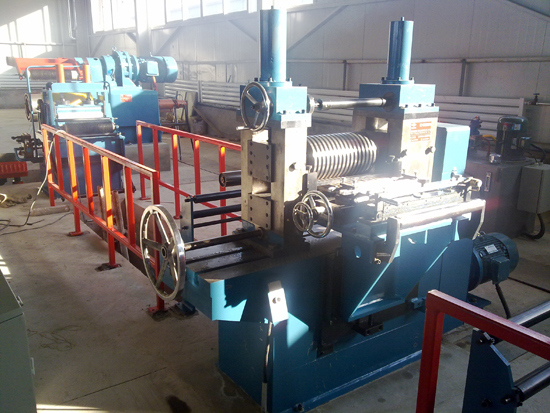

ItemDataSuitable materialCarbon steel, stainless steel, other metalOriginal coil ID508mmOriginal coil ODMax. 1650mmOriginal coil widthMax. 360mmMaterial thickness0.1~1.5mmOriginal coil weight≤2000kgRecoiling coil ID325~375mmRecoiling coil ODMax. 1650mmSlitting strip numbersMax. 18Strip width tolerance≤?.05mmStrip linear straightness tolerance≤1mm/mSlitting speedMax. 150m/minBurr height<0.03mmLine occupationAbout 10m x 4.5mIV More photos of narrow metal strip slitting line:



Kindly please let me know your detailed requirements and then we will quote you exact narrow metal strip slitting line.




