China High Speed OPP Glue Types Slitting Rewind Machine Line China Manufacturer

China High Speed OPP Glue Types Slitting Rewind Machine Line

Basic Info

• Model NO.: JDFQ-1300
• Type: Roll Slitter
• Structure: Cutting Part
• Classification: Tape Slitting
• Suitable Substrates: Film Cutting
• Gross Weight: 1800kg
• Trademark: HWASEN
• Specification: 2.51.8x1.7m
• HS Code: 8441100000

• Application: Commodity
• Work Method: Round Knife Cutting
• Packaging: Case
• Applicable Process: Process Materials
• Packaging Material: Wood
• Slitting Speed: 180m/Min
• Transport Package: Stretch Film Package or Wooden Case
• Origin: Ruian, China

Product Description

JDFQ-1300 high speed OPP glue types slitting rewind machine line
[1]Feature:

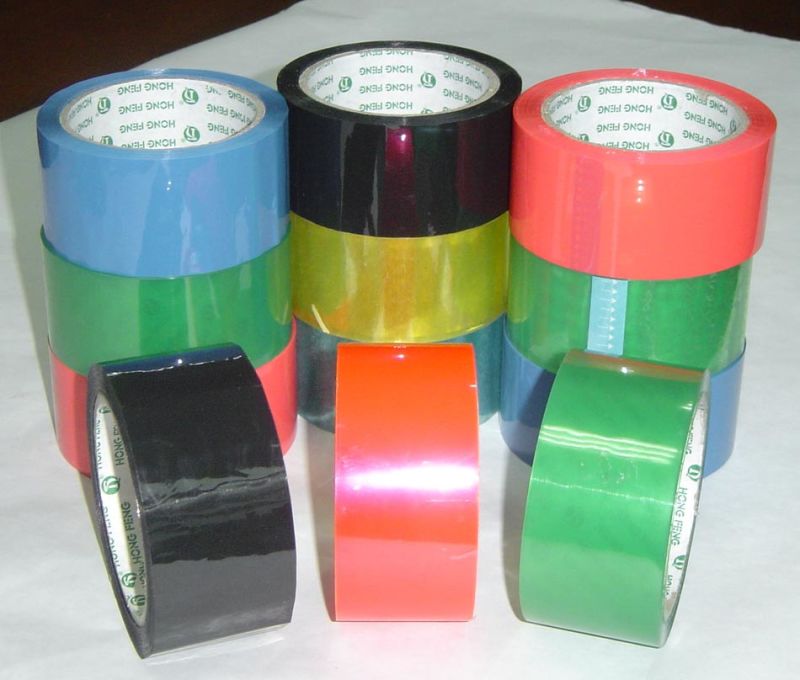

1)Suitable for slitting BOPP adhesive tape/cellophan tape.
2)Full-automatic four-shaft exchange is adopted and the efficiency is improved.
3)Step less speed regulation of frequency conversion and there-step length setting provide smooth rewind operation to ensure accurate rewinding length.
4)It can automatically decelerate and stall when operating at high speed.
5)The unwinding tension is adopted with pneumatic braking control.
6)The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.
7)The curved stretch roll is designed to eliminate tape wrinkling during extension and feeding.
8)Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling
[2].Main technical specification Model JDFQ-1300Wheel width1300mmMax. Unwind diameter 600mmMin. Slit width 12mm Max. Rewind diameter(1roller) 75mm Max. Rewind diameter(3roller) 150mmMax. Rewind diameter(1reels,four shaft change) 300mmMax. Rewind diameter(3reels, two shaft change)75mmSpeed 0-180m/minBlade 0.2X22X60mmTotal power 5KWMachine weight 1800kgMachine dimension2.5?.8?.7m

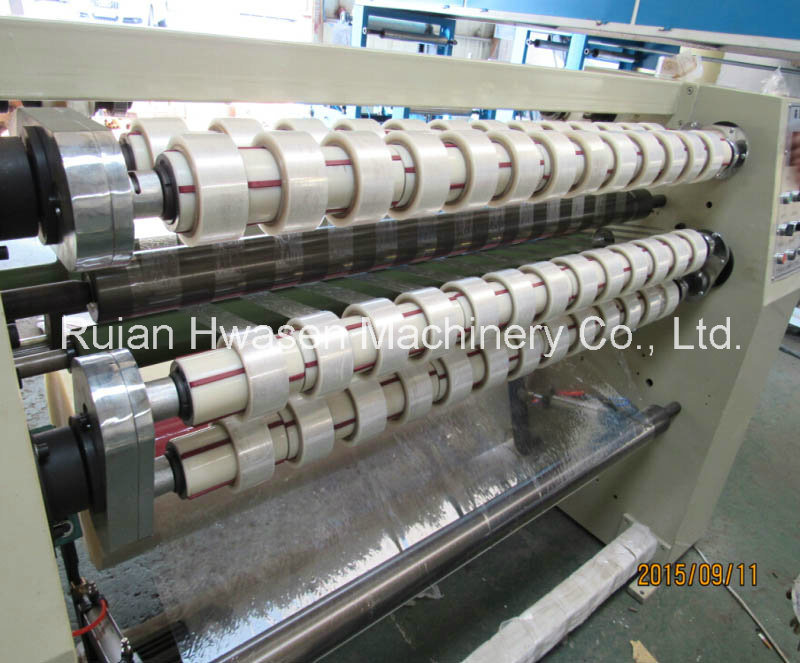

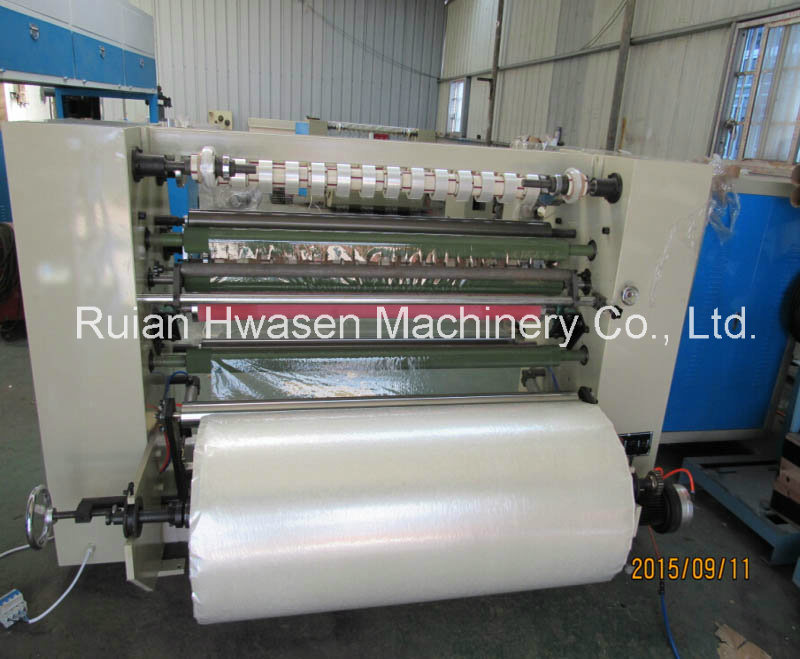

[3]. PICTURES SHOW




