Steel Coil Slitting Machine

I. Main technical parameters

Steel Coil Parameters

MaterialCarbon steel(4mm) and SS(2mm)Tensile strengthδb≤450Mpa,δS≤260MpaSteel thickness0.4-4.0mmSteel width 500-1600(Max)Steel coil I.D φ508mmSteel coil O.D φ2000mm(Max)Steel coil weight25T(Max)

Slitter Parameters

Knife pivot diameterφ220mmKnife pivot material40CrBlade specificationφ220爪?60?0mmBlade Material6CrW2Si

Slit Parameters

Max slit quantity5 pcs (4mm); 20pcs(0.4mm)Width precision≤?.05mm/2M

Other Parameters

Power380V/50Hz/3PhLine speed0-100m/minCapacityAbout 250 KwWhole line Dimension25m(L)X8m(W)Operator needed1.mechanical engineer ,2.common workersLine directionFrom right to left(Face to machine)

II. Overflow

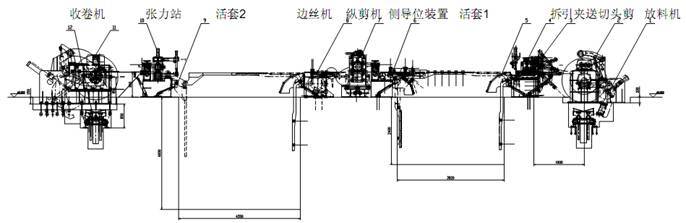

From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car

III. Composed device

Name

Quantity

Entry coil car

1 unit

Hydraulic Decoiler

1 pair

Hydraulic Press and pinch device

1 unit

Hydraulic cutter

1 unit

Looper 1

1 unit

Side guide device

1 unit

Slitter

1 unit

Scrap winder

1 unit

Looper 2

1 unit

Tension stand

1 unit

Recoiler

1 unit

Exit coil car

1 unit

Hydraulic system

1 set

Electrical system

1 set
