China High Speed Transformer Step-Lap Core Cut to Length Line
Basic Info
Model NO.: HJX400, 600, etc
Trademark: HAOSHUO
Transport Package: Seaworthy Packing
Specification: CE
Origin: Jiangsu, China
HS Code: 84623920
Product Description
Transformer Crgo Coil Core Step-lap Cutting Line

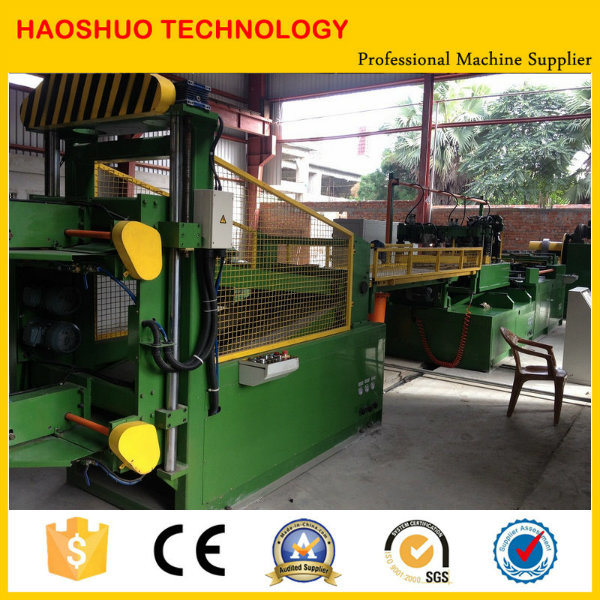

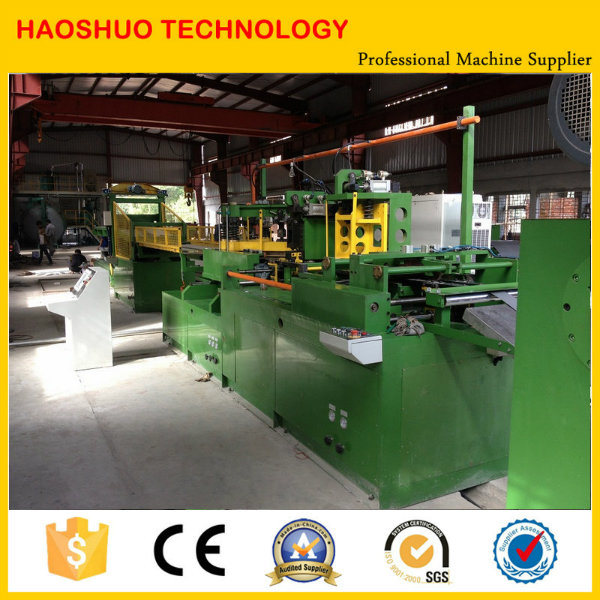

This production line is automatic cut to length line for silicon steel coil, is necessary production equipment for transformer lamination manufacturing. It can cut 45 degree and 135 degree shear, transverse and longitudinal progressive shear, hole punching and v notching. The line can be suitable for cutting series shapes of work pieces used in the manufacturing of transformer industry.
Our production line has high quality with high speed. All electric elements use International famous brand products. The line has high stable performance with high precision.
Work Process:

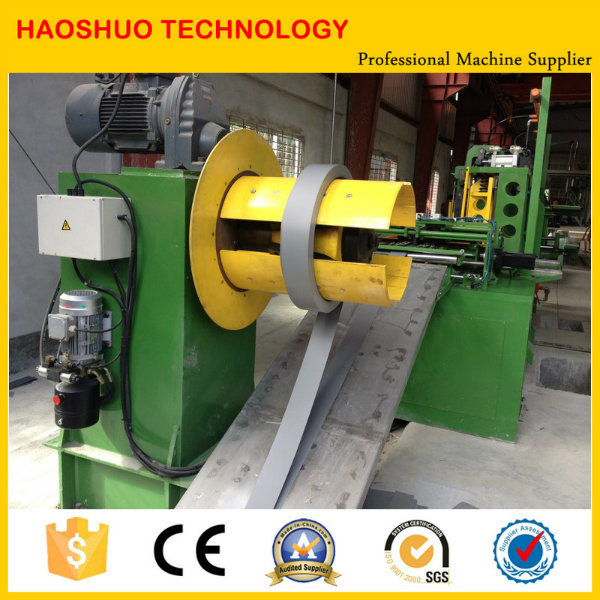

Coil decoiling -- buffer plate for coil storage -- servo feeding for length measuring -- electric hole punching -- servo positioning -- servo V notching -- cutting coil sheet into required shapes by 2 shearers -- work pieces feeding & collecting -- automatic product stacking
Main Technical DataItemParameterCutting width40-440mm, 60-660mmCutting thickness0.23-0.35mmMax coil weight1000kg, 2000kgCutting piece length320-2500mm, 400-3500mmMax feeding speed240m/minLength accuracy?0.2mmCutting burr≤ 0.02mmCutting angle precision?0.025 degree
