China Horizontal Label Sticker Paper Slitting Line China Manufacturer

China Horizontal Label Sticker Paper Slitting Line

Basic Info

Model NO.: HCH1-1700

Applicable Process: Process Materials

Suitable Substrates: Adhesive Label, Paper, Film, Tape, Aluminum Foil

Packaging Material: Wood

Speed: 200 M/Min

Precision: 0.03 mm

Motor: Servo Motor

Certification: Ce, TUV

Machine Body Thickness: 45mm

Inverter: Delta (Taiwan)

Ultrasonic Rectification: Pausource (Taiwan)

Auto. Length Counter: Omron (Japan)

Pneumatic Element: AirTAC(Taiwan)

Knife: Knipia (Korea)

Trademark: LOYAL

Transport Package: Pallet

Specification: 2700*3050*1580mm

Origin: China

HS Code: 8441100000

Product Description

Horizontal Label Sticker Paper Slitting Line

Video
https://youtu.be/upSwExmbCMc

Technical parameter

ModelHCH1-1700Slitting effective width30-1700mmSlitting speed200m/min Unwinding roll diameterφ1000mmRewinding roll diameter2*φ600mmMain motor power7.5kw Total power8.5kwPrecision ?.03mmMachine weight3500kgMachine overall dimension2700*3050*1580mm
Use

This type high speed slitting machine is the ideal processing machine for high demand of speed and precision of PE, PP, PET, PVC and other plastic film, paper, composite film, aluminum film, color film, all kinds of adhesive tape and label.

It is the ideal model of film, thin film processing and color printing company especially electronic products and up-market boutique packaging products.

Characteristic

This roller material slitting machine is a high speed, high precision equipment. It plus PLC based>Main configuration

PLCSIEMENS (GERMANY)TOUCH SCREENWEINVIEW (TAIWAN)MAIN MOTORSERVO MOTORINVERTERDELTA (TAIWAN)MAIN PNEUMATIC ELEMENTAIRTAC (TAIWAN)MAIN BEARINGNSK (JAPAN)PROPORTIONAL VALVESSMC (JAPAN)WEB GUIDE(ULTRASONIC RECTIFICATION)PAUSOURCE (TAIWAN)AUTOMATIC METER COUNTER(DIGITAL)OMRON (JAPAN)KNIFEKNIPIA (KOREA)LOW-VOLTAGE ELECTRICCHINT or SCHNEIDER STEEL PLATE THICKNESS(MACHINE BODY)45mm

Included: Auto tension controller(PLC control),
1 servo motor,
Web guide,
Auto metering,
Auto loading

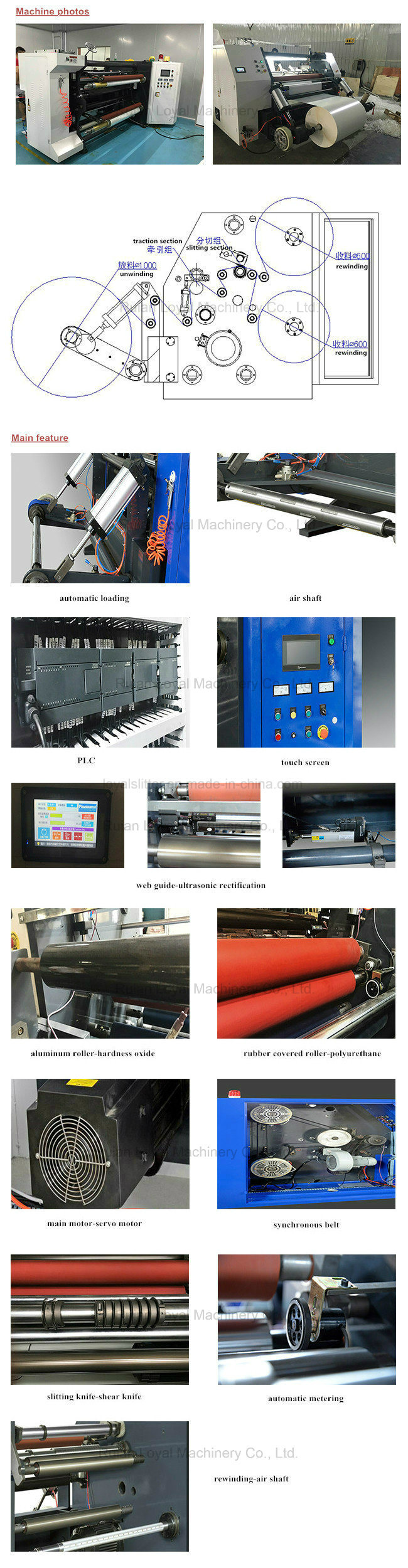

More details of horizontal label sticker paper slitting line

Why us

• Product:

------Technology
Mature and experienced technical team.
Continuous learning, R&d and innovation meet CE and TUV.

------Quality
Using effective and high pricision slitting.
Steel plate heavy machine body(45mm). Ensure machine runs smoothly at high speed.
User-friendly control and long service life.

------Detail
High tech and quality components.
Quality is our life. From the very beginning to very end Loyal people attach great importance to quality controlling and repeated testing before deliver.

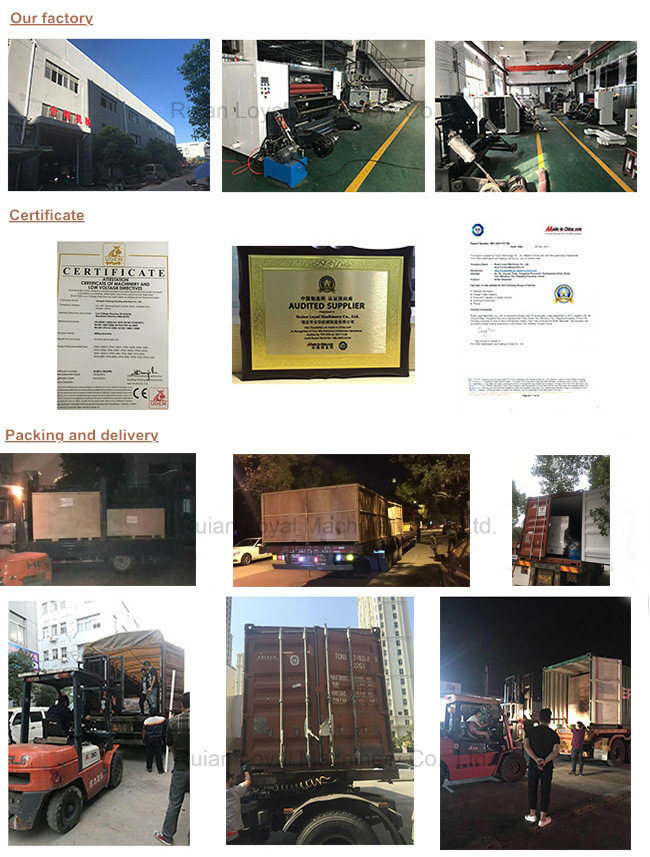

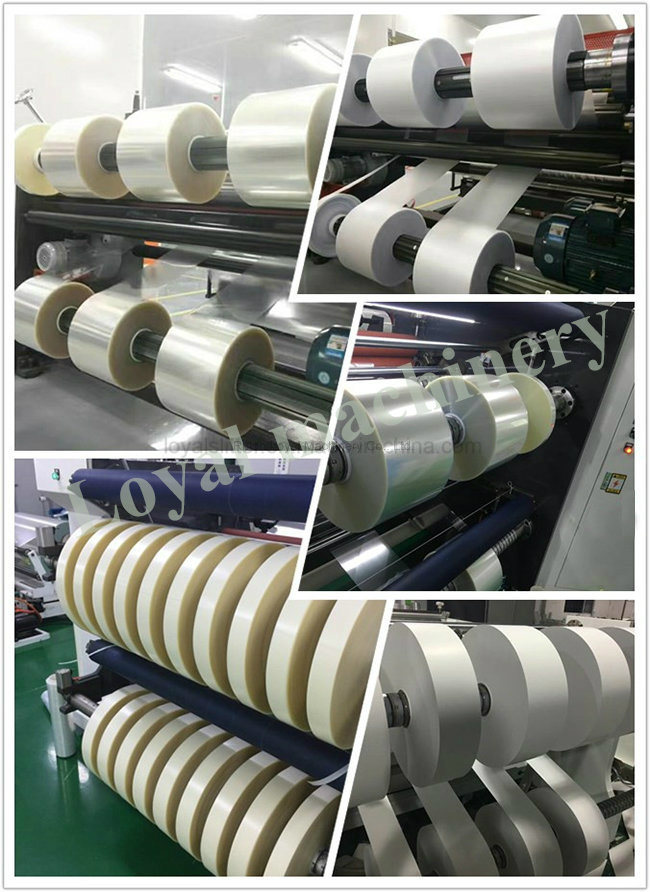

Deliver>Running in client's factory


Customers from all over the world

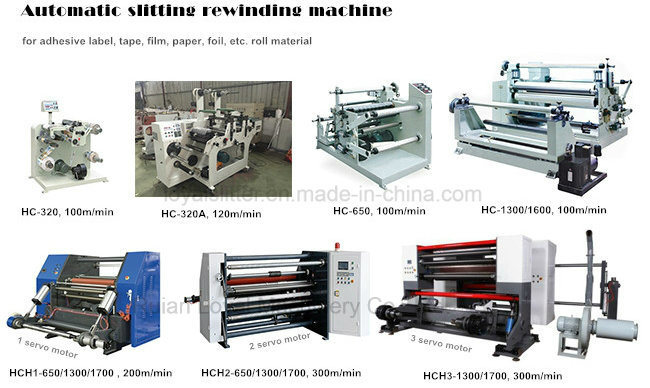

More product

FAQ

• Is your company a factory or a trading company?

We are factory!

• Where is your factory? How can I visit your company?

Our factory is located in Ruian city, Zhejiang province, China.
About 40 minutes from Wenzhou airport.
About 20 minutes from Ruian station.( 4 hours by train from Shanghai station to Ruian station )
Sincerely welcome to visit!

Contact us without hesitate! We are willing to send you in greater detail!

Celling machine
