China Hot Automatic Metal Coil Cut to Length Machine Line

Basic Info

Model NO.: TQ44K Series

Max. Speed: 60m/Min

Uncoiling Weight: 7/15t

Guarantee Period: 12 Months

Trademark: Mertal

Transport Package: Mainframe Naked, Spare Parts Packed in Case

Specification: Mertal

Origin: Nantong, China

HS Code: 8462

Product Description

STRUCTURE AND PERFORMANCE FEATURES:
1,This product line is the equipment especially for leveling and cutting thin metal boards into blocks. It is usually mado up of board-sending car, uncoiling machine, board-suporting-and-conveying equipment, main leveling machine, board-conveying bridge, direction-correcting facility, length-measuring-and-fixing equipment, film-adding facility, shearing machine, blocks-of-boardn-conveying table, pnoumatic board-vertically-lining frame, hydraulic lifting stacking table, blocks-of-boards-conveying facility,hydraulic system, electric system etc. together with PLC control system. The main units for hydraulic, pnoumatic, electric systoms and length-measuring-and-fixing systerm are world famous products.

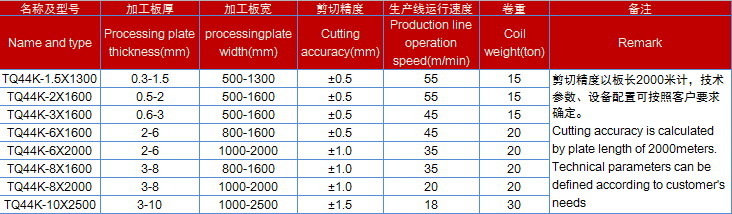

2,,This equipment is mainly used to process cold-rolled steel, colled starnless board and colled nonferrous metal boards etc. Equipped with six-high roller leveter, this line can well-level colled boards whose surfaces need advanced technology to process, and then cut the leveled boards into blocks in required length. According to the requirements of the customer, leveling can be achieved by primary or advanced leveling macahine;then shearling the levelled boards in required length can be achieved by ordinary mochanical electrical appifance togrther with digital frequency conversion technology or alternating servo technotogy; the shearing machines could be the ordinary mechanical or hydraulic>TQ44K Series NC High-speed cut-to-length line for metal sheets main technical parameters

If you have any special questions, pls contact us freely, we'll give you feedback ASAP, Thanks.
