China Hot Sale Cut to Length Line China Manufacturer

China Hot Sale Cut to Length Line

Basic Info

Production Scope: Product Line

Colour: Customized

Voltage: Customized

Size: Customized

Trademark: huafei

Transport Package: Wooden Case

Specification: customized

Origin: Jinan, China

Product Description

Thin plate cut to length line is used for metal plate coil uncoiling, leveling, set length, cutting the set size and stacking. This line used for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and other different kinds of surface plating metal.

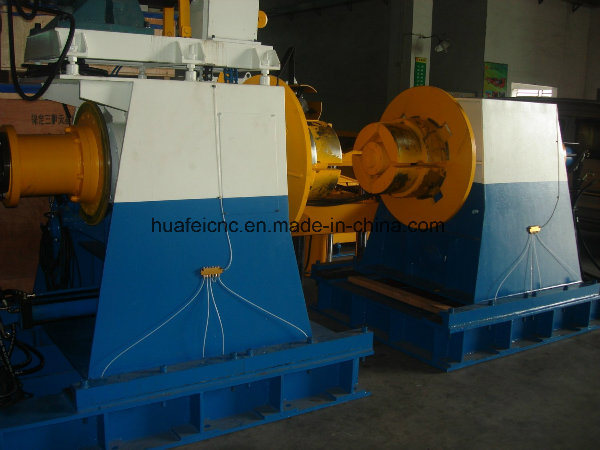

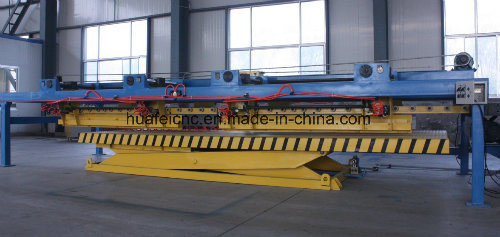

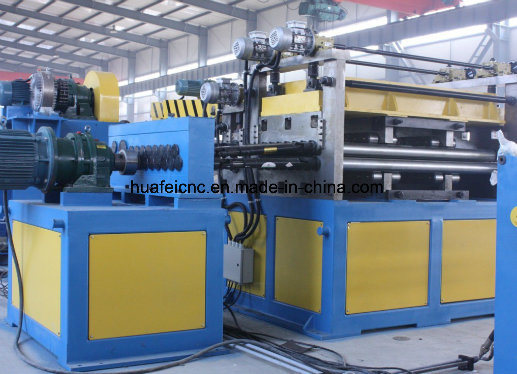

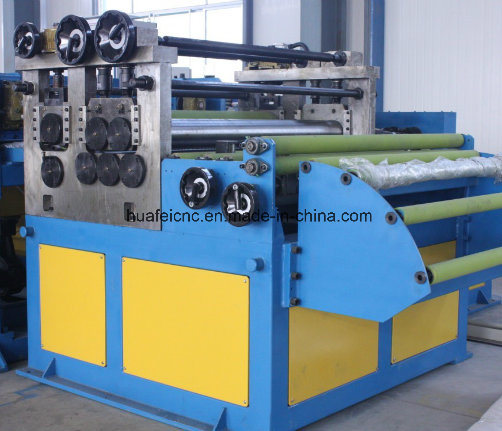

Production line is mainly composed of entry coil car, uncoiler, leveler, looping bridge, side guide, servo feeding device, shearing machine, transfer table, stacking device, etc. This line can configure trimming device.

This production line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller and Taiwan WEINVIEW touch screen to control all functions, main motor of leveler adopts AC Broadband motor, Inverter adopts Omron, which has high degree of automation, high shearing precision,stable and reliable performance, Easy operation and maintenance, etc.

MAIN TECHNICAL DATA:

Model No.

Parameter

Cutting thickness

coil width

Cutting precision/set length/mm

Cutting speed pcs/min/set length

weight

Stacking length

remark

HFCL-2?300

0.2-2

200-1300

?.5/2000

22pcs/min/2000

10T

500-2000

Technical data, configuration can according to customer requirement.

HFCL-2?600

0.3-2

200-1300

?.5/2000

22pcs/min/2000

15T

500-3000

HFCL-3?600

0.5-3

200-1300

?.5/2000

20pcs/min/2000

15T

500-3000

HFCL-3?000

0.5-3

200-1300

?.5/2000

20pcs/min/2000

15T

500-3000

HFCL-4?600

1-4

300-1600

?.5/2000

15pcs/min/2000

20T

500-4000

HFCL-4?000

1-4

300-1600

?.5/2000

15pcs/min/2000

20T

500-5000
