China Metal Corrugated Roof Roll Forming Machine Line China Manufacturer

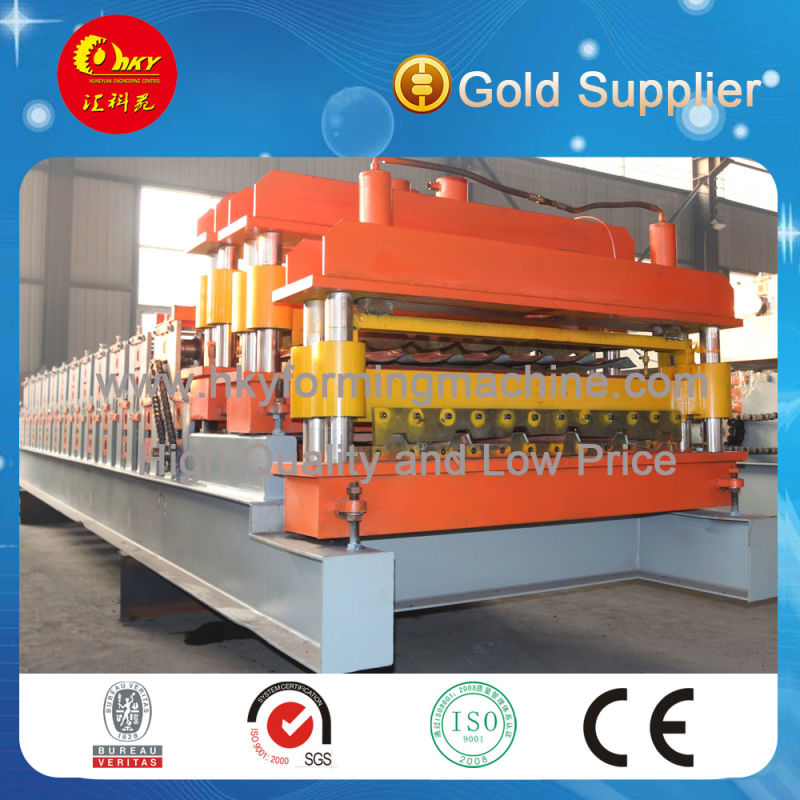

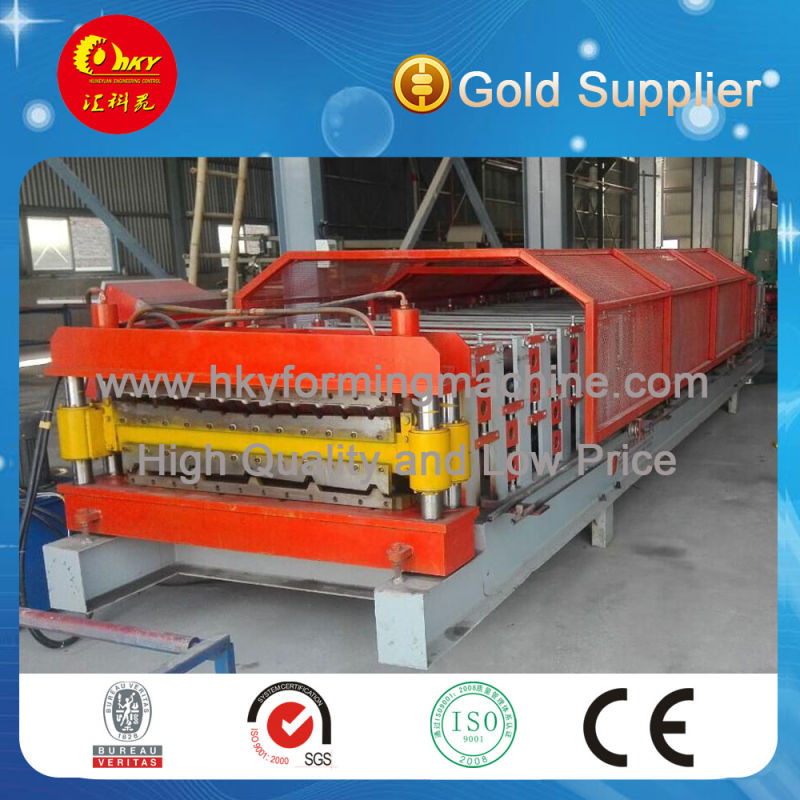

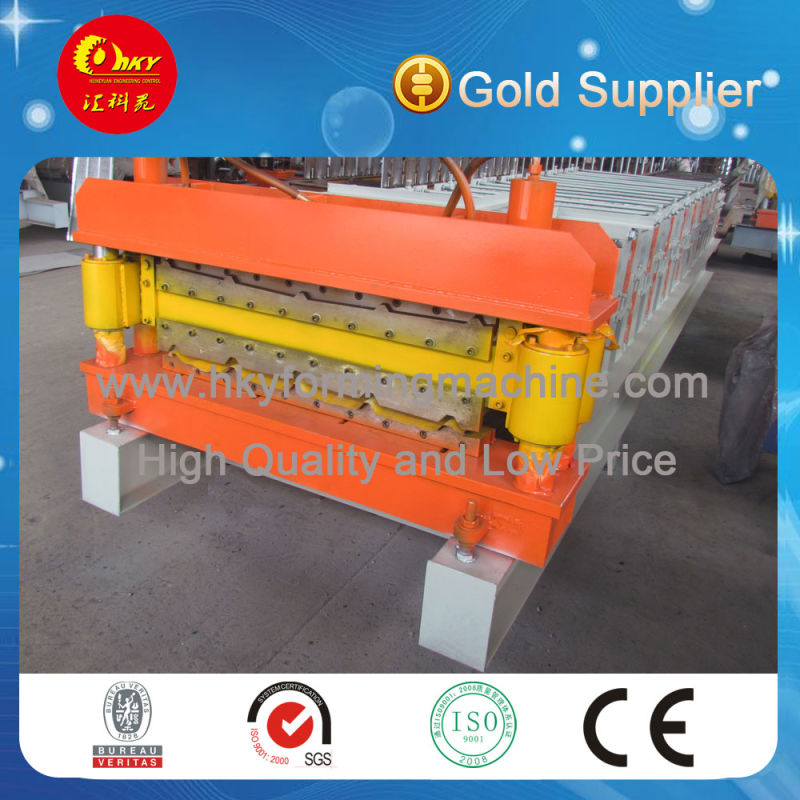

China Metal Corrugated Roof Roll Forming Machine Line

Basic Info

Model NO.: metal corrugated roof roll forming machine line

Dimension: 10.8*1.8*1.4m

Certificate: BV CE

Screen: Color Touch Screen

Motor Brand: Famous in China

Motor Power: 5.5kw

Control System: PLC Control Center

Container: 40FCL

Brand Name: Hky

Hydraulic System: 4kw

Trademark: HKY

Transport Package: Standard Export Packaging

Specification: 10.8*1.8*1.4

Origin: Hebei Botou

HS Code: 8455221000

Product Description

Technical Parameters
1. Main Motor Power: 5.5KW
2. Hydraulic Station Power: 3KW
3. Hydraulic Oil Pump: CB-E310
4. Power for the Recoiler: 3kw
5. Yield Strength: 32Mpa
6. Diameter of Principal Axis: 90mm
7. Material of Roller: 45#steel hard chrome plating
8. Processing Speed: 8m/min
9. Thickness: Up to 1.5mm
10. Installation Dimension (L*W*H): 10.8 m *1.8 m *1.4m
11. Total Weight: 5T
12. Coil Width: 1250mm
13. Equipment Parts: Manual decoiler, sheeting guiding, slitting, length measurer, cross cutting, recoiler with speed controller, computer control cabinet and counter.

We also have another kind simple slitting machine, welcome to contact us for details.

We are professional manufacturer of roll forming machine, we can also produce as per your requirement!

Ms. Sunny wang

Cel: 86-18731733932
Machine specificationElectric power5.5 kw - 7.5kw (3 phare,50hz,380 v)Weight of machine≈ 7.0 - 10 tons ( depend roofing style )Machine dimension (L x W x H)10m x 1.8m x 2.0mStation quantity17 - 30Raw materialThickness of steel0.45 mm - 0.7 mm (BMT)Width of coil762 - 1219 mmMaterialPI & PPGI (galvanize, zincalume, color coating steel)Max. strengthen of materialG300-350OutputProfile of roofingFollow customized drawingProduction specificationRolling speed20-30 m/min Control system of machinePLC , fully automatic programmableRolling transmission & Cutting systemHydraulicCutting systemAutomatic cutting by Exit cutting and entrance cutting with two encoder in rear and front. Entrance cutting use for cut to length.Tolerance of lengths?2 mmTolerance revisionSetting by Touch screenOderlength and quantityMulti-group input (ten orders)
