China Plastic Extruder Machine PVC Edge Band Extrusion Line with Slitting System China Manufacturer

China Plastic Extruder Machine PVC Edge Band Extrusion Line with Slitting System

Basic Info

• Model NO.: SJSZ-65/132
• Plastic Processed: PVC
• Feeding Mode:>
• Type: Sheet Extruder
• Product Type: Extrusion Molding Machine
• Assembly Structure: Integral Type Extruder
• Engagement System: Full Intermeshing
• Exhaust: Exhaust
• Computerized: Computerized
• Certification: Ce SGS ISO9001:2008
• Electrical Appliances: Siemens
• Electric Warranty: Six Months
• Trademark: Weier
• Specification: SJSZ-65/132
• HS Code: 84772090

Product Description

We export our machines to about 40 countries,welcome to visit us.We aim to do long term business with our clients
PVC edge band extrusion line
Video website:http://cloud.video.taobao.com/play/u/1757949571/p/1/e/6/t/1/42415748.mp4

Production line features:

1. material: ABS or PVC

2. width: 400mm,600mm, your special requirement is also welcomed

3. thickness: 0.4mm to 3mm, welcome your specific requirement

4. special size could be designed

5. color: solid color or wood grain, color could be design according to customer

color sample

6. with single output, double output, three output, and edge banding sheet output

Introduction:

1.Well made high quality single screw extruder with exclusive helical gear reducer and high

efficiency converter motors, make high speed extrusion.

2.Special screw designs, high shear stress low temperature, ensure high quality plasticization but

low break down.

3.High precise extrusion die head, high precsie 45# steel made chromed vacuum calibrating

molds, stable vacuum degree calibrating frame, uniform speed and high traction force NBR

caterpillar haul-off machine together with high quality 2-color printing machine help making

perfect PVC edge band.

4.Whole line with high degree of automation, easy to operate.

5.High quality steel materials, strict producing process make high quality line.

6.New advanced energy saving technology, lowered energy consumption.

7.Whole line with high degree of automation, using well known brand electrical components,

enhanced line stability.

8.Long time warranty, guarantee buyers from any trouble

Summary

No

item

parameter

1

Suitable resin

PVC process flow formula

2

Max.Sheet width

400mm

3

Sheet thickness

0.4-2mm adjustable

4

Capacity

Max.180-250kg/hr

5

Power supply

380V 3phase 60HZ or as per your request

6

Air consumption

80L/min

7

Water consumption

100L/min

Equipment list

NoItemQTY1

Screw loader for extruder

One set2

SJSZ-65/132 conical twin screw extruder

One set3

Hanger type mold

One set4

Electric control system

One set5

Three roller calender

One set6

Roll temperature regulator

One set7

Cooling transmission bridge

One set8

Side trimming unit

One set9

Haul off machine

One set10

Length metering machine

One set11

Gluing unit

One set12

Haul off machine

One set13

Double position winder

One set

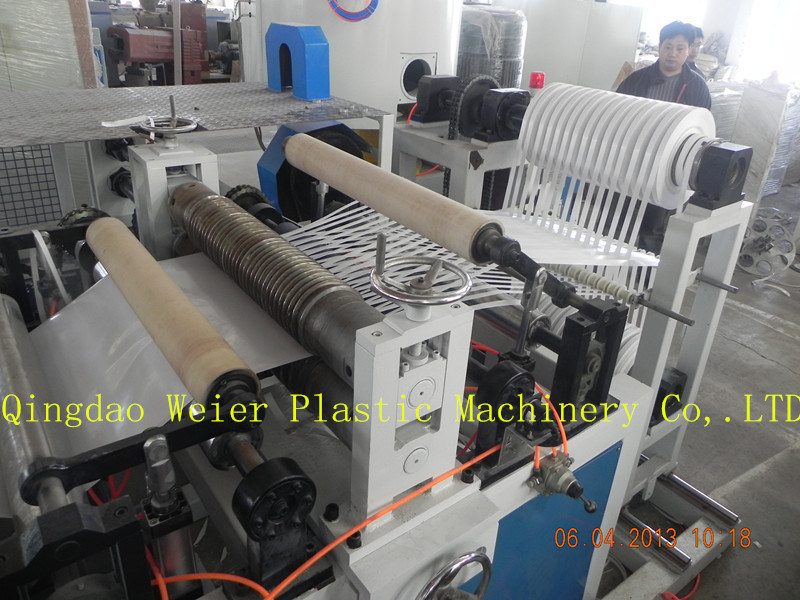

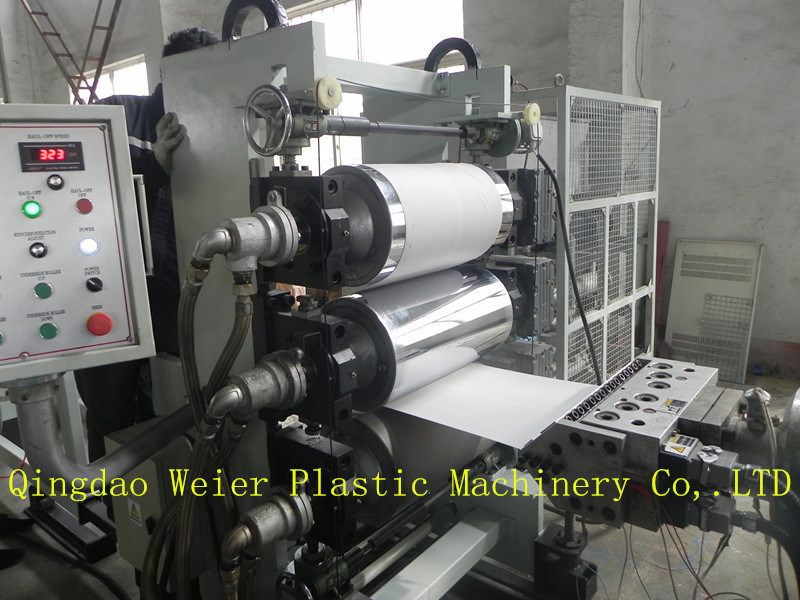

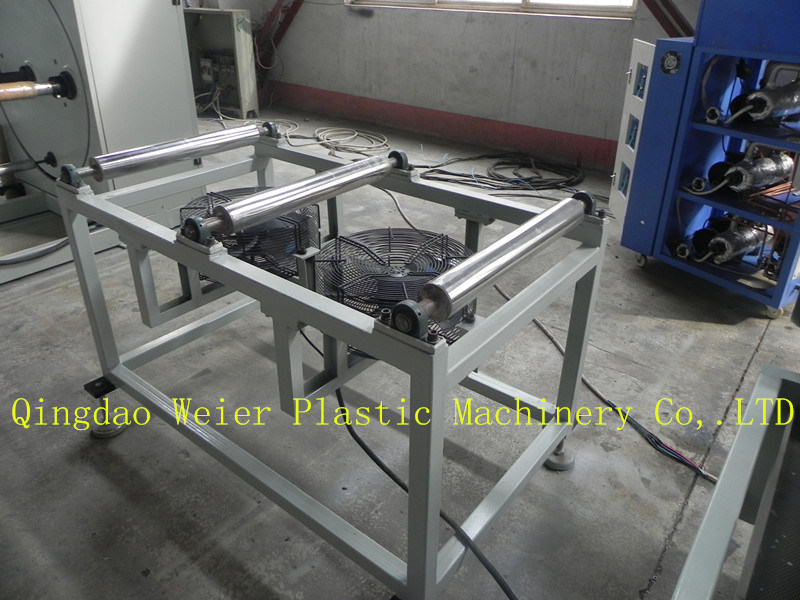

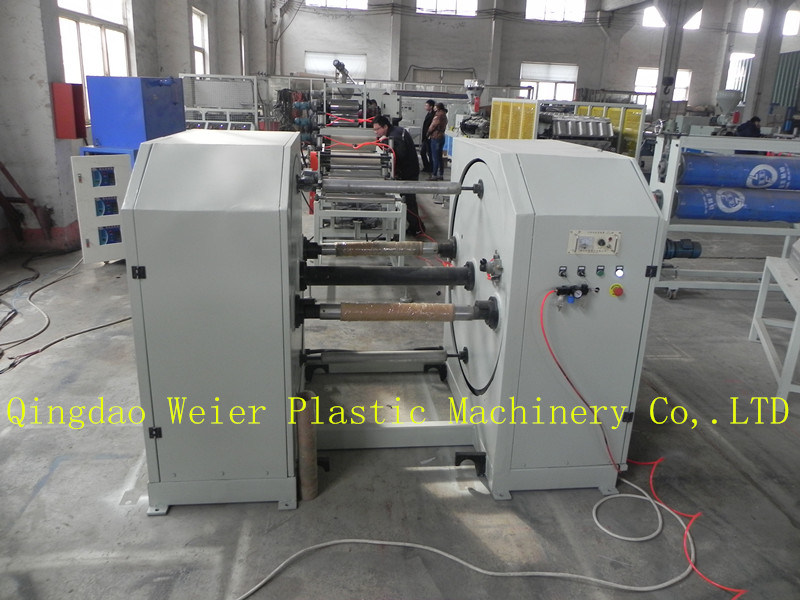

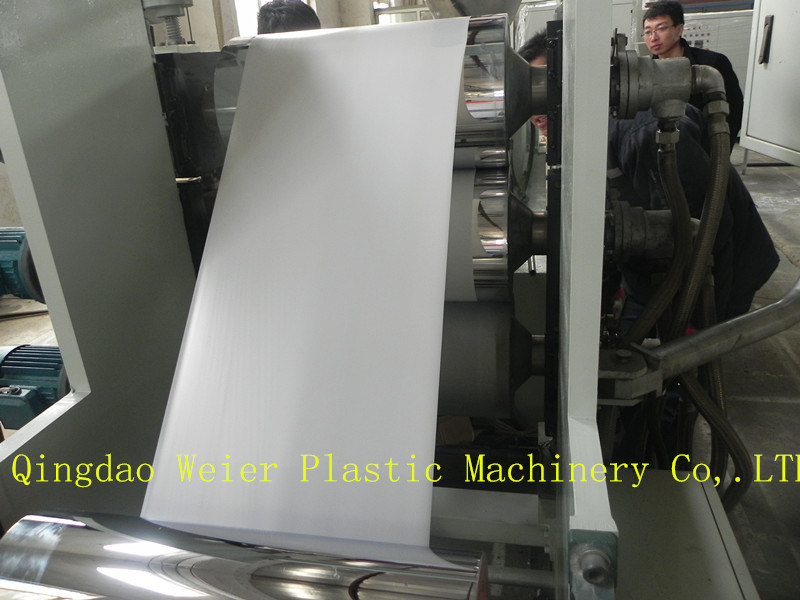

Machine pictures

More details about our services:

The supplier provide service manual and maintenance instruction of main electric appliance ,limb , usage manual of equipment We also supply water,electricity,gas of equipment and installation drawing. The supplier is responsible for installation,debug and training, we will realize guarantee of repair; replacement of substandard products within>Fittings of the machine will supply at preferential price after>The seller will send>eating ,transportation and visa fee will bepaid by the buyer ,also including 50USD salary/person /day

If anyting intertst ,please contact us at your best conve
Contact person:Victor

Phone number:0086-13705422741

' Excellent Quality and Reasonable Price ' is our company's quality policy;
' Honest Service and Win-win Cooperation ' is our company's core concept.
we offer turn key project, with lifelong after sale service!

we have ready machines in factory for your test and visit! sincerely welcome all friends to visit our factory!

Its my honour to do something for you.




