China PLC Automatic Hydraulic Cutting Line China Manufacturer
China PLC Automatic Hydraulic Cutting Line
Basic Info
Model NO.: Customized
Name: PLC Automatic Hydraulic Cutting Line
Application: Steel Cutting
Type: Fully Automatic
Color: Green
Certification: Ce ISO SGS
Width: 3600mm
Thickness: 0.2-80mm
Voltage: Three-Phrase 380V/220V
Power: Depend>Product Description

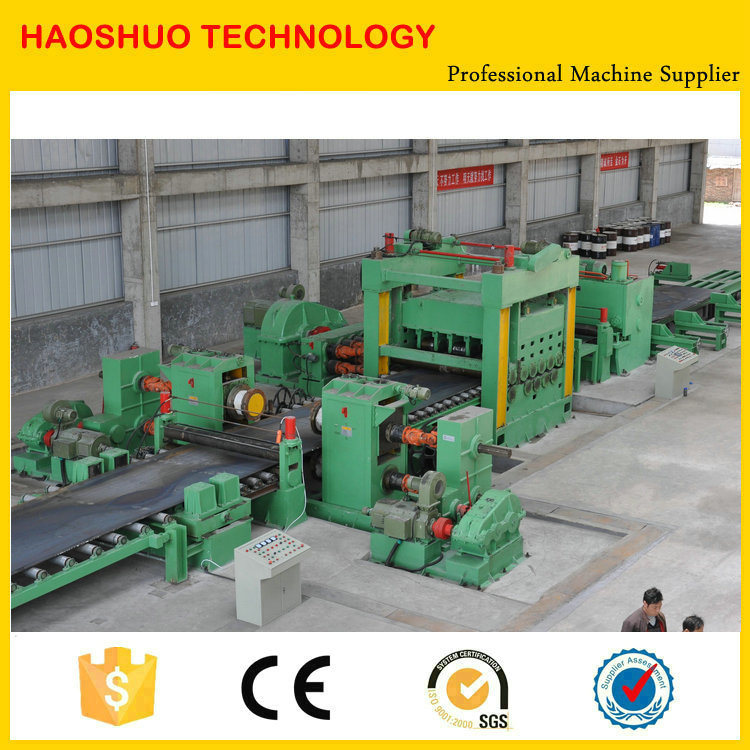

PLC automatic hydraulic cutting line
Product description

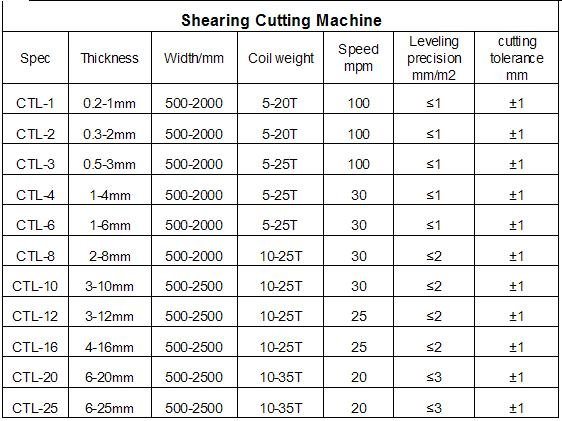

This PLC automatic hydraulic cutting line is used for leveling and cutting to length of panels. We have series of cut to length lines, with thickness from 0.2 to 80mm and width up to 3600mm.
Main components
Loading trolley
Decoiler
Guiding device
Pinch roll for feeding
Centering and calibrating device
Leveller /Straightener
Shear/Cut to length
Stacker
Unloading trolley
Use and Attention
1.Coil should be put right to keep the weight balanced. The coil car can reset>2.First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
3.Operators shall not stand>4.Do not move coil directly by hand.
5.Stop and check the machine units immediately when find fault.>6.Do not remove or change circuit. In case has problem, please consult professional technicians.
