China Precision Steel Cut to Length Line

Basic Info

Model NO.: JTXE-LL-300

PLC: Mitsubishi, or Siemens

Certificate: ISO

Warranty: 1 Year

After-Sell Service: Yes

Trademark: XIEER

Transport Package: Seaworthy Packing

Specification: 14*2.5m

Origin: Jiangyin

HS Code: 84623920

Product Description

JTXE-LL-300 Cut to Length Line
Cut to Length Line Process Introduction

Two cutting two punching silicon steel cut to length line(ordinary type),the CNC traverse cutting line of two cutting and two punching is full electric cutting line. It can process the side of the transformer steel core, yoke, medium column piece through safe, efficient and accurate. It's especially suitable for the production of dry type transformer core with hole.

Cut to Length Line Equipment Composition
1) single-head hydraulic material rack
2) non pit slope guide device
3) sending material equipment
4) punching machine
5) cutting machine
6) conveyor
7) simple seperating device
8) pneumatic system
9) electric cabinet and operation platform

Parameters
1,Precision high speed cut-to-length linenonstop cutting
Two cutting two punching(ordinary type)Model NameJTXE-LL-300JTXE-LL-400Cutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)1516.5
Two cutting two punching(advanced type)Model NameJTXE-LL-300ZJTXE-LL-400ZCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)2021.5
2,Precision high speed cut-to-length line nonstop cutting
Two cutting>Model NameJTXE-X-300JTXE-X-400JTXE-X-600Cutting Thickness(mm)0.23-0.350.23-0.350.23-0.35Cutting Width(mm)40-30040-40060-600Cutting Length(mm)350-9999350-9999350-9999Feeding Speed(m/min)180180180Cutting Burr(mm)≤0.02≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025?.025Cutting Length Accuracy(mm)?.1?.1?.1Total Motor Power(KW)1213.513.5

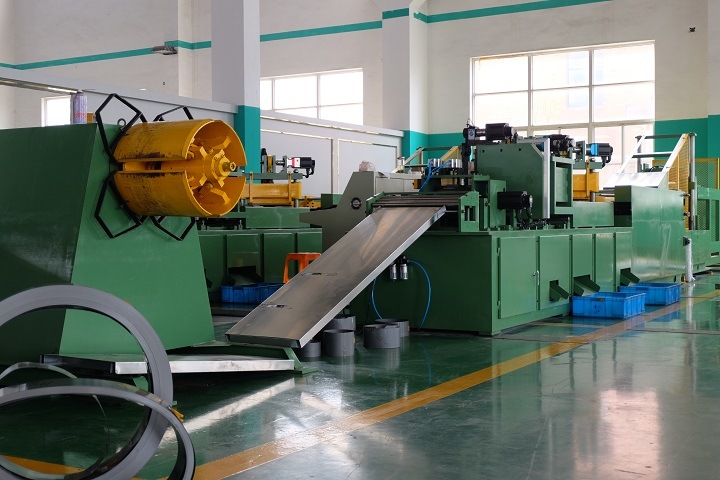

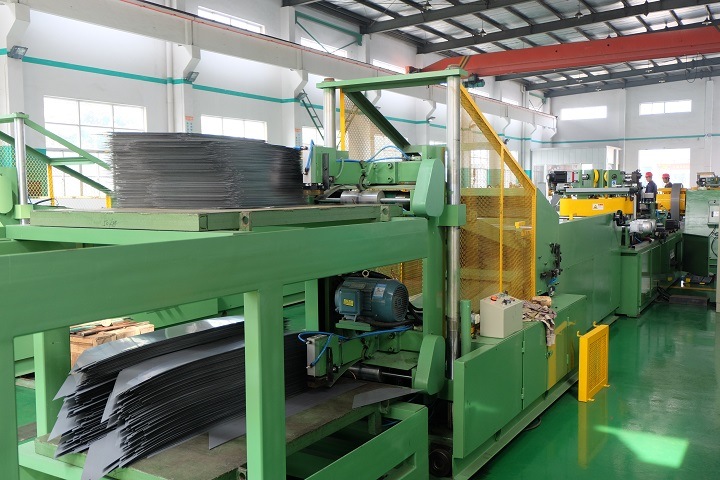

Cut to Length Line Machine Pictures

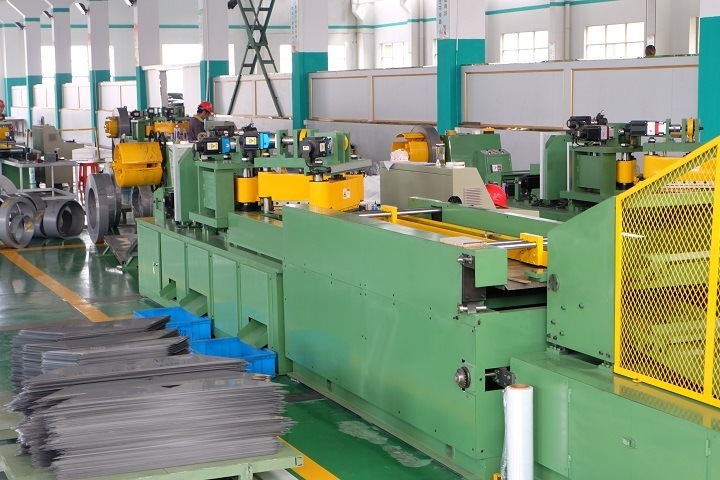

Two cutting two punching

Cut to Length Line Certificate

Cut to Length Line Packaging
