China Semi-Automatic CRGO Cut to Length Line China Manufacturer
China Semi-Automatic CRGO Cut to Length Line
Basic Info
Model NO.: Customized
Material: Metal
Power: 22kw
Trademark: HAOSHUO
Transport Package: Sea Shipping by Container
Specification: customized
Origin: Wuxi, China
HS Code: 84552290
Product Description

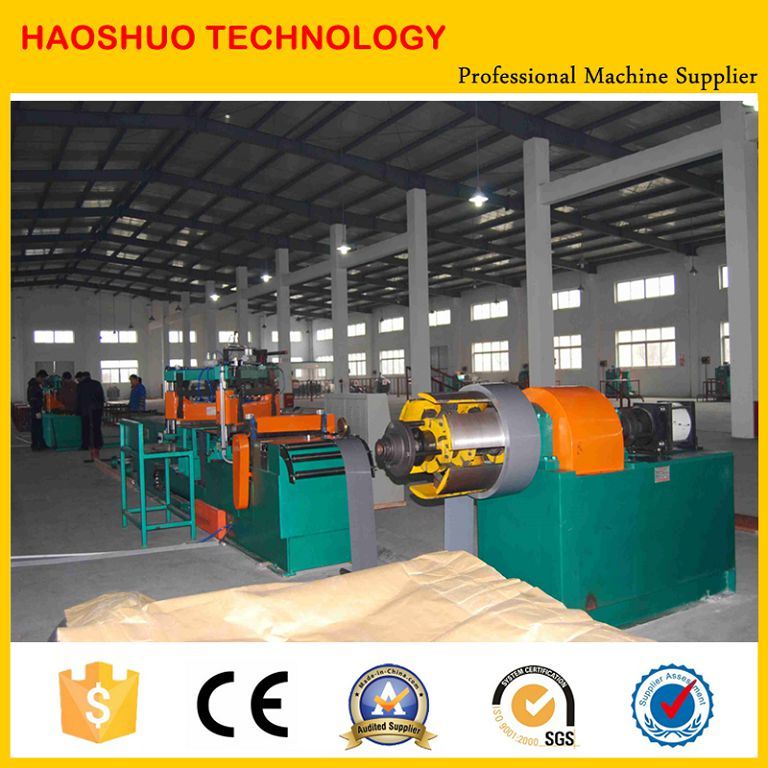

SEMI-AUTOMATIC CRGO CUT TO LENGTH LINE
Product description
This line has two cutters,>Item
BHJ 400
BHJ 500
BHJ 600
Silicon steel thickness
0.23-0.5mm
Strip width
40-400
40-500
60-600
Suitable coil ID
460-520mm, or as per your requirement
Length tolerance
?.2mm
Cutting burr
Max 0.02mm
Productivity
If L=1000mm, about 28 pcs/min
Cutting angle tolerance
≤0.5?1000mm
Blade material
YG20 hard alloy
Total line length
10.5m
10.5m
18.5m
Main components
VF automatic decoiler, pneumatic expansion
VF feeder, No. 1 shear(45?, No. 2 shear (135?or 90?
Product receiving table
Lifting trolley
PLC Control cabinet
Our service
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support
