China Silicon Steel Coil L Slitting Line China Manufacturer

China Silicon Steel Coil L Slitting Line

Basic Info

Model NO.: JT1250

Installed Power: 55kw

PLC: Mitsubishi, or Siemens

Certificate: ISO

Warranty: 1 Year

Transport Package: Seaworthy Packing

Specification: 12.6m*6.5m

Origin: Jiangyin

HS Code: 84623910

Product Description

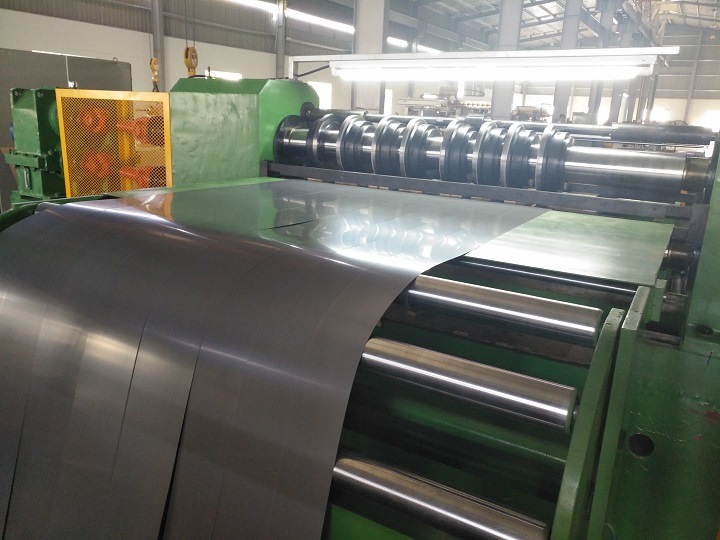

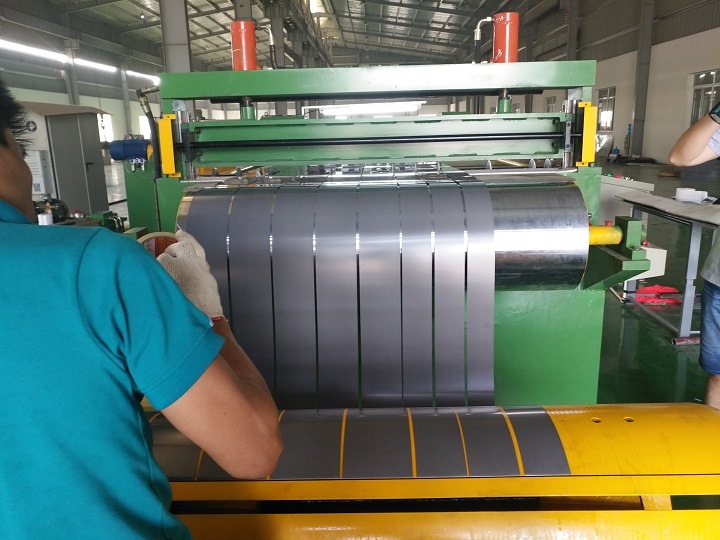

JT1250 Silicon Steel Slitting Line
Slitting Line Process Introduction

The JT1250 silicon sreel slitting line can cut the silicon steel coils into a certain width of silicon steel band, and then recoil the band into small coil for further use. It is widely used in electrical appliance, motor, building material, packaging and precision slitting of other metal.

Slitting Line Equipment Composition
1) electric material feeding trolley
2) hydraulic harmomegathus material rack

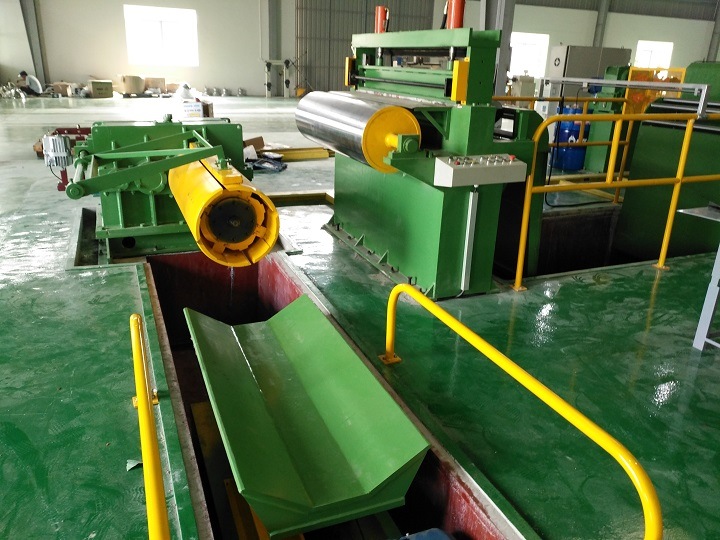

3) buffer pit
4) material picking device
5) activity guide device
6) slitting line main euipment
7) picking material intermediater bridge
8) expanding device

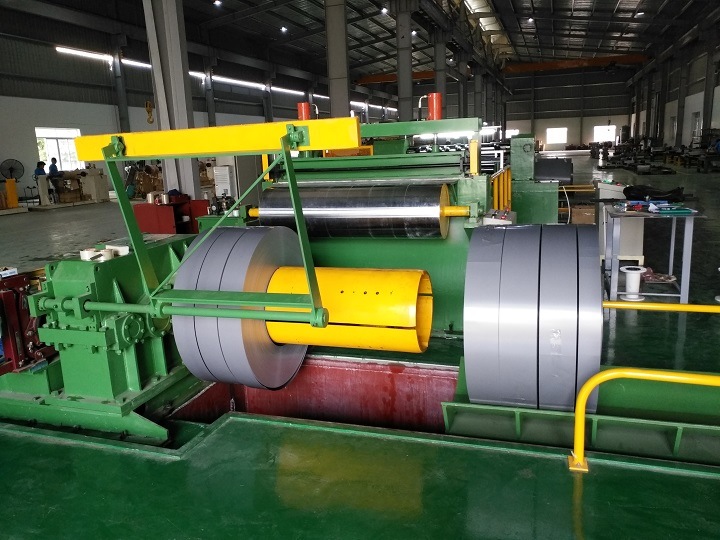

9) hydraulic harmomegathus rolling equipment
10) electric unloading trolley
11) hydraulic station and air system
12) electric cabinet and operation platform

Slitting Line Parametersapplication materialsilicon steelmaterial thickness0.23-0.5mmmaterial width40-1200mmcoil inner diameterφ500mmcoil weight5twhole line weight20tcutting speed80-120m/minmax number of bands13cutting width tolerance?.1mmunilateral nonstraightness0.1mm/mcutting angle accuracy?.025slitting line layout≈12.6*6.5m
