China Silicon Steel Coil Straighting and Leveling Cut to Length Line

Basic Info

Model NO.: Customized

Material: Metal

Power: 22kw

Trademark: HAOSHUO

Transport Package: Sea Shipping by Container

Specification: customized

Origin: Wuxi, China

HS Code: 84552290

Product Description

silicon steel coil straighting and leveling cut to length line

Product description

1.This silicon steel coil cutting line can cut automatically silicon steel coil to certain length with various shapes. It is necessary production equipment in transformer manufacturing.
2.The silicon steel cut to length line can be suitable for cutting series of silicon pieces, which are used for transformer core lamination. For example, it can do 45 degree and 135 degree shear. It also can shear from transverse and longitudinal angle. This silicon steel cut to length line can make V notches and punch holes.

ParameterHJX-400,600Width of Sheet(mm)40-440,660Length of Sheet(mm)300-3000Thickness of Sheet(mm)0.20-0.35Feeding Speed(m/min)0-240Accuracy of Cutting Length(mm)?.10Accuracy of Cutting Angle(??.025Cutting Burr(mm)≤0.02Installed Power(kw)as per need

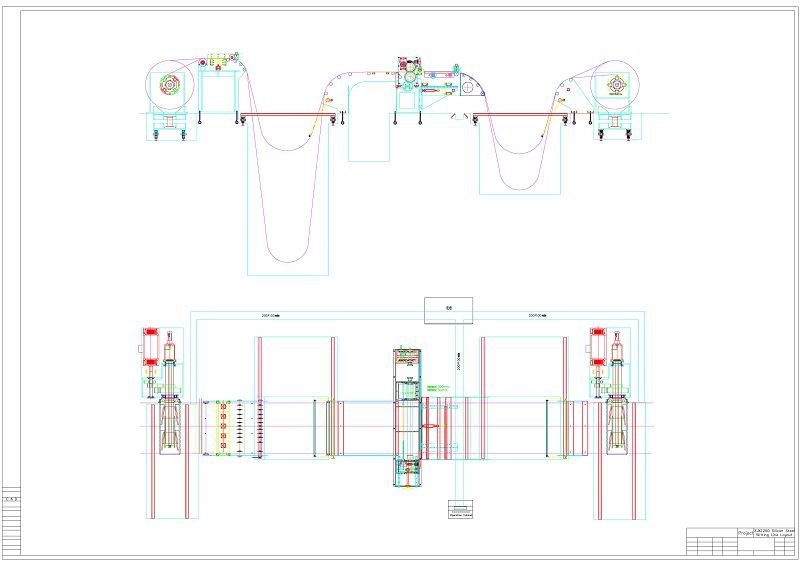

Main components
1.Double Head Decoiler
2.Servo Feeder
3.V-shaped Punch
4.Shears 1
5.Shears 2
6.Discharge Units(Belt)
7.Stacking Table
8.Controlling System

Working process

Coil decoiling - Speed adjusting - servo feeding for length measuring - servo positioning pneumatic V notching - pneumatic hole punching - -45 degree pneumatic shearing - 45 degree pneumatic shearing - servo track positioning - work pieces feeding & collecting - automatic product stacking

Our service
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support
