China Silicon Steel Cutting Line China Manufacturer

China Silicon Steel Cutting Line

Basic Info

Model NO.: JTXE-ZZ-400Z

PLC: Mitsubishi, or Siemens

Certificate: ISO

Warranty: 1 Year

After-Sell Service: Yes

Trademark: XIEER

Transport Package: Seaworthy Packing

Specification: 8*2.5m

Origin: Jiangyin

HS Code: 84623920

Product Description

JTXE-ZZ-400Z Cut to Length Line
Cut to Length Line Process Introduction
Center piece silicon steel cutting is the special equipment of processing transformer iron core, and can process transformer iron core equilateral step-lap core column, eccentric step-lap core column, and the eccentric angle can be adjusted.

Cut to Length Line Equipment Composition

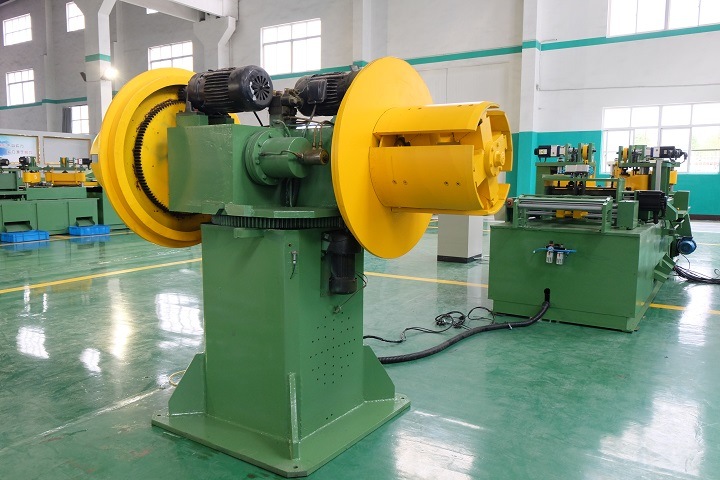

1) two-head hydraulic material rack
2) non pit slope guide device

Parameters
1,Precision high speed cut-to-length linenonstop cutting
Two cutting two punching(ordinary type)Model NameJTXE-LL-300JTXE-LL-400Cutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)1516.5
Two cutting two punching(step type)Model NameJTXE-LL-300ZJTXE-LL-400ZCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)2021.5
Two cutting two punching(centralized positioning)Model NameJTXE-LL-400ZXJTXE-LL-600ZXCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-40060-600Cutting Length(mm)350-9999350-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)2426
Center Post Silicon Steel Cut to Length Line(step type)Model NameJTXE-ZZ-300ZJTXE-ZZ-400ZCutting Thickness(mm)0.23-0.350.23-0.35Cutting Width(mm)40-30040-400Cutting Length(mm)150-9999150-9999Feeding Speed(m/min)180180Cutting Burr(mm)≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025Cutting Length Accuracy(mm)?.1?.1Total Motor Power(KW)1414

2,Precision high speed cut-to-length line nonstop cutting
Two cutting>Model NameJTXE-X-300JTXE-X-400JTXE-X-600Cutting Thickness(mm)0.23-0.350.23-0.350.23-0.35Cutting Width(mm)40-30040-40060-600Cutting Length(mm)350-9999350-9999350-9999Feeding Speed(m/min)180180180Cutting Burr(mm)≤0.02≤0.02≤0.02Cutting Angle Accuracy DEG?.025?.025?.025Cutting Length Accuracy(mm)?.1?.1?.1Total Motor Power(KW)1213.513.5

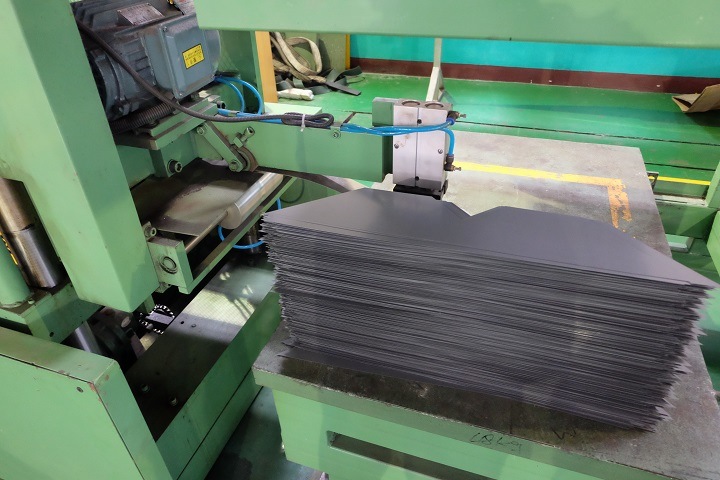

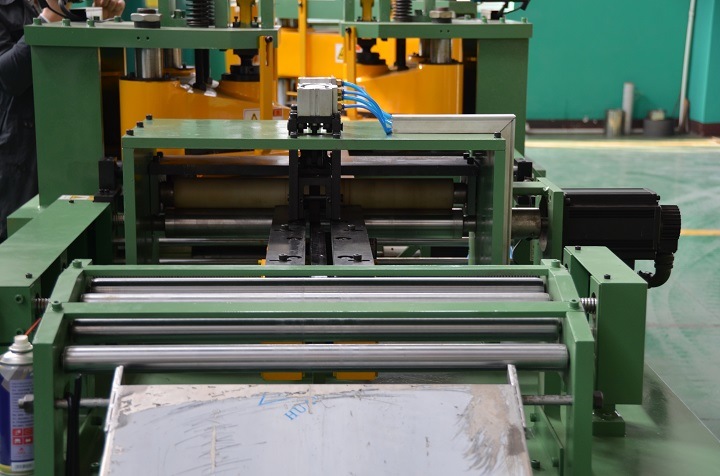

Cut to Length Line Working Process

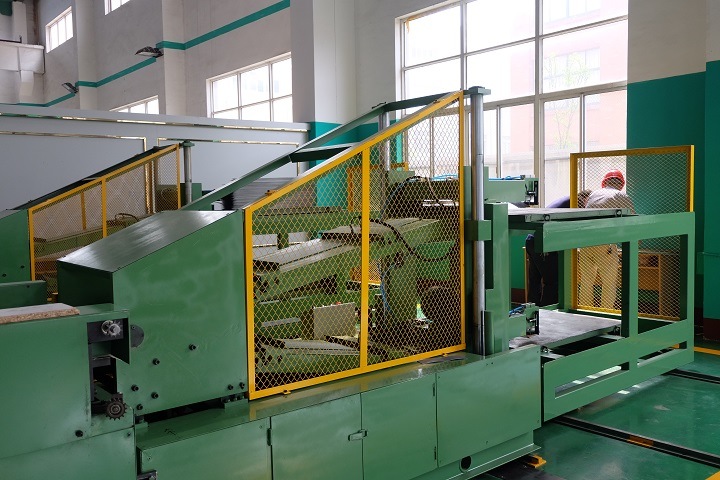

Two cutting two punching(centralized positioning)

Cut to Length Line Certificate

Cut to Length Line Packaging
