China Silicon Steel Slitting Line for Transformer Lamination

Basic Info

Model NO.: silicon steel slitting

Thickness: 0.23-0.35mm

Width: Customized

Speed: 0-80-120m/Min

Trademark: HAOSHUO

Transport Package: Sea Shipping by Container

Specification: customized

Origin: Wuxi, China

HS Code: 84552290

Product Description

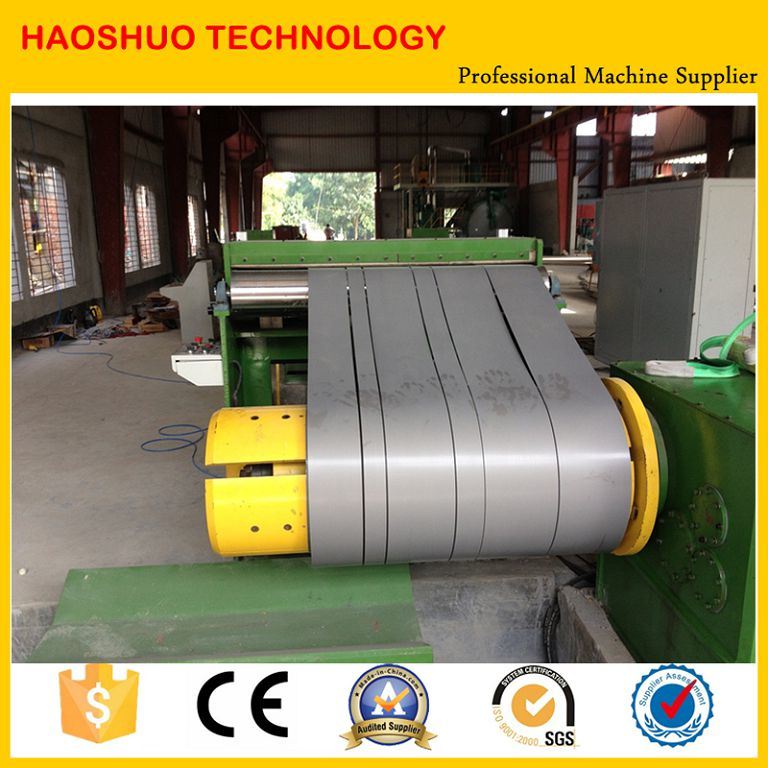

silicon steel slitting line for transformer lamination

Product description

1. This slitting line is used for slitting silicon steel coils or CRGO coils. Silicon steel slitting line is necessary equipment in the manufacturing of transformer industry and related electric industries.
2. The slitting thickness of automatic steel coil slitting machine ranges from 0.23mm to 0.5mm.
3. The suitable width for this slitting line is from 1000mm to 1250mm.
4. The silicon steel slitting line has high precision and high working speed. And its slitting speed can reach 60m/min and the strip precision can be up to 0.1mm.

Model

ZJX1000

ZJX1250

Coil thickness

Silicon steel 0.23-0.35mm

Max width of coil

1000mm

1250mm

Slitting speed

0-80-120m/min

Slit width

Min 20mm

Width precision

?.1mm

Edge linear straightness

?.1mm/m

Strip burr

Less than 0.02mm

Coil weight

5tons

10 tons

Main components

1.Coil car for coil loading

2.Hydraulic DC powered decoiler

3.Coil sheet feeding system

4.Slitter (VF speed controlling)

5.Tensioning system

6.Hydraulic DC powered recoiler

7.Coil car for discharging

8.Controlling cabinet

Working process

coil loading - decoiling - guiding - slitting - tensioning - recoiling - discharging

Our service

One stop service for customized machine

Overseas installation & operating training

One year warranty of the whole machine

Life-long technical support
