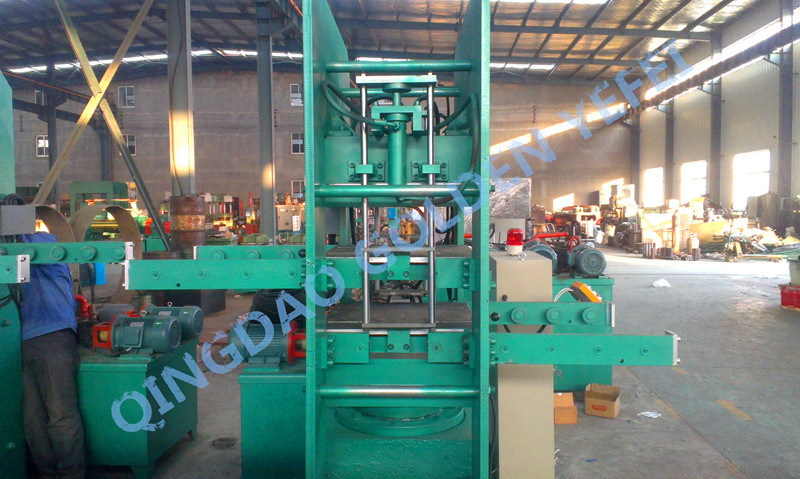

China Slab Side Vulcanizing Press Rubber Vulcanizer Machine

Basic Info

Model NO.: XLB-Q4100*700*4

Plate Size: 4100*700mm

Plate Clearance: 150mm

Piston Diameter: 400mm

Piston Stroke: 500mm

Power: 11*2 15kw

Control Mode: Automatic PLC Control

Delivery Time: 30 Days

Warranty: 2 Years

Trademark: Yefei

Transport Package: Exporting Standard(Wooden Box Packing)

Specification: all various

Origin: Qingdao, China

HS Code: 8477800000

Product Description

1. Brief introduction

1. Slab side structure, matched with auto mold ejecting device
2. Steam heating
3.3 layers, each layer can produce 2 tire tread at a time
4. Apply to retreading the tire under 12.00-20

Advantage

1. We are 100% manufacturer
2.26 years experiences
3. ISO9000 produce standard
4. CE certificated
5. National PATENT
6. Advanced making machine
Data/Model

XLE-Q4100X
360X5

XLE-Q550X
360X5

XLE-Q4100X
700X4

XLE-Q11000X
400X5

Total pressure (MN)

6.00

8.00

12.00

26.00

Plate size L*W (mm) :

4100X360

5500X360

4100X700

11000X400

Daylight opening (mm):

200

150

200

Working layer:

Diameter of cylinder (mm)

250

400

360

Number of cylinder (sets)

Max. stroke of cylinder (mm)

800

500

800

Max. pressure of hydraulic system (Mpa):

20.5

21.5

11*2 15

Motor power (kw):

7.5

21.5

Overall size L*W*H (mm):

5470*2280*3285

7600*2700*3100

6690*2410*3345

15500X3400X4200

Weight (kg)

26000

45000

48000

132000

The curing press mainly works for clampdown the rubber ,which can be used as normal hydraulic machine .

1.Material of steel plate:

We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel

2.Weldment of frame : world technique

Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
Submerged arc welding, VSR treatment after weldment.
3.Piston:

The material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.

4.Heating way&precision temperature control:

Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity) range of temperature:0-300癈 (can be adjustment if you need 400 癈 ,we can do it )
Plate temperature tolerance: ?.1癈 (very precise)other factory just is ?癈
Also we can produce the machine with water cooling system.

5.Hydraulic system: (PLC control)

The professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.

Our packing way :Export standard (wooden package ) or according to your requirement .

Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.

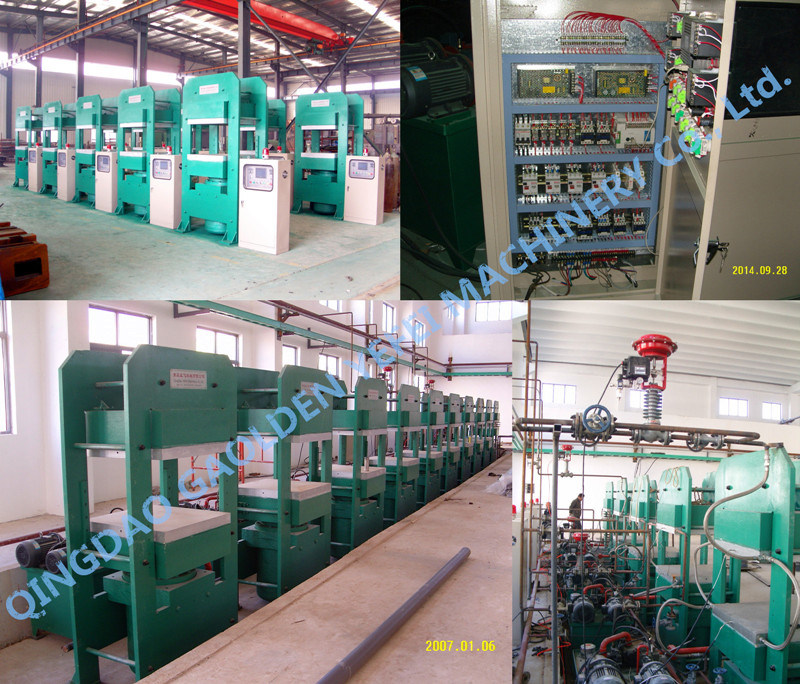

2 .Our service department listen to customers' feedback at any time and provide spare parts timely.Welcome to visit our factory and we can show you the machine in working condition:

If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
